Product Specification
|
|
Overview
|

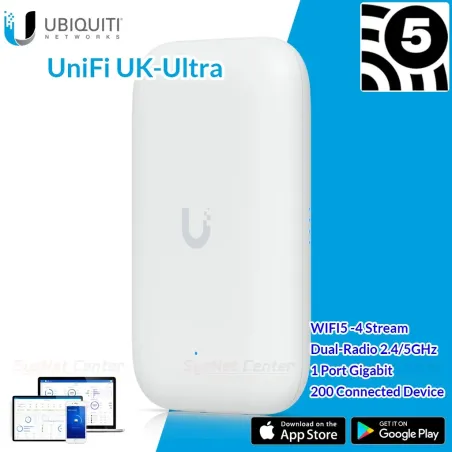

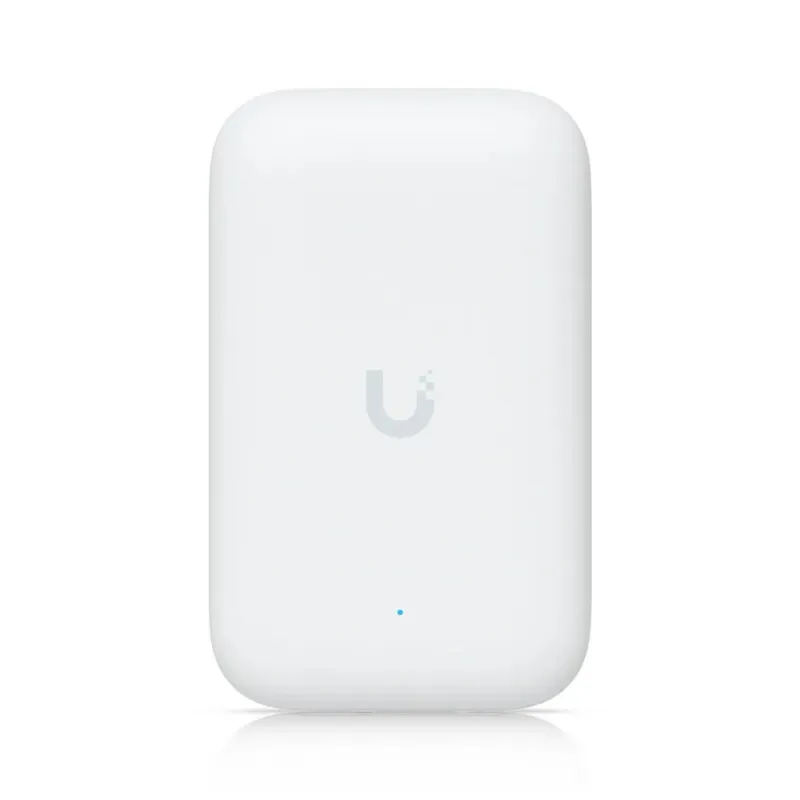

Ubiquiti Unifi UK-Ultra Swiss Army Knife Access Point WIFI-5 ac 2x2 MU-MIMO รองรับ Channel-Width 80MHz, ร, ความเร็วสูงสุด 1.66Gbps สามารถต่อเสาอากาศภายนอกได้
|
Mechanical
|
|

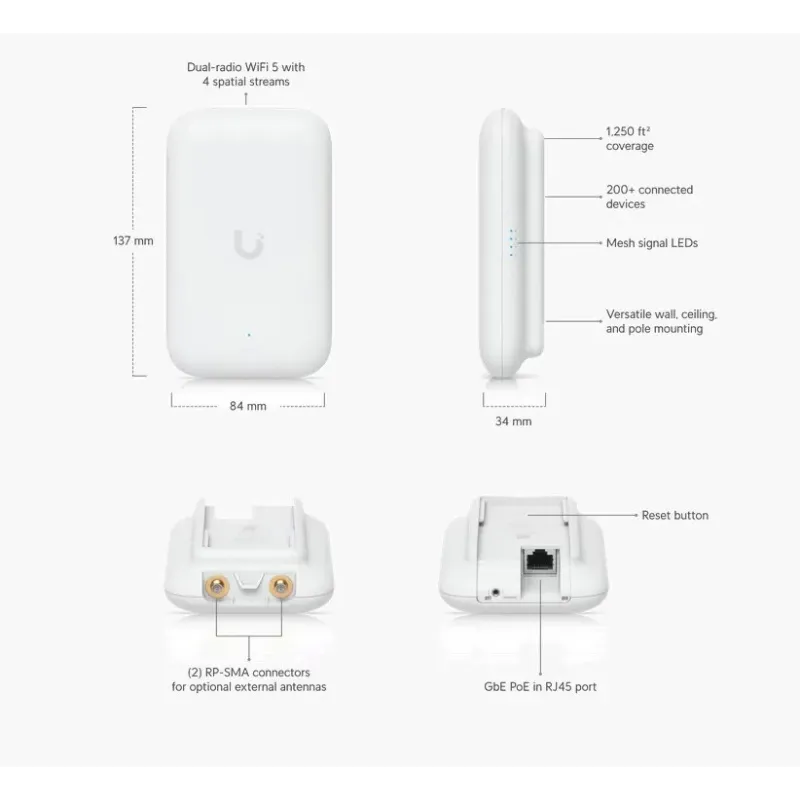

| Dimensions |
137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| Weight |
173 g (6.1 oz) |
| Enclosure material |
UV-stabilized polycarbonate |
| Mount material |
Polycarbonate, SGCC steel, plastic |
| Pole mount diameter |
1~2" on pipe outer diameter |
| Wind survivability |
33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Weatherproofing |
IPX6 |
Hardware
|
|
| Networking interface |

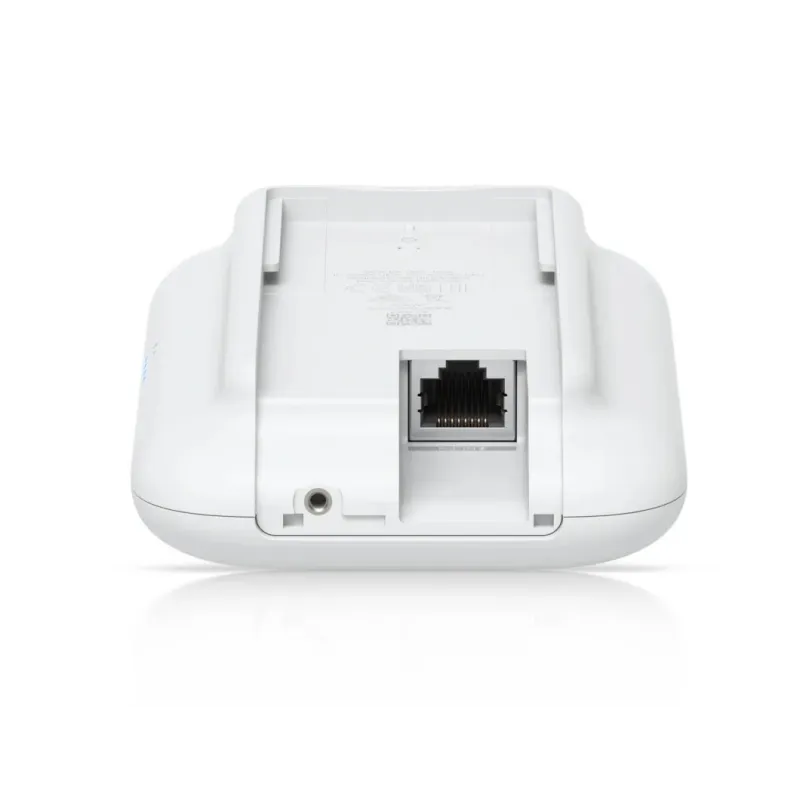

(1) GbE RJ45 port |
| Management interface |
Ethernet |
| Power method |
PoE |
| Power supply |
UniFi PoE Switch |
| Supported voltage range |
44-57V DC |
| Max. power consumption |
8W |
| Max. TX power2.4 GHz5 GHz6 GHz |
20 dBm20 dBm- |
| MIMO2.4 GHz5 GHz6 GHz |
2 x 2 (DL MU-MIMO)2 x 2 (DL MU-MIMO)- |
| Throughput rate2.4 GHz5 GHz6 GHz |
300 Mbps (BW40)866.7 Mbps (BW80)- |
| Antenna gain2.4 GHz5 GHz6 GHz |
4.7 dBi6.1 dBi- |
| Antenna |

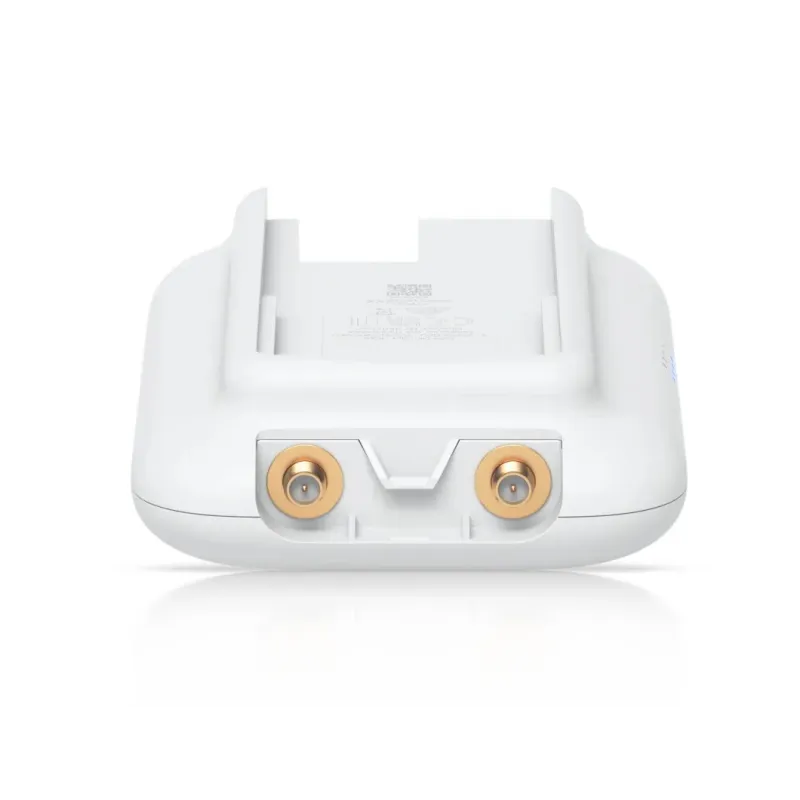

(1) Internal antenna(2) RP-SMA connectors for optional external antennas |
| LEDs |
(1) Power: white/blue(4) Mesh signal: blue |
| Button |
Factory reset |
| Mounting |

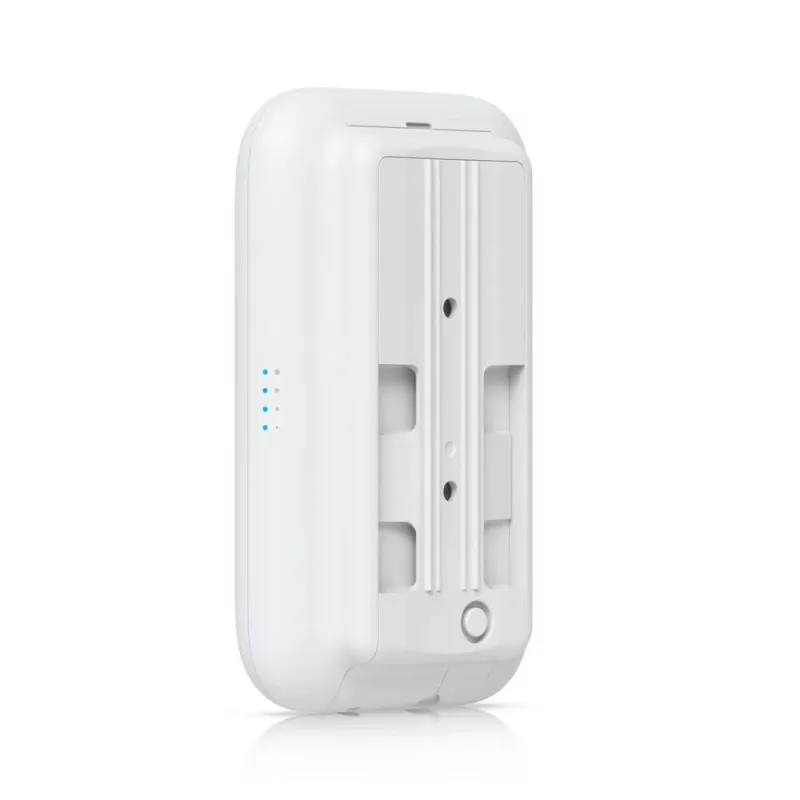

Wall, ceiling, pole (Included) |
| Ambient operating temperature |
-40 to 60° C (-40 to 140° F) |
| Ambient operating humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC |
Software
|
|
| WiFi standards |
802.11a/b/g/n/ac |
| Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID |
8 per radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest traffic isolation |
Supported |
| Concurrent clients |
200+ |
Supported Data Rates
|
|
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac |
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
Application Requirements
|
|
| UniFi Network |
Web: Version 8.0.7 and later
iOS™: Version 10.11.1 and later
Android™: Version 10.10.1 and later |
|
รับประกัน
|
2 ปี
|
