Product Specification |

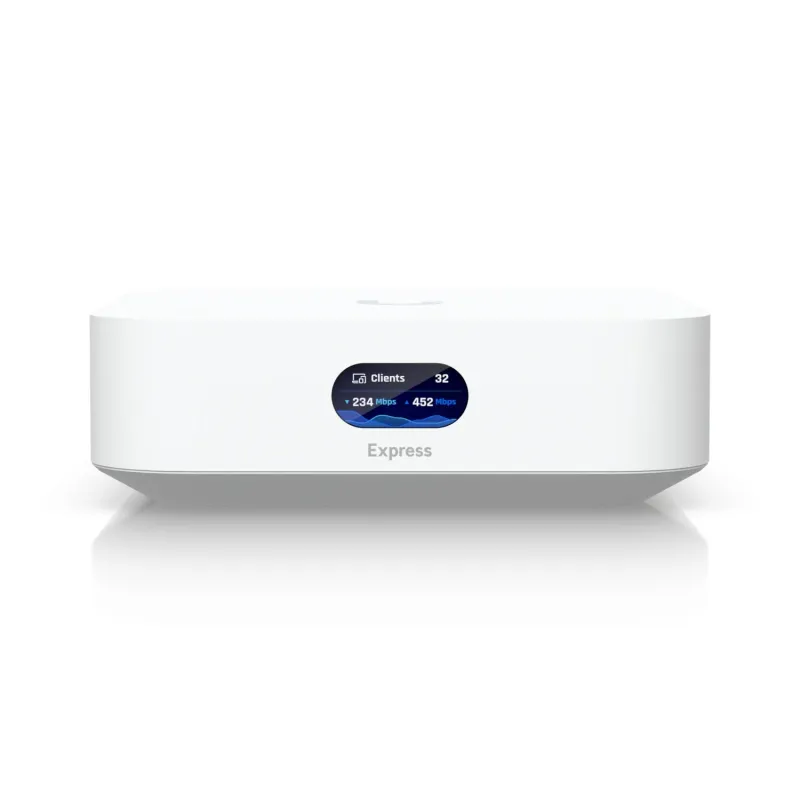

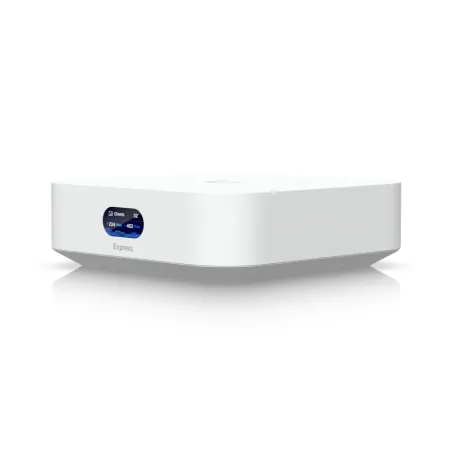

Overview | Ubiquiti UX UniFi Express UniFi Gateway 1 WAN, 1 LAN พร้อม Access Point WIFI6, รองรับ SD-WAN, Inter-VLAN, VPN WireGuard, L2TP |
Mechanical |

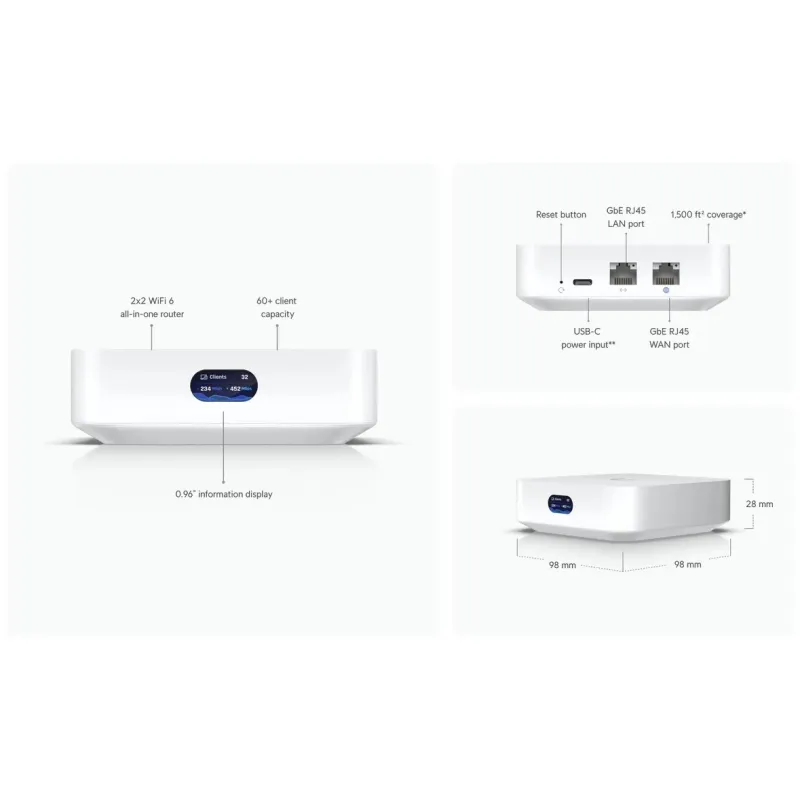

Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
Weight | 302 g (10.7 oz) |
Enclosure material | Polycarbonate |
Hardware |
Management interface | Ethernet
Bluetooth |
Networking interface | LAN:
(1) GbE RJ45 port
WAN:
(1) GbE RJ45 port |
Power method | USB type C (5V DC/3A) |
Max. power consumption | 10W |
| Max. TX power | 2.4 GHz : 22 dBm
5 GHz : 25 dBm |
MIMO | 2.4 GHz : 2 x 2 (DL/UL MU-MIMO)
5 GHz : 2 x 2 (DL/UL MU-MIMO) |
Throughput rate | 2.4 GHz : 573.5 Mbps
5 GHz : 2.4 Gbps |
Antenna gain | 2.4 GHz : 4 dBi
5 GHz : 5.15 dBi |
Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna |
LCM display | 0.96" status display |
Button | Factory reset |
Ambient operating temperature | -10 to 45° C (14 to 113° F) |
Ambient operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Gateway Features |
Performance | Internet quality and outage reporting |
Next-generation security | Application-aware firewall rules
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
Advanced networking | License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support |
Software |
WiFi standards | 802.11a/b/g/n/ac/ax |
Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | Gateway mode: 3 per radio
Standard AP: 4 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Concurrent clients | 50+*
*Performance may be degraded with advanced gateway features (e.g., Traffic Identification). |
Supported Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160 |
Application Requirements |
UniFi Network | Version 8.0.7 and later |
รับประกัน | 1 ปี |
