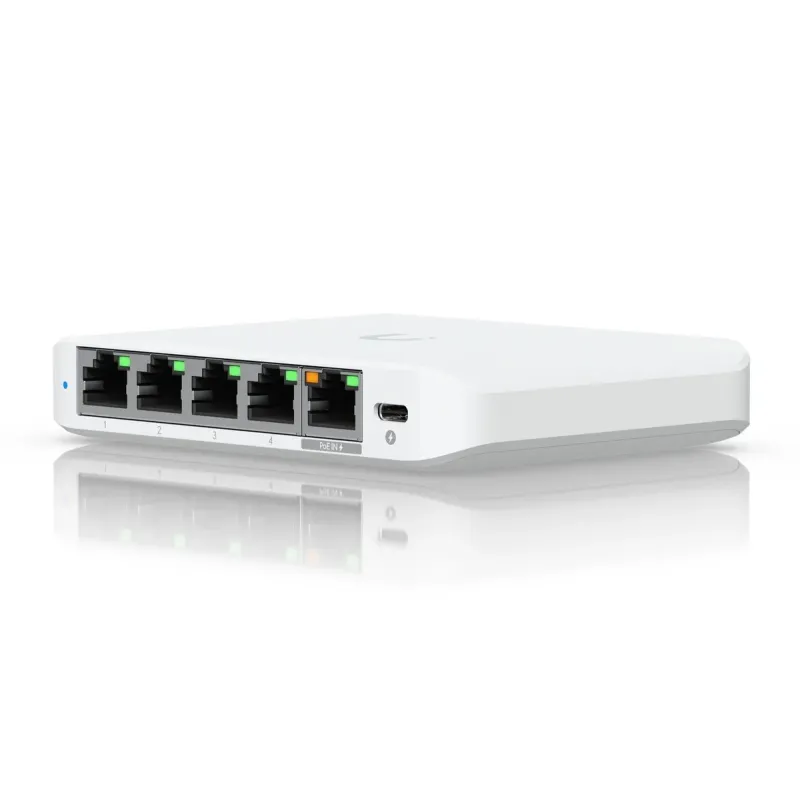

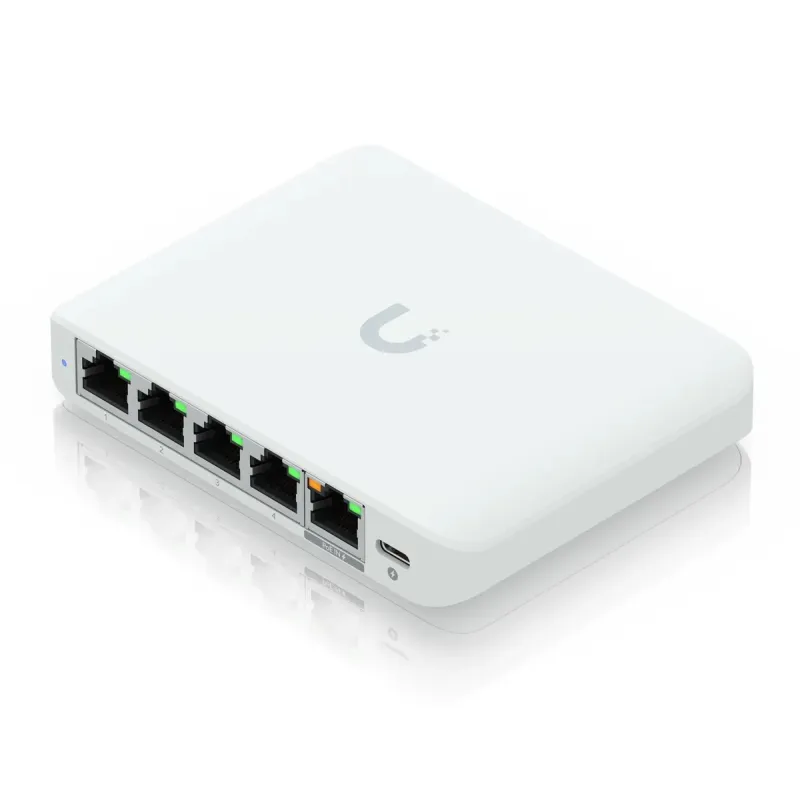

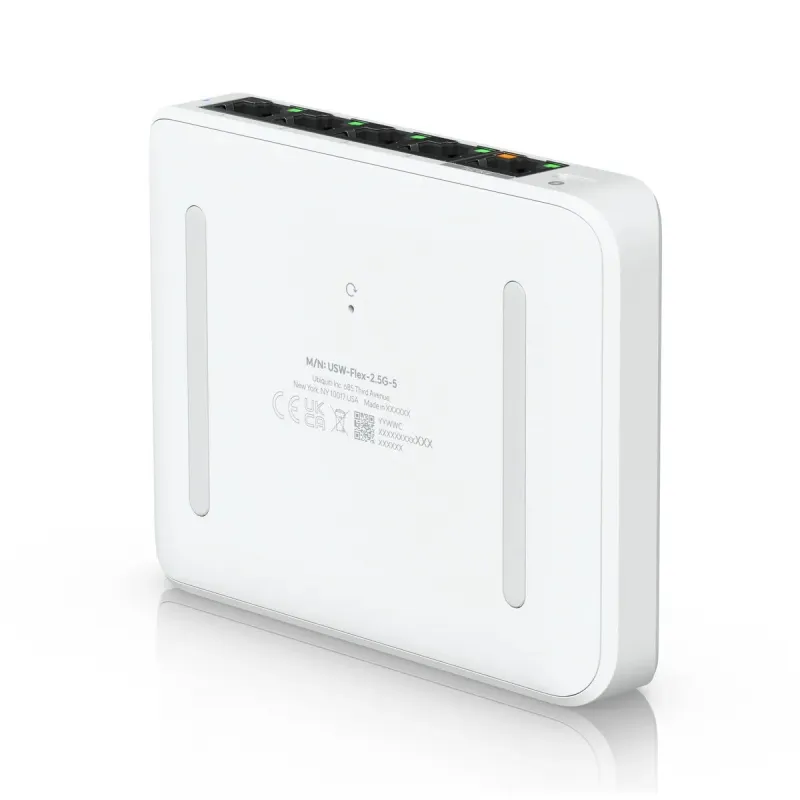

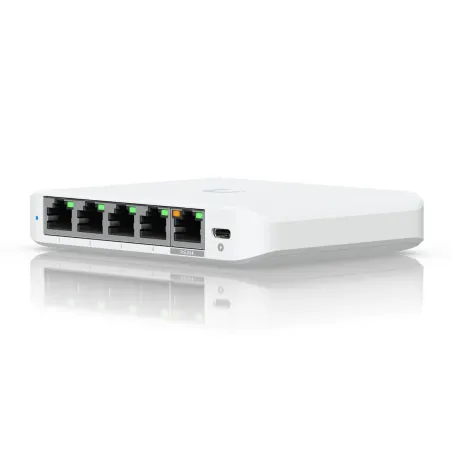

USW-Flex-2.5G-5 Unifi Flex Mini 2.5G L2-Managed Multi-Gigabit Switch 5 Port

USW-Flex-2.5G-5 Product Specification

Overview

USW-Flex-2.5G-5 Ubiquiti Unifi Flex Mini 2.5G L2-Managed Multi-Gigabit Switch 5 Port 2.5/1Gbps รองรับการจ่ายไฟจาก POE หรือ USB-C 5VDC

รองรับ VLAN Support, Port Aggregation (LAG), Spanning Tree Protocol (STP)

ควบคุมการทำงานผ่าน Unifi Software Controller

Overview

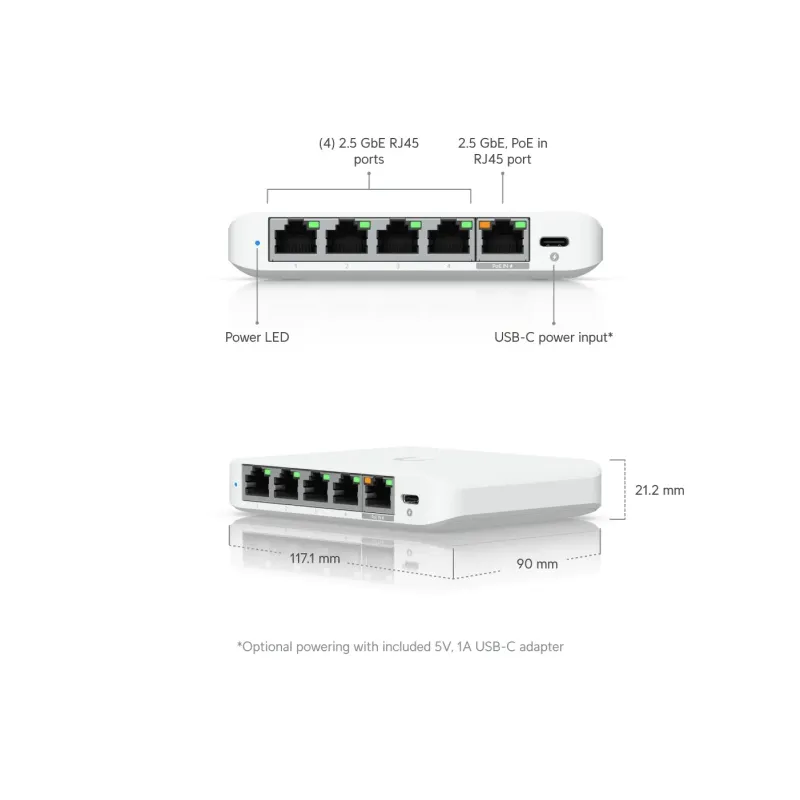

Dimensions

117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8")

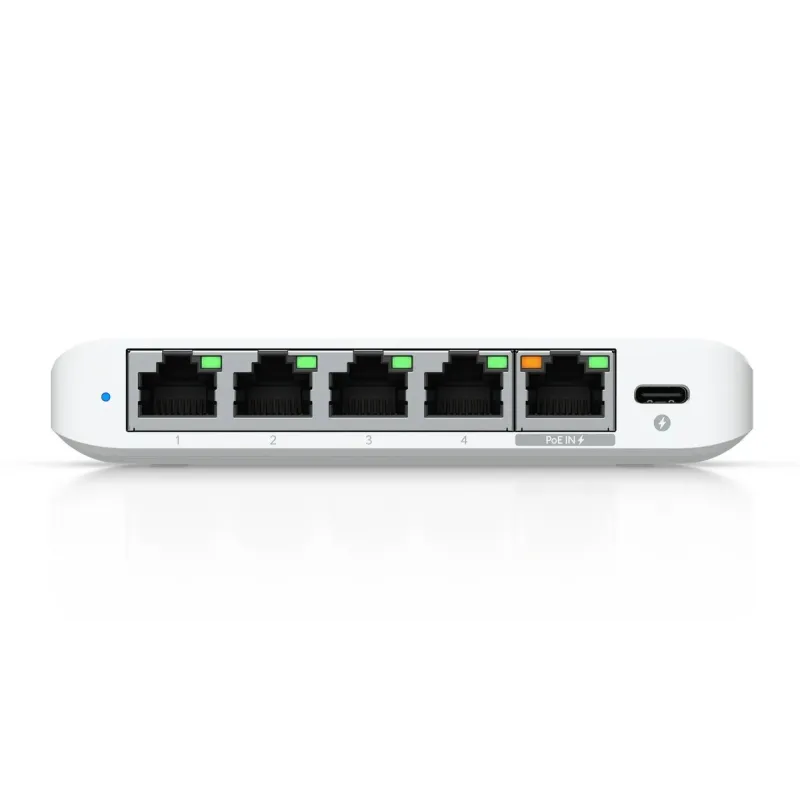

Port Layout

Form Factor

Compact desktop

Performance

Switching Capacity

25 Gbps

Total Non-Blocking Throughput

12.5 Gbps

Forwarding Rate

19 Mpps

Supported VLANs

256

MAC Address Table Size

4,000

STP & RSTP

Egress Rate Limit

Flow Control

Storm Control

Multicast & Broadcast Rate Limiting

Port Isolation

Port Mirroring

Jumbo Frames

Loop Protection

Hardware

Max. Power Consumption

5W (AC/DC input) 6.4W (PoE input)

Power Method

(1) USB Type-C, 5V DC, 1A (1) PoE

Power Input Method

USB Input PoE

Power Supply

AC/DC, external, 5W

Supported Voltage Range

4.8—5.2V DC/USB 44V—57V PoE

Management

Ethernet

Weight

206 g (7.3 oz)

Enclosure Material

Polycarbonate

Ambient Operating Temperature

-20 to 45° C (-4 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

NDAA Compliant

Certifications

CE, FCC, IC, Anatel

Software

Application Requirements

ประกัน

1 ปี
