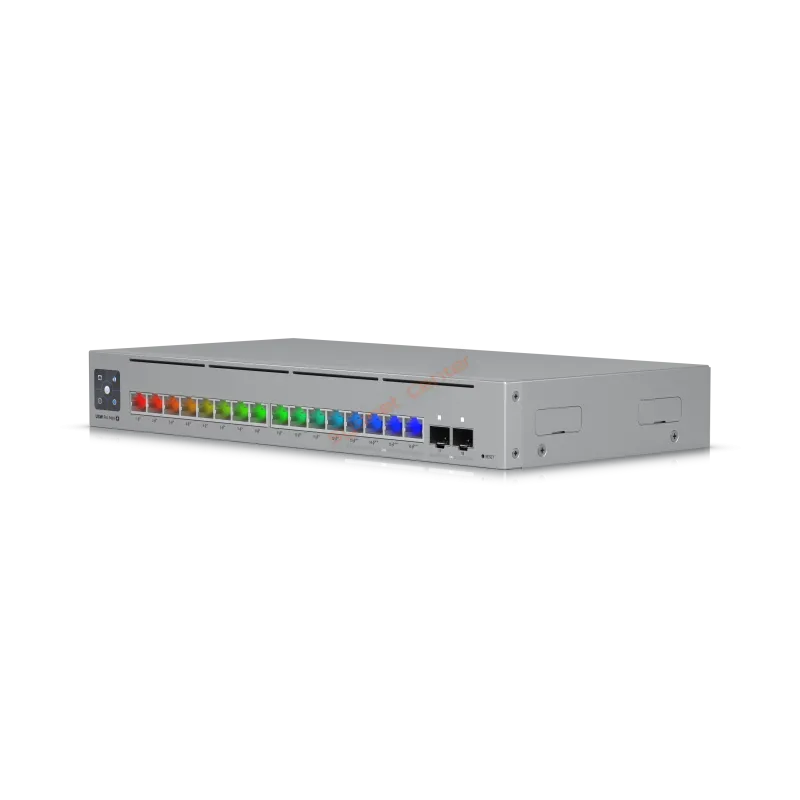

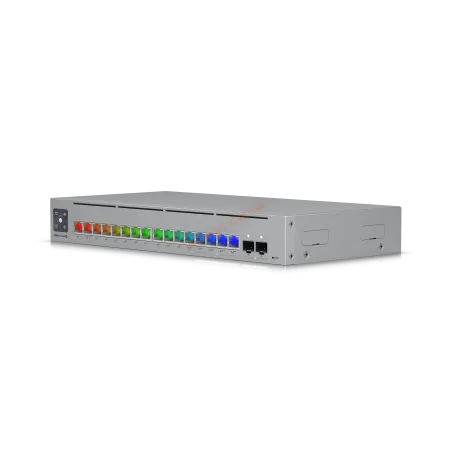

USW-Pro-Max-16-POE Ubiquiti Professional Max Switch L3-Managed Gigabit POE 16 Port, 4 Port 2.5G

USW-Pro-Max-16-POE Product Specification

Overview

Ubiquiti Professional Switch USW-Pro-Max-16-POE L2-L3 Managed Gigabit POE Switch 12 Port Gigabit + 4 Port 2.5G/1G, 2 Port SFP+ 10Gbps, จ่ายไฟ POE 802.3af/at/bt 16 Port 180W

Layer 3 Feature รองรับการทำ Inter VLAN, Routing, Static Routing, DHCP Server

จ่ายไฟ POE มาตรฐาน 802.3af/at/bt 16 Port 180W

ควบคุมผ่าน Unifi Software Controller

Dimensions

325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

Weight

2.1 kg (4.6 lb)

LCM Display

1.3" touchscreen

Management

Ethernet AR

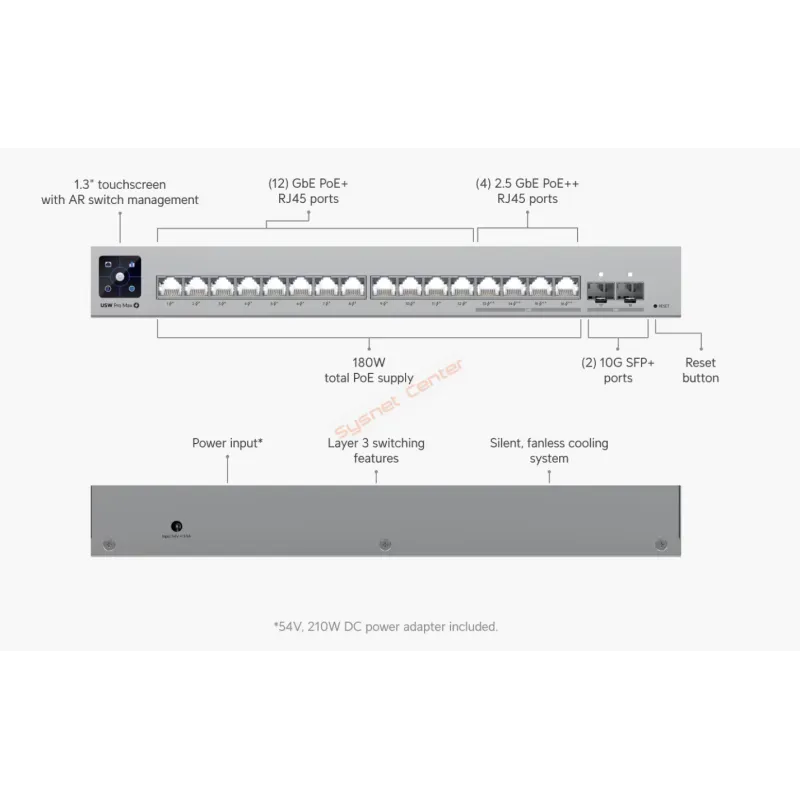

InterfacesNetworkingManagement

1 GbE RJ45

12 (All PoE+) (1G/100M/10M)

2.5 GbE RJ45

4 (All PoE++) (2.5G/1G/100M/10M)

10G SFP+

2 (10G/1G)

Power Method

AC Adapter

Power Supply

AC/DC, external, 210W

Supported Voltage Range

50-54V DC

Max. PowerConsumption

25W (Excluding PoE Output)

210W (Including PoE Output)

Layer 3 Features

DHCP Server (Local Networks)

DHCP Relay

Inter-VLAN Routing (Local Networks)

Static Routing (Local Networks)

Layer 2 Features

LACP Port Aggregation, STP & RSTP, QoS (DSCP)

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

IGMP Snooping

802.1X Control

MAC-Based ACLs & Device Isolation

DHCP Snooping & Guarding

Egress Rate Limit

Flow Control

Storm Control

Multicast & Broadcast Rate Limiting

MAC Address Blocking

IP-Based ACLs & Network Isolation

MAC-Based Port Restriction

Port Isolation

Port Mirroring

Jumbo Frames

LLDP-MED

Voice VLAN

Loop Protection

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

Max. PoE Wattage per Port by PSE

802.3af: 15.4W802.3at: 32W802.3bt: 64W

Voltage Range

50-54V DC

Heat Dissipation (Excluding PoE Output)

68 BTU/hr

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Software

UniFi Network Version 8.1.127 and later

ประกัน

2 ปี
