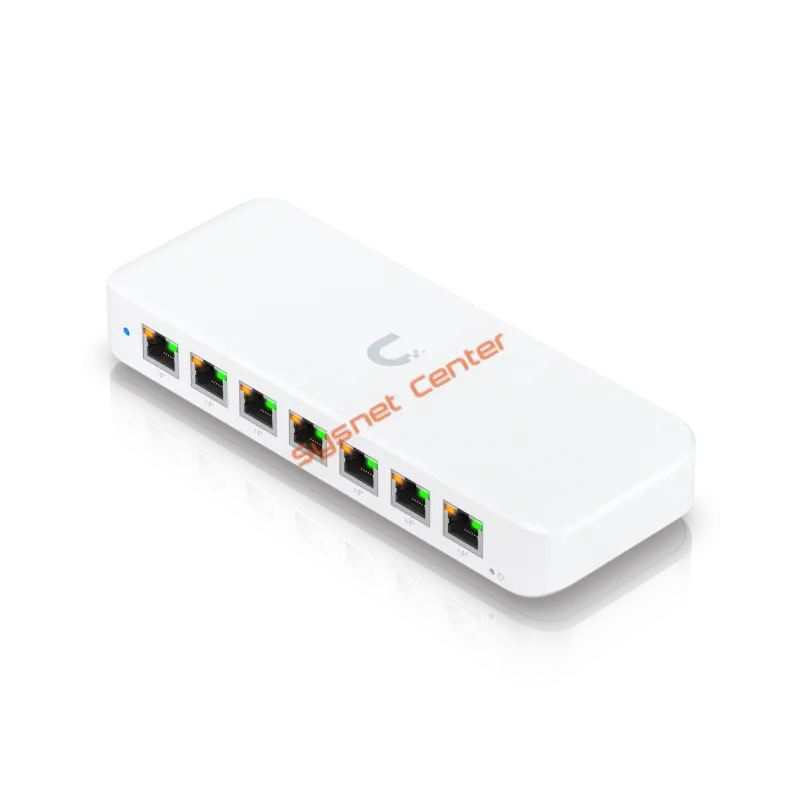

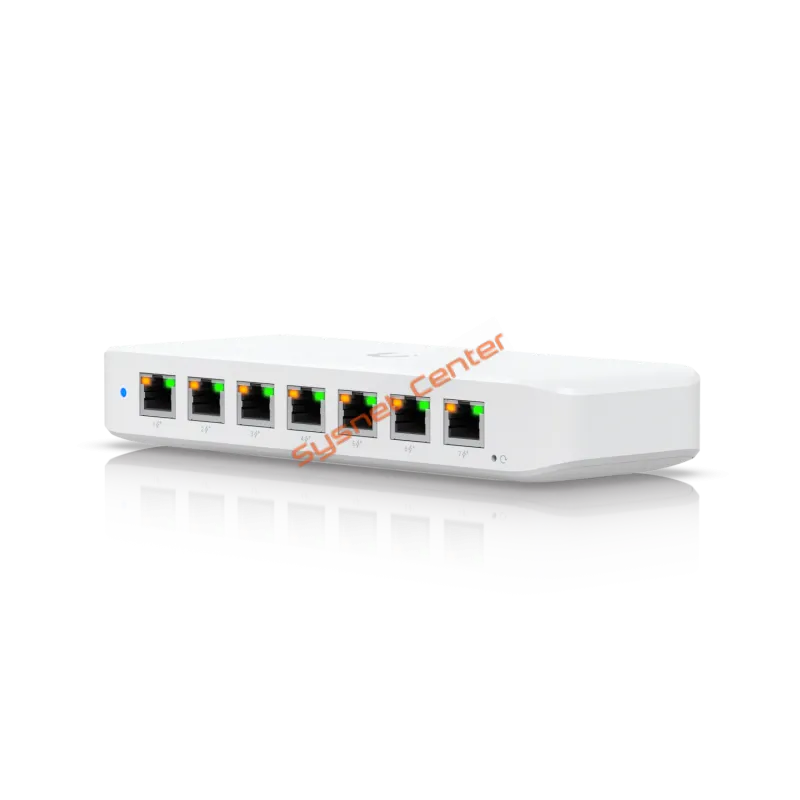

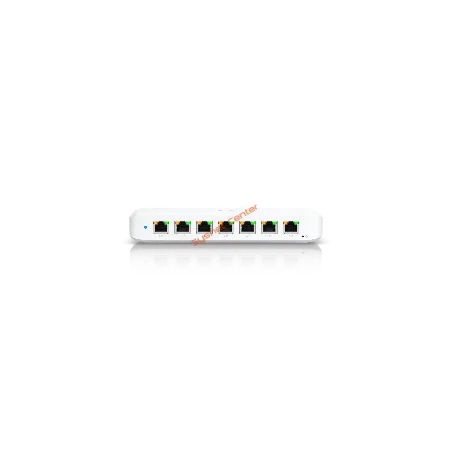

USW-Ultra-60W Ubiquiti Unifi Switch L2-Managed Gigabit POE Switch 7 Port Gigabit

Ubiquiti Unifi Switch USW-Ultra-60W (52W)

Product Specification

Overview

Ubiquiti Unifi Switch USW-Ultra-60W (52W) L2-Managed Gigabit POE Switch ขนาด 8 Port ความเร็ว Gigabit

จ่ายไฟ POE มาตรฐาน 802.3af/at 7 Port 60W

รองรับ input PoE++ [optional ]

Dimensions

203 x 76 x 33 mm (8 x 3 x 1.3")

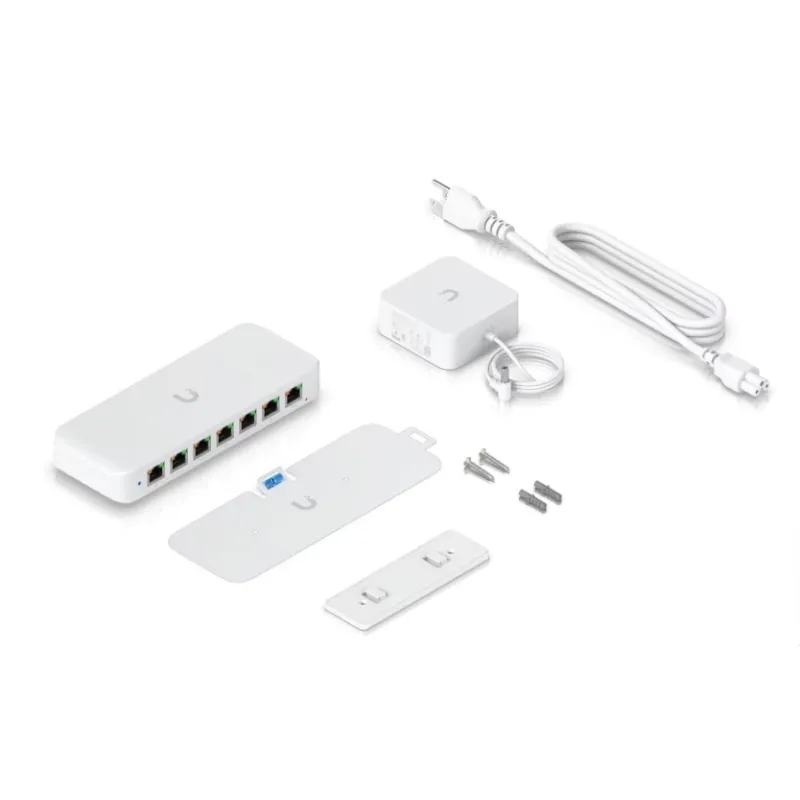

Weight With Rackmount Brackets

Device: 320 g (11.3 oz)Wall mount: 45 g (1.6 oz)60W adapter: 330 g (11.6 oz)

Interfaces Networking Management

(8) GbE RJ45 ports Ethernet In-Band

Button

Factory reset

Power Method

100-240VAC/50-60 Hz, Universal Input

Power Supply

54V, external, 1.1A/60W

Supported Voltage Range

100 to 240VAC

Max. Power Consumption (Excluding PoE Output)

9W with PoE input (Excluding PoE output)8W with AC adapter input (Excluding PoE output)

Layer 2 features

Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

Layer 3 features

-

Total non-blocking throughput

8 Gbps

Switching capacity

16 Gbps

Operating Temperature

PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

PoE Interfaces

7 Port POE+ IEEE 802.3af/at(pins 1, 2+; 3, 6-)

Max. PoE Wattage per Port by PSE 802.3at

30W

Voltage Range 802.3af Mode

44-57V

Voltage Range 802.3at Mode

50-57V

UniFi Network

Version 8.0.7 and later

ประกัน

3 ปี
