Product Specification
|
|
Overview
|

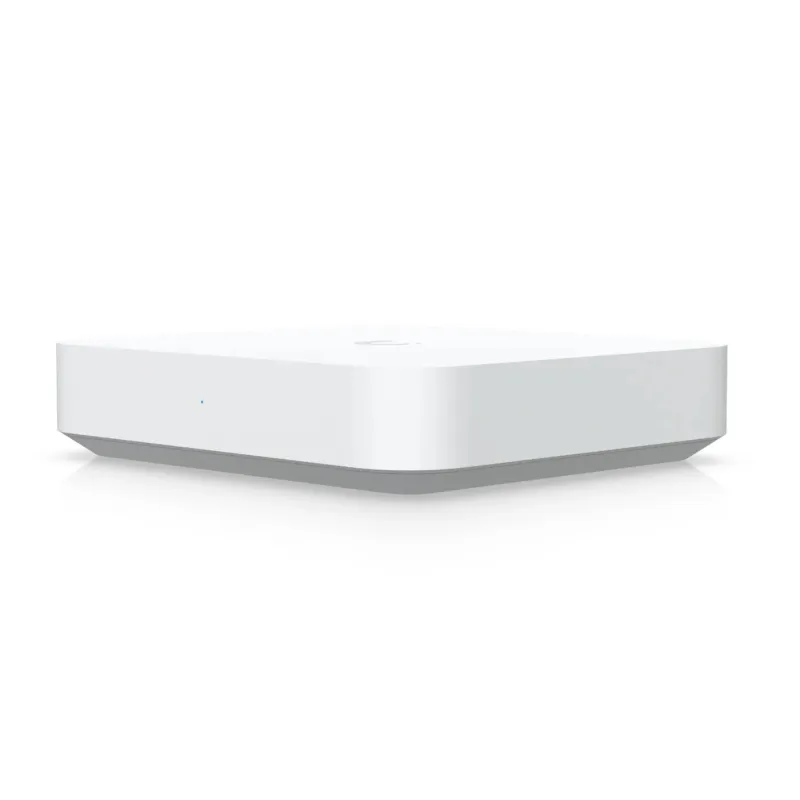

UXG-Max Ubiquiti Unifi Gateway
1 WAN Port 2.5G, 4 LAN Port 2.5G CPU Quad-core, รองรับ SD-WAN, Inter-VLAN, VPN WireGuard, L2TP ควบคุมการทำงานผ่าน Software Unifi Controller, Unifi Cloud Key
|
Mechanical
|
|
Dimensions
|
141.80 x 121.60 x 30 mm (5.6 x 5 x 1.2")
|
|
Weight
|
520 g (11.1 oz)
|
|
Enclosure materials
|
Polycarbonate
|
|
Resistance
|
IK04
|
Hardware
|
|
Processor
|
Quad-core ARM® Cortex®-A53 at 1.5 GHz
|
|
Memory information
|
2GB DDR4
|
|
Management interface
|
EthernetBluetooth 5.1
|
|
Networking interface
|

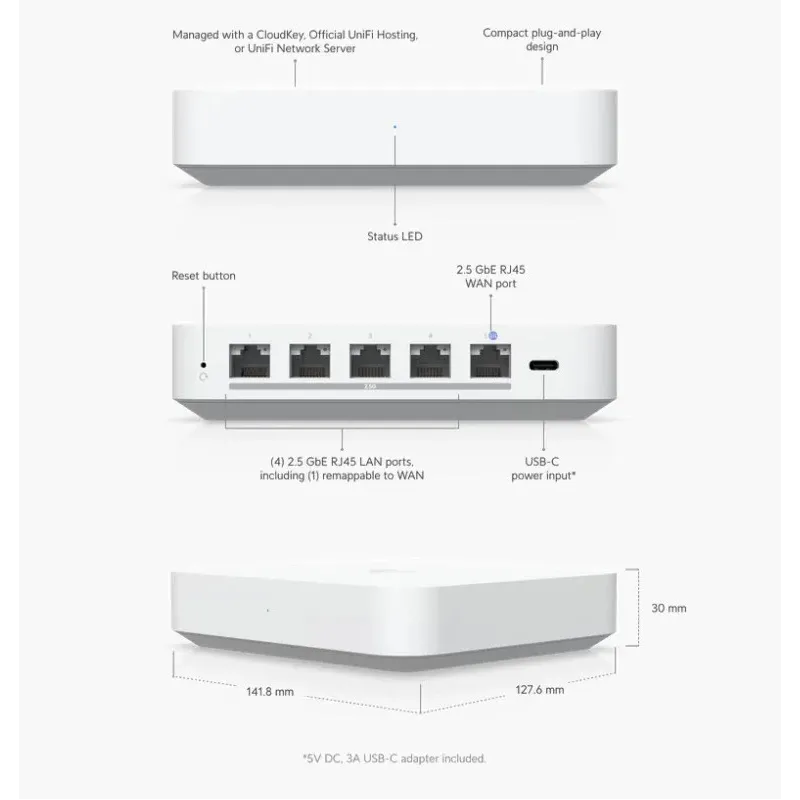

(1) 2.5GbE RJ45 WAN port(4) 2.5GbE RJ45 LAN port
|
|
Power method
|
USB type C (5V/3A)
|
|
Supported voltage range
|
100-240V
|
|
Max. power consumption
|
9.6W
|
|
Operating temperature
|
-10 to 40° C (14 to 104° F)
|
|
Operating humidity
|
5 to 95% noncondensing
|
|
Certifications
|
CE, FCC, IC
|
Gateway Features
|
|
Performance
|
WiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationInternet quality and outage reporting
|
|
Next-generation security
|
Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall
|
|
Advanced networking
|
License-free SD-WAN*WireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport* and Identity Enterprise VPN**Policy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIPv6 ISP support *When paired with a Cloud Key or Official UniFi Hosting.**When paired with a Cloud Key.
|
Application Requirements
|
|
UniFi Network
|
Version 8.1.113 and later
|
|
รับประกัน
|
1 ปี
|
