แบรนด์: Ubiquiti

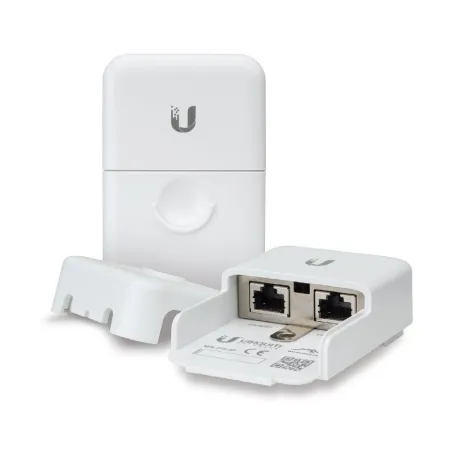

Ubiquiti ETH-SPEthernet Surge Protector อุปกรณ์ป้องกันความเสียหายจากประจุไฟฟ้า หรือ ฟ้าผ่า จากภายนอก ผ่านสาย Lan UTP เพื่อไม่ให้เข้ามาภายในระบบ ป้องกันอุปกรณ์เครือข่ายภายในระบบไม่ให้เกิดความเสียหาย รองรับความเร็ว Gigabit
Ubiquiti ETH-SP Ethernet Surge Datasheet
Ubiquiti ETH-SP Ethernet Surge Quick Install Guide
Product Specification |
|
Overview |

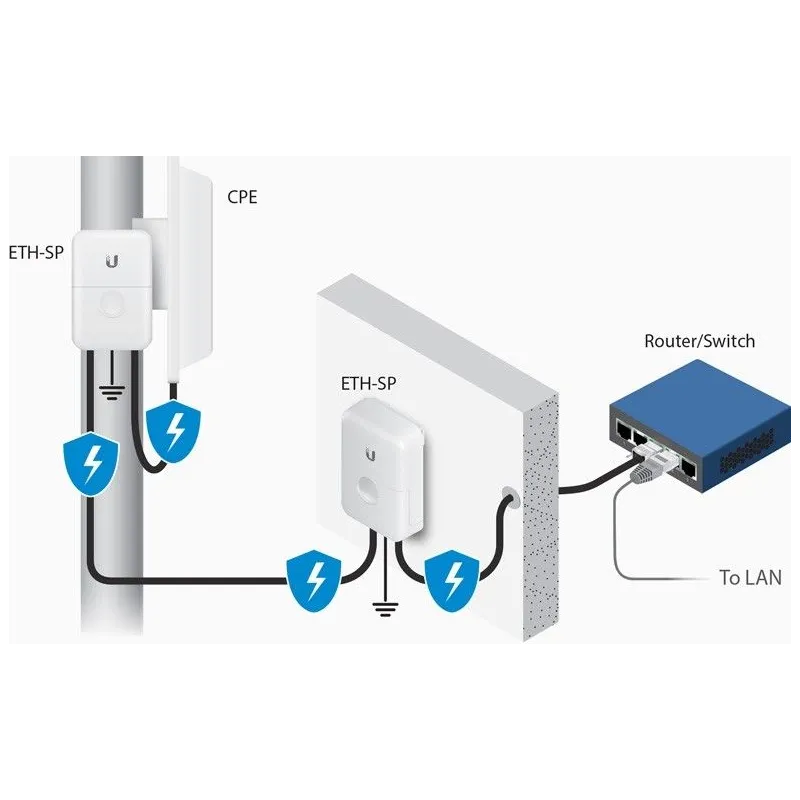

Ubiquiti ETH-SP Ethernet Surge Protector อุปกรณ์ป้องกันความเสียหายจากไฟกระชากหรือฟ้าผ่าต่อระบบเครือข่ายผ่านสาย Lan (UTP/STP) ที่เกิดขึ้นจาก Access Point หรือสาย Lan จากภายนอกอาคารมายังอุปกรณ์ที่อยู่ภายในอาคาร รองรับความเร็ว 10/100/1000Mbps |
Ethernet Surge Protector ESD Protection for Outdoor High-Speed Networks Introducing the Ethernet Surge Protector, model ETH-SP, from Ubiquiti Networks. The ETH-SP is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti? airMAX? devices already have robust ESD protection built in, adding the ETH-SP to the installation provides an additional layer of protection to the network. The ETH-SP is engineered to protect Power?over?Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility. |
|

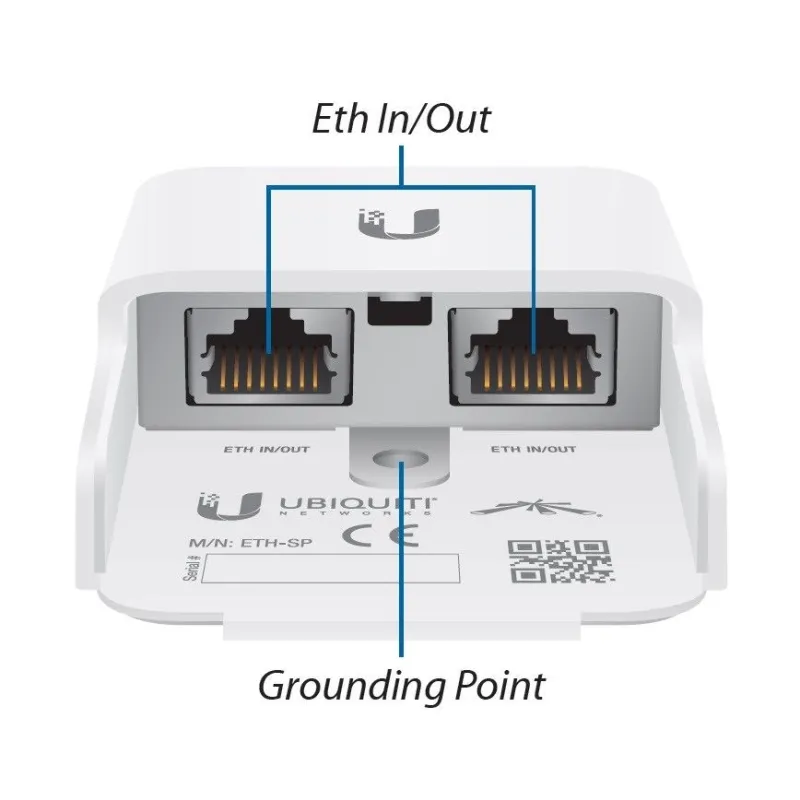

Interface Connections |
(2) RJ45 Female Connectors |
ESD/EMP Protection |
Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/?s |
DC Spark-Over Voltage |
90V @ 100V/s |
Maximum Impulse Spark-over Voltage |
700V @ 1kV/?s |
Discharge Current |
5kA (Maximum) 0.5kA (Normal) |
Maximum Insulation Resistance |
1G ohm @ 50V |
Maximum Capacitance |
1.0 pF @ 1 MHz |
Data Line Protection |
RJ45 10/100/1000 Ethernet |
IEEE 802.3af PoE Support |
Yes |
Shock and Vibration Certification |
ETSI300-019-1.4 Standard |
Operating Temperature |
-30 to 65? C (-22 to 149? F) |
Operating Humidity |
10 to 90% Noncondensing |
Dimension |
91 x 61 x 32.5 mm |
Weight |
80 g |
รับประกัน |
6 เดือน |
