Product Specification

Overview

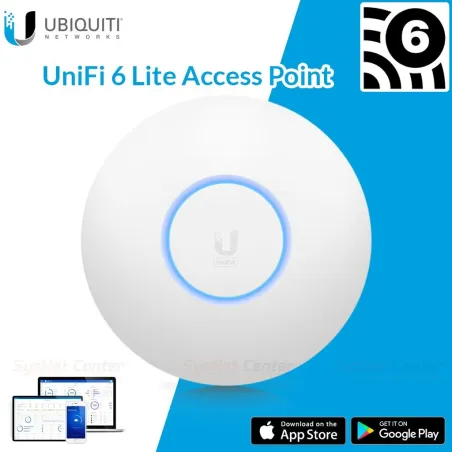

Ubiquiti UniFi 6 Lite Access Point (U6-Lite-US) Wi-Fi 6 Access Point with dual-band 2x2 MU-MIMO 1.5Gbps

MU-MIMO 2x2 high-efficiency Wi-Fi 6
5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps
2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps
Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)
Compatible with UAP-nanoHD covers and recessed mounting bracket

Mechanical

Dimensions

Ø160 x 32.65 mm (Ø6.3 x 1.3")

Weight

Witdout Mount: 300 g (10.6 oz)
Witd Mount: 315 g (11.1 oz)

Enclosure Characteristics

Polycarbonate 110 and ADC12 Die Casting

Mounting Characteristics

Polycarbonate, SGCC Steel

Hardware

Processor Specs

880 MHz MIPS 1004 KEc

Memory Information

256 MB

Management Interface

Etdernet In-Band

Networking Interface

(1) 10/100/1000 Mbps Etdernet RJ45

Buttons

Factory Reset

LEDs

White/Blue

Power Metdod

802.3af PoE, Passive PoE (48V)

Power Supply

802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)

Supported Voltage Range

44 to 57VDC

Max. Power Consumption

12W

Max. TX Power
2.4GHz
5GHz

23 dBm
23 dBm

MIMO
2.4GHz
5GHz

2 x 2
2 x 2

Throughput Speeds
2.4GHz
5GHz

300 Mbps
1201 Mbps

Antenna Gain
2.4GHz
5GHz

2.8 dBi
3 dBi

Operating Temperature

-30 to 60° C (-22 to 140° F)

Operating Humidity

5 - 95% Noncondensing

Certifications

CE, FCC, IC

Software

Wi-Fi Standards

802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

*Supported Witd Upcoming Controller Versions

BSSID

8 per Radio

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Trafc Isolation

Supported

Concurrent Clients

300+

Supported Data Rates (Mbps)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (Wi-Fi 4)

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11ac (Wi-Fi 5)

6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

802.11ax (Wi-Fi 6)

6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
