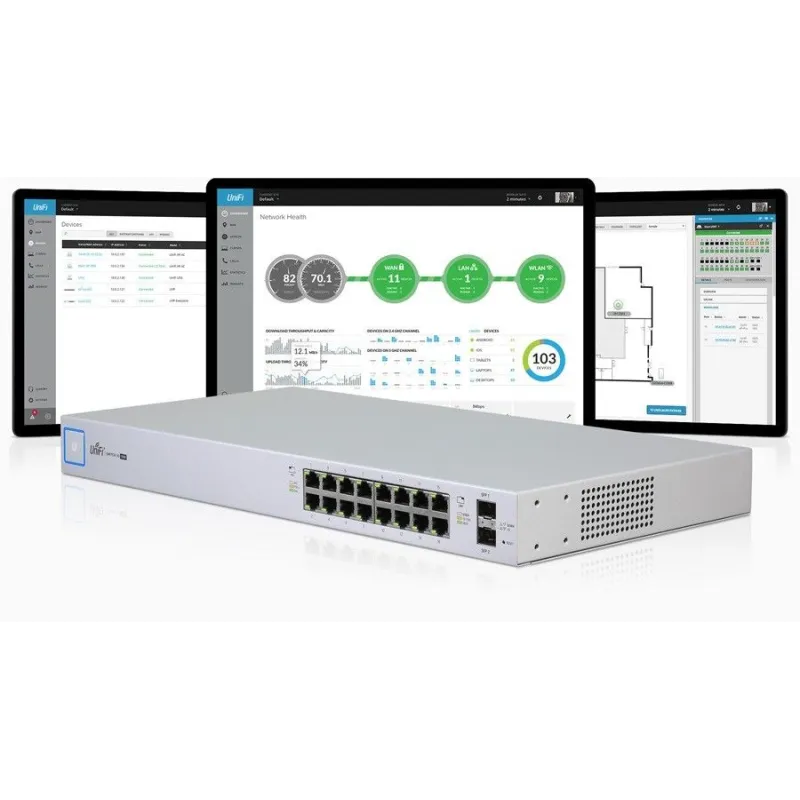

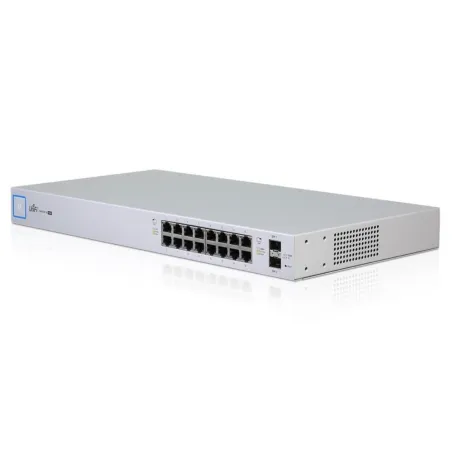

US-16-150W Ubiquiti Unifi Switch L2-Managed Gigabit Switch 16 Port

Product Specification

Overview

Ubiquiti Unifi Switch US-16-150W L2 Managed Gigabit POE Switch ขนาด 16 Port ความเร็ว Gigabit
จ่ายไฟ POE มาตรฐาน 802.3af/at 16Port กำลังไฟสูงสุด 150W

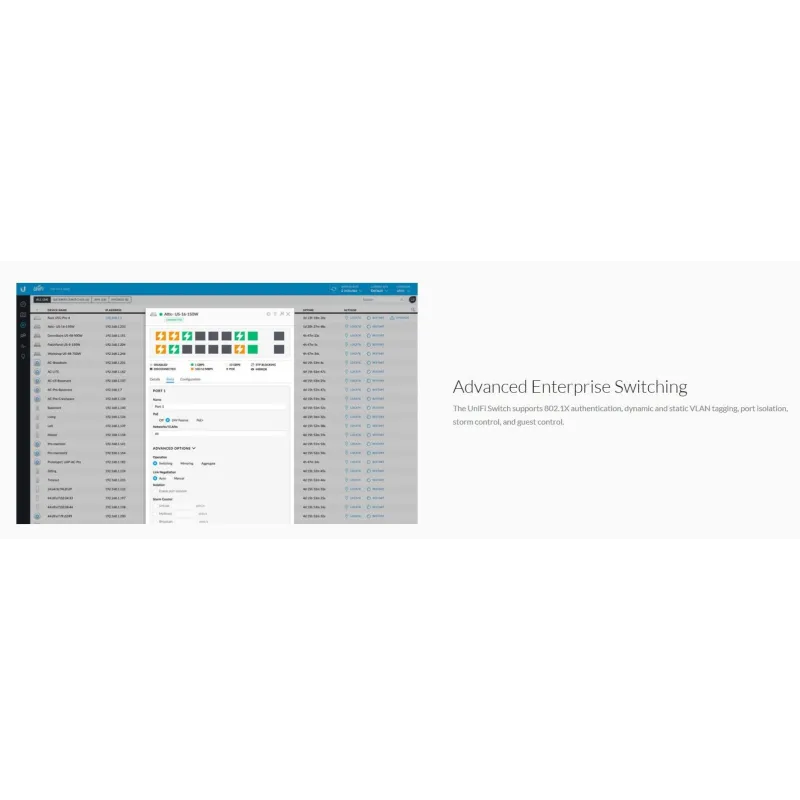

ควบคุมการทำงานผ่าน Unifi Software Controller

Enclosure Characteristics

SGCC Steel

Switching Capacity

36 Gbps

Total Non-Blocking Throughput

18 Gbps

Forwarding Rate

26.78 Mpps

MAC Address Table

16384

Maximum Aggregations

6

Monitoring Sessions

1

Maximum VLANs

255

Power Method

100-240VAC/50-60 Hz, Universal Input

Power Supply

AC/DC, Internal, 150W DC

Max. Power Consumption

Including PoE Output: 150W
Excluding PoE Output : 28W

LEDs Per Port

RJ45 Data Ports : PoE, Speed/Link/Activity
SFP Data Ports : Speed/Link/Activity

Sound Level*

Fan Level: 0 :1.7 dBr

Fan Level: 1, 2, 3 :10.8 dBr

ESD/EMP Protection

Air: ? 24 kV, Contact: ? 24 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 40? C (23 to 104? F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

PoE+ Per Port

PoE Interfaces

PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE

34.2W

Voltage Range 802.3at Mode

50–57V

Max. Passive PoE Wattage per Port

17W

24V Passive PoE Voltage Range

20 - 27V

ประกัน

2 ปี
