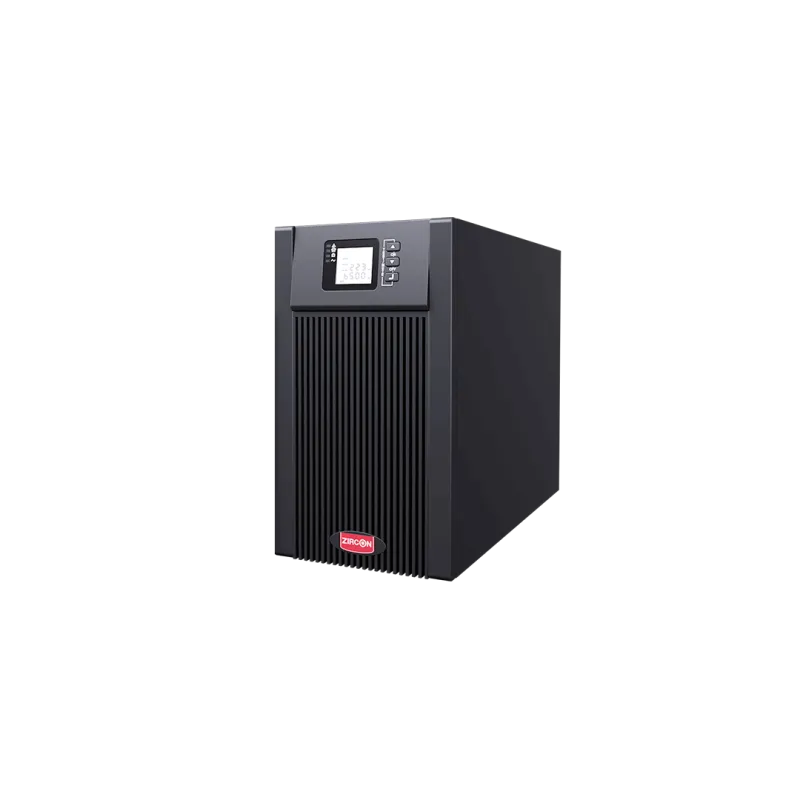

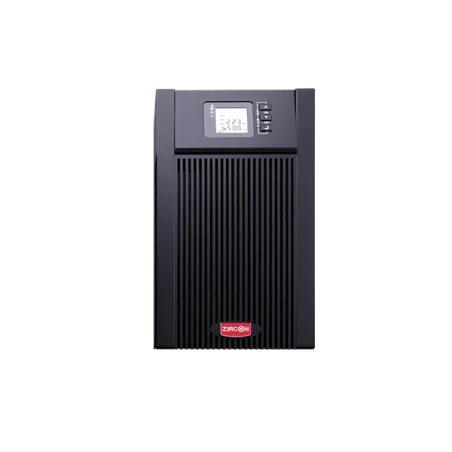

| Product Description | | Zircon UPS ZC-MPII เครื่องสำรองไฟ 3kVA/2700W, True Online , Universal Outlet, 230V ประกัน 2 Yrs |
| Input | Model
Capacity (VA/W)
Phase
Rated Voltage
Voltage Range
Frequency Range
Power Factor
Current THDi
Bypass Voltage Range
ECO Range
Generator Input | 3000VA
2700W
Single Phase & Ground
200/208/220/230/240VAC
140-290V*
40Hz-70Hz (auto-detect)
>0.99 @100% load (Nominal Input Voltage)
<6% at 100% non-linear load
Bypass high voltage point : 230-264 Vac (Setting in LC, Default: 264Vac)
Bypass low voltage point : 170-230 Vac (Setting in LC, Default: 170Vac)
Same As The Bypass
Support |
| Output | Phase
Rated Voltage
Power Factor
Voltage Regulation
Frequency - Utility Mode
- Battery Mode
Crest Factor
THD
Wave Form | Single Phase & Ground
200/208/220/230/240VAC
0.9
+/- 1% (Battery Mode)
50Hz or 60Hz (Synchronized to Mains)
50Hz-60Hz +/- 0.02% Hz
3:1
< 3% with Linear Load
< 5% with non Linear Load
Pure Sine Wave |
| Efficiency | AC Mode ( Full Load )
Battery Mode ( Full Load )
ECO Mode ( Full Load ) | Up to 90%
>88%
>94% |
| Battery | Voltage
Capacity (Standard Unit)
Back up Time
Recharge Time to 90%
Charging current - Standard
- Special | 72Vdc
12V/9Ah
Full load 5 min, 15-30 min (Depend on load), Long time depends on capacity of EBP
4 Hours recovery to 90% capacity (Typical)
1A
12A |
| Transfer Time | | Utility to Battery; 0ms, Utility to Bypass <4ms |
| Protection | Overload - AC Mode, Batt. Mode
- Bypass Mode
Short Circuit
Overheat
Battery Low
Self-Diagnostics
EPO
Battery
Noise Suppression | 105%~110%: UPS shuts down after 10mins, 110%~130%: UPS
shuts down after 1mins, >130%:UPS shuts down after 3 seconds
20A (input Breaker)
Hold Whole System
Line mode; Switch to Bypass; Battery Mode, shutdown UPS immediately
Alarm and Switch off
Upon Power On and Software Control
Shutdown UPS immediately
Advanced Battery Management
Compiles with EN962040-2 |
| ALARM | Audible & Visual
Reading on the LCD | Line Failure, Battery Low, Overload, System Fault |
| Display | Status LED & LCD
Reading on the LCD | Input/Output Voltage, Frequency, Temperature, Load/battery Level, Charger, Load
Capacity, Battery Voltage, Overload, ECO, Warning, Bypass, Battery, Inverter, ETC. |
| Physical | Dimnsion (WxHxD) mm.
Weight (Kilogram)
Input Connection
Output Connection
External Battery Connection | 440 x 86.5 x 696
18.1
IEC320 C14-10A
Universal x 6
IEC320 C19-16A x1
Anderson like PowerPole Modular connectors |
| Dimensions | WxDxH (mm.) | 191 x 337 x 460 |
Communication
Interface | Smart RS232/USB Port
Communication slot
RJ 45 | Support Windows Family, Linux, FreeDSB, etc.
SNMP Card (independent to RS232)
Built-in Power Surge, Lightning Protection Device |
| Environment | Operating Temperature
Storage Temperature
Humidity
Attitude
Noise | 0 °C - 40 ° C
-25 °C - +55 °C
0-90% non-condensing
<1500 m. (derating while > 1500m)
<50 dB (at 1 meter) |
| Standards | Safty
EMC
ISO | IEC/EN62040-1, IEC/EN60950-1
IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC6100-4-4
IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
ISO9001, ISO14001 |
