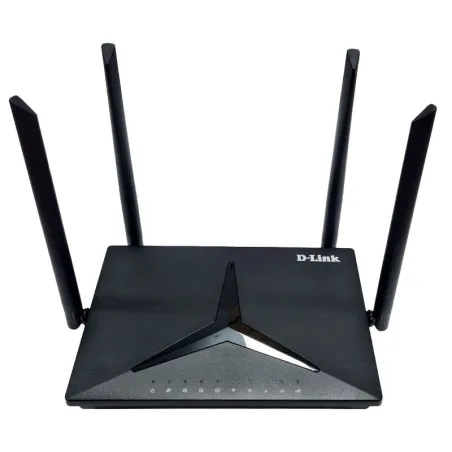

D-Link DWR-M920 4GN300 LTERouter แบบใส่ Sim รองรับ PPTP, L2TP VPN Client

Product Specification

Overview

D-Link DWR-M920 4GN300 เราเตอร์ใส่ซิม รองรับ PPTP, L2TP VPN Client

รองรับ 4G: FDD-LTE Band 1,3,7,8,20,28 (700/800/900/1800/2100/2600MHz)
รองรับ 4G: TDD-LTE Band 38,40,41(2300/2500/2600MHz)
รองรับ 3G: WCDMA Band 1,8 (900/2100MHz)

Chipset

RLT8197FH-VG5-CG+Marvell 1802S

CPU frequency

1GHz

Memory

128MB 16-bit DDR2 SDRAM

Flash

8MB

Wi-Fi

2T2R 2.4GHz 802.11b/g/n, 300Mbps

Device Interfaces

1 x LTE interface
3 x RJ45 10M/100M LAN Ethernet interfaces
1 x RJ45 10M/100M WAN Ethernet interfaces
1 x reset button
1 x WPS button
1 x Power jack
1 x Power switch

Wi-Fi Antenna

2 x 5dBi external antenna

LTE Antenna

2 x 5dBi external antenna

DWR-M920

WCDMA: B1/8
FDD LTE: B1/B3/B7/B8/B20/B28
TDD LTE: B38/40/41

Standards

802.11b/g/n
2.4 ~ 2.4835GHz
Korea, Japan, ETSI, FCC channels can be selected

Modulation Schemes

OFDM = BPSK, QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK

Transfer Rate

HT20: up to 144 Mbps
HT40: up to 300 Mbps

General

RFC0768 UDP
RFC0791 IP
RFC0792 ICMP
RFC0793 TCP
RFC0826 Ethernet ARP
RFC0894 IP over Ethernet
RFC0922 Broadcasting Internet Datagrams
RFC0950 Internet Standard Subnetting
IEEE802.3 Ethertype
IEEE802.1p
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
RFC2516 PPP Over Ethernet (PPPoE)
RFC1662 PPP in HDLC-like Framing
RFC1332 PPP Internet Protocol Control Protocol
IPoE (a.k.a IP over Ethernet over AAL5)
DHCP server, client
NAT,NAPT and ALG
DMZ and Port forwarding(Virtual server)
RFC1042 A standard for the Transmission of IP
Datagrams over IEEE 802 Networks
Flexible and secure SPI Firewall, Denial of Service (DoS)protection
PPTP, L2TP VPN
IGMP proxy and MLD for IPTV
Logs and statistics
TR-069 remote mangagment
Port  ltering, IP  ltering and MAC  ltering
URL  lter
QOS Flow Control
DDNS
IPV6
Static route
SNTP Date/time update from Internet Time Server
ETH WAN link-backup via 3G/4G module
WEB GUI
Embedded AP with 4 SSIDs
Wireless WDS
Wireless client mode
Separate authentication for each SSID
Wireless schedule

Operating Temperature

0°C ~ 40°C

Storage Temperature

-20°C ~ 90°C

Operating Humidity

5% ~ 95% (typical)

Power Supply

12V/1A

Regulation Compliance

CE

Safety Regulations

UL

Green Standard

RoHS

รับประกัน

3 ปี
