Product Overview
|

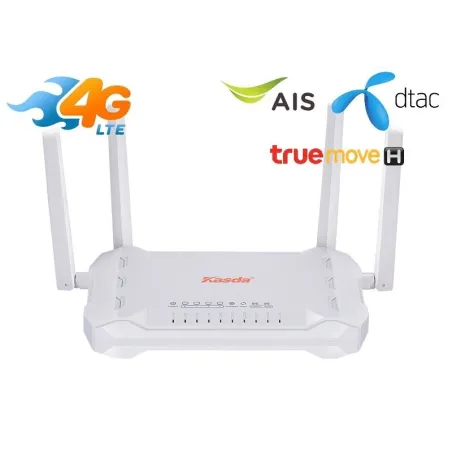

KASDA KW9621S AC 1200 Wireless Dual Band 4G LTE Router แบบใส่ Sim รองรับเครือข่าย 4G LTE ทุกเครือข่าย TRUE, DTAC, AIS ความเร็วสูงสุด 150Mbps/50Mbps กระจายสัญญาณ Wifi มาตรฐาน AC , รองรับ VOIP พร้อม 1 FXS Port, 1 USB
|
|
Wi-Fi Standard
|
802.11b/g/n , FDD-LTE/TDD-LTE standard
|
|
Wi-Fi performance
|
1200Mbps
|
|
Wi-Fi Range
|
Medium house
|
|
Wi-Fi Band
|
2.4GHz & 5GHz
|
|
Number of Ethernet Ports
|
4 Fast Ethernet LAN Ports
|
|
Number of other ports
|
1 SIM card slot, 1 FXS port and 1 USB port
|
|
Key Features
|
LTE Uplink up to 50Mbps and downlink up to 150Mbps
|
|
Static Route, Dynamic RIPv1, RIPv2 support
|
|
4 external 3dBi antennas
|
|
Support IPv4/IPv6 Dual Stack
|
|
MTU Adjustment
|
|
Network Address Translation (NAT)
|
|
Port Forwarding
|
|
DHCP Server/Relay/client
|
|
DNS Relay Agent/DDNS Support
|
|
IGMP snooping v1/2 and IGMP Multicast
|
|
NAT Application Level Gateway for popular applications
|
|
VOIP Features
|
Call Waiting/Forwarding/Transferring/Block/Barring
|
|
Anonymous Calling /Call Blocking
|
|
Three Way Conference
|
|
DND (Do Not Disturb)/CNG (Comfort Noise Generation)/DTMF Detection and Generation/Silence Suppression
|
|
MWI
|
|
SIP (RFC 3261)/SDP (RFC 2327)/RTP (RFC 1889)/RTCP (RFC 1890)
|
|
Codec: G.711, G.723.1, G.726, G.729.A, G.722, G.722.2
|
|
Echo Cancellation: G.168
|
|
VAD (Voice Activity Detection)
|
|
Multiple SIP
|
|
T.38 Fax Relay
|
|
Management Support
|
Remote Access Control
|
|
FTP/ HTTP/ Telnet/ TR069
|
|
Command Line Interface via serial interface
|
|
Diagnostic Test
|
|
Firmware upgrade-able
|
|
Bands
|
FDD-LTE: BAND 5: 850MHz UL 824~849MHz, DL 869~894MHz
|
|
TDD-LTE: BAND 38: 2600MHz Range:2570~2620MHz
|
|
BAND 40: 2300MHz Range:2300~2400MHz
|
|
Security
|
Parental control
|
|
PAP/CHAP Authentication for PPP mode
|
|
NAT for Firewall
|
|
SPI Firewall with DoS protection
|
|
ALG for NAT/PAT support
|
|
2 Level (User/Admin) Authentication to Router
|
|
IP Filtering and MAC Filtering
|
|
VPN
|
IPSec VPN
IPSec/PPTP/L2TP VPN Pass through
|
|
QoS
|
Priority Queuing/Classification Rules/802.1p
|
|
Processor
|
VSPM310+MT7603+MT7612EN+LE9642
|
|
Memory
|
Flash up to 128MB, RAM up to 128MB
|
|
Power
|
Input: 100-240V AC,50Hz
Output: 12V DC,1.5A
|
|
Physical Specifications
|
180(H)*115(W)*26(T)mm
|
|
180g
|
|
Package Contents
|
LTE Router
|
|
Power Adapter
|
|
RJ45 Cable
|
|
User Manual
|
|
System Requirements
|
Windows 7,8,8.1,10,XP,VISTA/Macintosh/Linux
|
|
Microsoft? Internet Explorer? 5.0, Firefox? 2.0, Safari? 1.4, or Google Chrome? 11.0 browsers or higher
|
|
Warranty
|
ประกัน Life Time
|
