TP-Link MR105 Product Specification |
Overview | TP-Link MR105 Wireless N 300Mbps 4G LTE เราเตอร์ใส่ซิม รองรับ 4G LTE ทุกเครือข่าย True, DTAC และ AIS กระจายสัญญาณ Wifi 300Mbps 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
HARDWARE FEATURES |
|---|

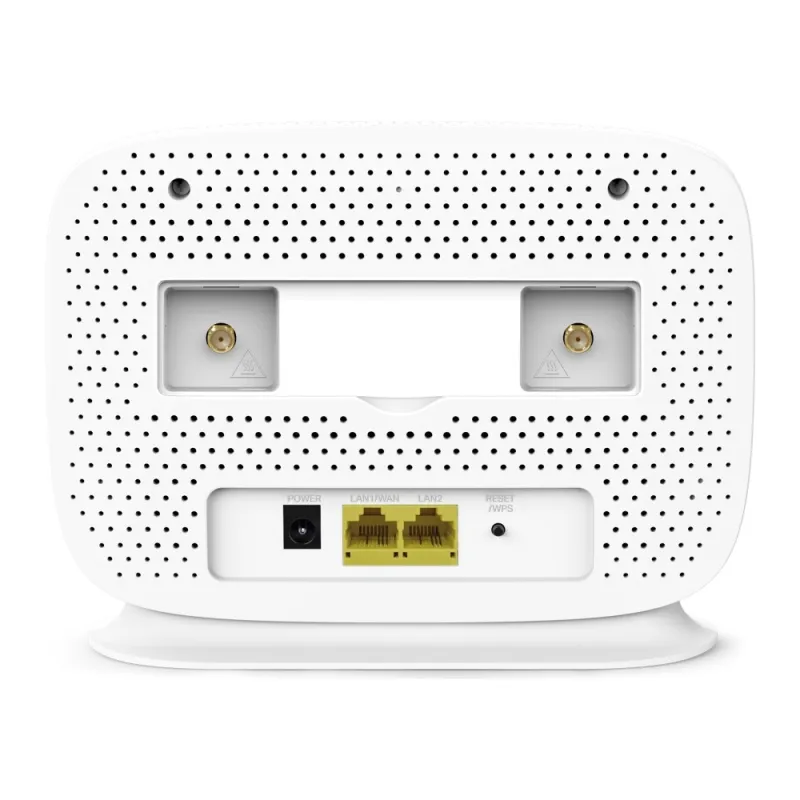

Interface | 1 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,

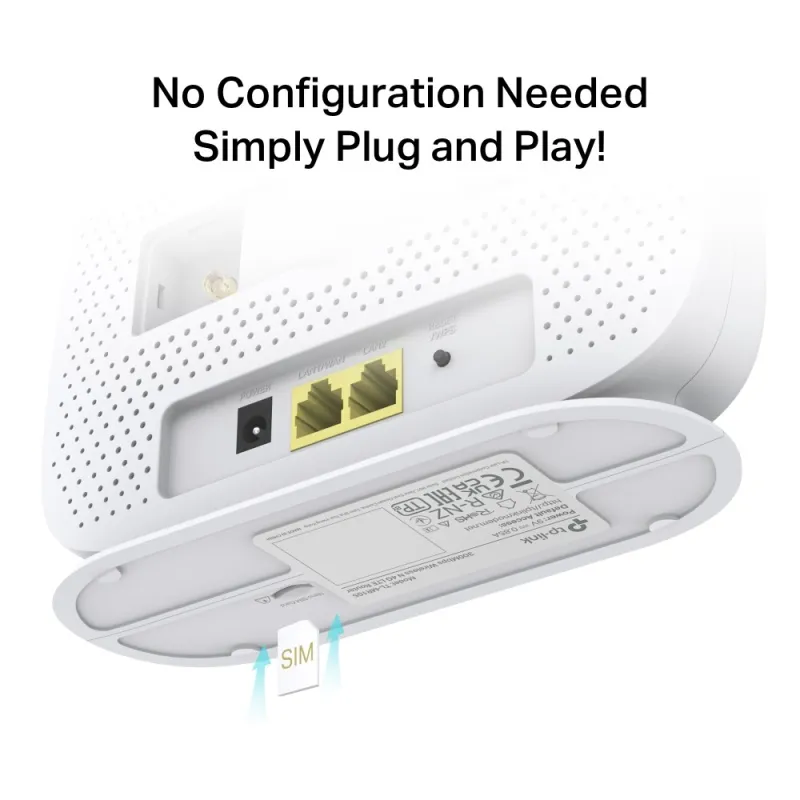

1 Micro SIM Card Slot |
|---|
Button | Reset/WPS Button |
|---|
External Power Supply | 9V/0.85A |
|---|
Dimensions ( W x D x H ) | 6.85×5.12×2.36 in (174×130×60 mm) |
|---|
Antenna | 2× Internal 4G/3G Antennas
2× Internal Wi-Fi Antennas
2× External 4G/3G Antenna Ports |
|---|
WIRELESS FEATURES |
|---|
Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
|---|
Frequency | 2.4 GHz |
|---|
Signal Rate | 300 Mbps at 2.4 GHz |
|---|
Reception Sensitivity |
11g 54M: -74dBm
11n HT20: -73dBm
11n HT40: -70dBm
|
|---|
Transmit Power | CE: <20dBm(2.4GHz) |
|---|
Wireless Functions | Enable/Disable Wireless Radio, WMM,
Wireless Statistics |
|---|
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
|---|
Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Bandwidth Control |
|---|
Operating Modes | 3G/4G Router, Wireless Router |
|---|
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
|---|
Management | Local Management, Remote Management |
|---|
DHCP | Server, Client, DHCP Client List, Address Reservation |
|---|
Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
|---|
Dynamic DNS | TP-Link, DynDns, NO-IP |
|---|
| | |
|---|
Access Control | Parental Control, Local Management Control |
|---|
Firewall Security | IPv4 SPI Firewall, IP and MAC Address Binding |
|---|
Protocols | Supports IPv4 and IPv6 |
|---|
Guest Network | 2.4GHz guest network x 1 |
|---|
| | |
|---|
OTHERS |
|---|
Certification | CE, RoHS |
|---|
| | |
|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Nano SIM Card |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
รับประกัน | 3 ปี |
| |
