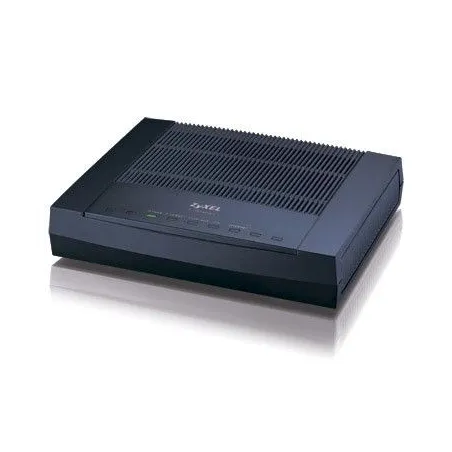

    Zyxel P-791R-V2 G.SHDSL.bis Router อุปกรณ์เชื่อมเครือข่ายแบบ Bridge Point To Point ความเร็ว 5.69Mbps

    ZyXel

    Zyxel P-791R-V2 G.SHDSL.bis Router อุปกรณ์เชื่อมเครือข่าย Point-To-Point ผ่านสายโทรศัพท์ รองรับระยะ 5Km ความเร็วสูงสุด 5.69 Mbps ระยะทางสูงสุด 5Km มาตรฐาน G.991.2 + Annex A + Annex F ?

    ฿6,300.00
    ยังไม่ได้รวมภาษี
    จำนวน
    Out-of-Stock


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    User Guide Manual
    Datasheet
    Quick Starter Guide

    Product Specification

    Overview

    Zyxel P-791R-V2 G.SHDSL.bis Router อุปกรณ์เชื่อมเครือข่าย Point-To-Point ผ่านคู่สายโทรศัพท์ รองรับระยะได้สูงสุด 5 กิโลเมตร ความเร็วสูงสุด 5.69 Mbps รองรับมาตรฐาน G.991.2 + Annex A + Annex F

    การใช้งาน

    เชื่อมต่อระหว่างอาคารแบบ Point-To-Point ผ่านสายโทรศัพท์ระยะไม่เกิน 5 กม.
    ใช้เป็น Router แชร์ Internet

    Downstream/ Upstream

    ความเร็วสูงสุด Downstream และ Upstream 5.69 Mbps (Symmetric Rate)

    Lan Interface

    1 Port RJ45 ความเร็ว 10/100Mbps เชื่อมต่อระบบแลน

    DSL interface

    1 Port แบบ RJ-11 เชื่อมต่อรระบบ G.SHDSL

    G.SHDSL Compliance

    ITU-T 991.2 G.SHDSL and G.SHDSL.bis
    Symmetric data transmission speed up to 5.69 Mbps
    Auto-negotiation rate adaptation and manually rate configuration
    Server/Client mode selectable

    ATM Protocol

    ATM Forum UNI 3.1/4.0 PVC
    Support up to 8 PVCs
    RFC 1483/2684 Multiple Protocol over AAL5
    RFC 2364 PPP over AAL5
    RFC 2516 PPP over Ethernet
    LLC and VC Multiplexing
    ITU-T 1.610 OAM F4/F5
    ATM QoS CBR, UBR, VBR-nrt

    Firewall Security

    Packet Filtering
    User Authentication (PAP, CHAP) with PPP (RFC 1334, RFC 1994)
    Microsoft CHAP

    Network Protocol

    IEEE 802.1d Transparent Bridging
    IP Routing: TCP, UDP, ICMP, ARP
    RIP v1 and RIP v2
    IP Multicast IGMP v1/v2

    IP Management

    SUA/Multi-NAT Internet Sharing
    NAT server (Port forwarding)
    VPN (IPSec, PPTP) Pass-through
    SIP ALG Pass-through
    Multimedia Applications Support
    DHCP Server/Relay/Client
    DNS Proxy
    Dynamic DNS
    UPnP Support

    Network Protocol

    Web-based Configuration
    FTP/TFTP for Firmware and Configuration Upgrade/Backup
    Telnet Management
    SNMP Support
    Built-in Diagnostic Tools

    Power

    12V DC

    Dimension

    180(W) x 127(D) x 36(H) mm

    Weight

    286.5g

    Warranty

    2 ปี (Carry In)



    รูปแบบการใช้งาน

    Zyxel P-791R-V2 G.SHDSL.bis Router

    Zyxel P-791R-V2 G.SHDSL.bis Router
