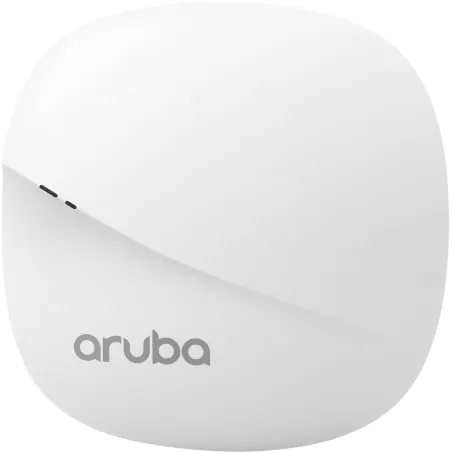

HPE Aruba AP-303 (RW) (JZ320A) Unified Wireless Access Point 802.11ac Wave 2 Dual-Band 867/300Mbps รองรับทำงานแบบ Stanalone, ประกัน Life Time
HPE Aruba AP-303 (RW) (JZ320Z) Datasheet
Product Specification |
|
Overview |
HPE Aruba AP-303 (RW) (JZ320A) Unified Wireless Access Point 802.11ac Wave 2 Dual-Band 867/300Mbps Unified AP – deploy with or without controller อุปกรณ์รองรับ POE (Not include Adpter) |
WI-FI RADIO SPECIFICATIONS |
|
AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and 2.4GHz 802.11n 2x2 MIMO |
|
|
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio |
Supported frequency bands (country-specific restrictions apply): |
2.400 to 2.4835GHz |
|
Available channels: Dependent on configured regulatory domain |
|
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum |
Supported radio technologies: |
802.11b: Direct-sequence spread-spectrum (DSSS) |
Supported modulation types: |
802.11b: BPSK, QPSK, CCK |
Transmit power: |
Configurable in increments of 0.5dBm |
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): |
2.4GHz band: +21dBm (18dBm per chain) |
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks |
|
Supported data rates (Mbps): |
802.11b: 1, 2, 5.5, 11 |
WI-FI ANTENNAS |
AP-303: Internal antenna models. Two vertically polarized dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.3dBi (2.4GHz) and 5.9dBi (5GHz) per antenna. The antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. Combining the patterns of both antennas per radio, the peak gain of the average (effective) pattern is 2.1dBi in 2.4GHz and 4.6dBi in 5GHz. |
OTHER INTERFACES |
|
POWER SOURCES AND CONSUMPTION |
The AP supports direct DC power and Power over Ethernet (PoE)
AP-303 models: (อุปกรณ์รองรับไฟผ่าน POE หากไม่มี Switch POE ต้องซื้อ Power Injection หรือ Adapterเพิ่ม)
AP-303P models:
|
MOUNTING |
The AP ships with a (black) mount clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling. Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details. |
MECHANICAL |
Dimensions and weight (unit, excluding mount accessories):
Dimensions and weight (shipping):
|
ENVIRONMENTAL |
Operating:
Storage and transportation:
|
REGULATORY |
FCC/ISED |
RELIABILITY |
MTBF: 795khrs (91yrs) at +25C operating temperature |
CERTIFICATIONS |
CB Scheme Safety, cTUVus |
MINIMUM SOFTWARE VERSIONS |
AP-303 models: ArubaOS & Aruba InstantOS 8.3.0.0 |
Warranty |
Life Time Carry-in Warranty by HPE Thailand (5 ปีหลังเลิกผลิต) |
