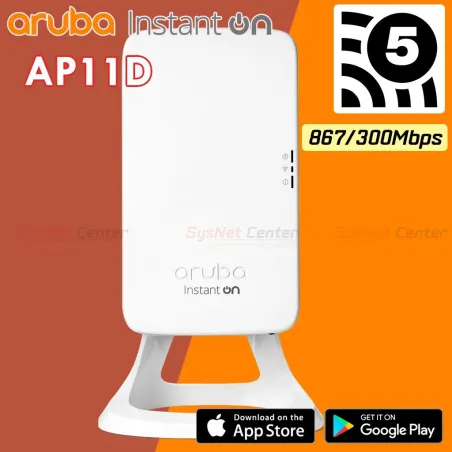

Aruba Instant On AP11D (RW) 2x2 11ac Wave2 Indoor Access Point 1167Mbps

Product Specification

Overview

Aruba Instant On AP11D (RW) 2x2 11ac Wave2 Indoor Access Point 1,600Mbps (867Mbps@5GHz, [email protected]) รองรับ Smart Mesh, บริหารจัดการอุปกรณ์ และ Monitor ด้วย Instant On Mobile App และ Cloud-based Web Portal (Free)

Smart Mesh technology
802.11ac Wave 2, 2X2:2 MU-MIMO technology
Remote management and monitoring capability
Separate guest and employee Wi-Fi networks
Mobile app in multiple languages and cloud portal
Easy client/device blocking
Built-in DHCP/NAT support
App bandwidth limiting per network/user session

RADIOS

Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

INTERFACES

Uplink Gigabit Ethernet port (E0), with POE-in support (802.3at/802.3af)
Downlink Gigabit Ethernet ports (E1-E3), with POE-out on E3 (802.3af) (3)
DC power connector (48V)
USB host interface (future use)
Bluetooth Low Energy (BLE) radio
LED Status indicators (3)
Reset/LED control button
Kensington security slot

PHYSICAL SPECIFICATIONS

86mm x 40mm x 150mm
Weight: 313g excluding mount accessories

POWER

Power over Ethernet (PoE) on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, POE-out on E3 is disabled
Max power consumption (worst-case): 9.7W (PoE/DC) or 25.3W PoE PSE (302.3at PoE/DC)
DC power (48V): no restrictions
Note: Power sources are sold separately

ANTENNAS

Integrated directional antennas with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz

MOUNTING

The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)

ENVIRONMENTAL & RELIABILITY

Operating Temperature: 0° C to +40° C (+32° F to +104° F)
MTBF: 1,090khrs (124yrs) at +25° C

INDUSTRY CERTIFICATIONS

UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3

MANAGEMENT OPTIONS

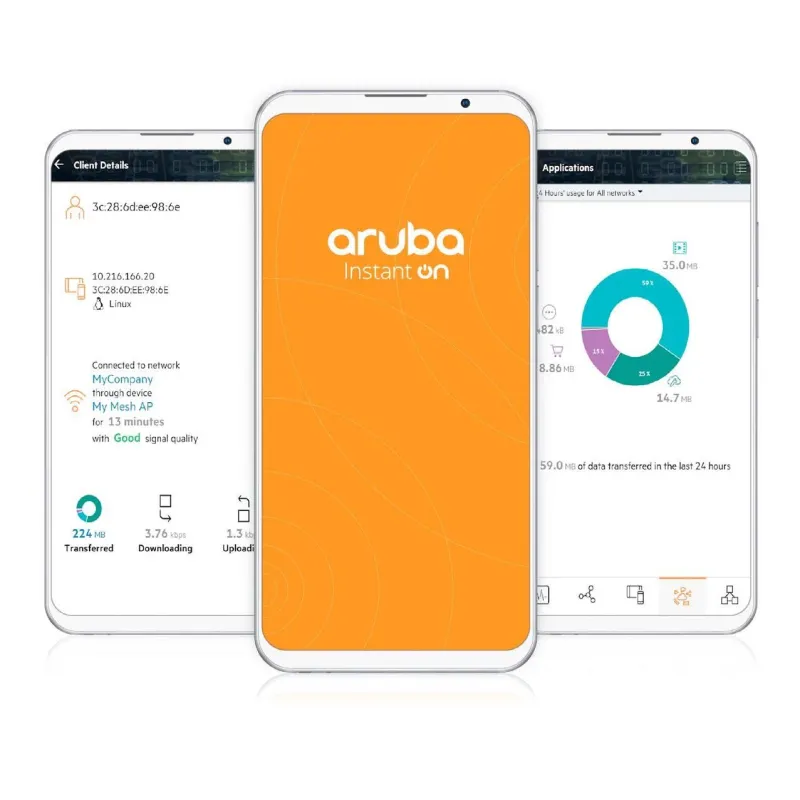

Instant On mobile application (Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com

IN THE BOX

Aruba Instant On AP11D Desk/Wall Access Point
Aruba Instant On AP11D Quick Start Guide
Single-gang mount kit
Desk mount kit with RJ45 jumper cable
Ethernet cable

Warranty

2 ปี
