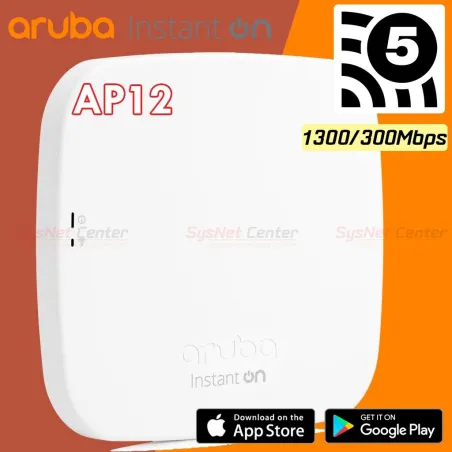

Aruba Instant On AP12 (RW) 3x3 11ac Wave2 Indoor Access Point 1600Mbps

Product Specification

Overview

Aruba Instant On AP11 (RW) 2x2 11ac Wave2 Indoor Access Point รองรับ Smart Mesh, Manage ด้วย Instant On Mobile App และ Cloud-based Web Portal (Free)

Smart Mesh technology
802.11ac Wave 2, 2X2:2 MU-MIMO technology
Remote management and monitoring capability
Separate guest and employee
Wi-Fi networks
Mobile app in multiple languages and cloud portal
Easy client/device blocking
Built-in DHCP/NAT support
App bandwidth limiting per network/user session

RADIOS

Dual radio for simultaneous dual-band operation
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

INTERFACES

Uplink Gigabit Ethernet port, with PoE-in support (802.3af)
DC power connector (12V)
Bluetooth Low Energy (BLE) radio
LED status indicators (2)
Reset/LED control button
Kensington security slot

PHYSICAL SPECIFICATIONS

152mm x 152mm x 34mm, excluding mount accessories
Weight: 193g

POWER

Power over Ethernet (POE): 802.3af (class 3)
Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
DC power (12V) (Not Include)
Note: Power sources are sold separately

ANTENNAS

Integrated down-tilt omni-directional antennas with maximum individual antenna gain of 3.3dBi in 2.4GHz and 5.8dBi in 5GHz

MOUNTING

The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)

ENVIRONMENTAL & RELIABILITY

Operating temperature: 0° C to +40° C
(+32° F to +104° F)
MTBF: 795khrs (91yrs) at +25° C

INDUSTRY CERTIFICATIONS

UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3

MANAGEMENT OPTIONS

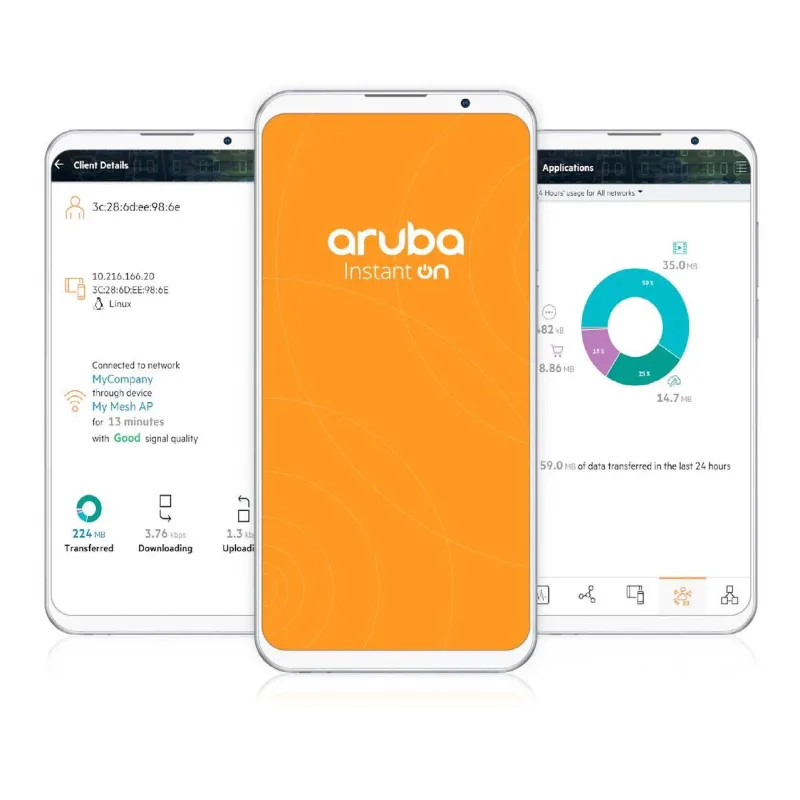

Instant On mobile application (Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com

IN THE BOX

Aruba Instant On AP11 Indoor
Access Point
Aruba Instant On AP11 Quick Start guide
Ceiling rail mount clip
Ethernet cable
Solid surface mount clip

Warranty

2 ปี
