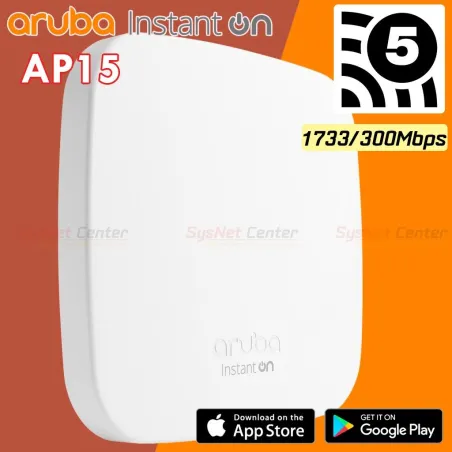

Aruba Instant On AP15 (RW) 4x4:4 11ac Wave2 Indoor Access Point 2,033Mbps

Product Specification

Overview

Aruba Instant On AP15 (RW) 4x4:4 11ac Wave2 Indoor Access Point ความเร็วสูงสุด 2,033Mbps (1,733Mbps@5GHz/ [email protected]) รองรับ Smart Mesh, Manage ด้วย Instant On Mobile App และ Cloud-based Web Portal (Free)

Smart Mesh technology
802.11ac Wave 2, 4X4:4 MU-MIMO technology
Remote management and monitoring capability
Separate guest and employee Wi-Fi networks
Mobile app in multiple languages and cloud portal
Easy client/device blocking
Built-in DHCP/NAT support
App bandwidth limiting per network/user session

RADIOS

Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 4x4 MIMO for up to 1,733 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

INTERFACES

Uplink Gigabit Ethernet port, with PoE-in support (802.3af)
DC power connector (12V)
USB host interface (future use)
Bluetooth Low Energy (BLE) radio
LED status indicators (2)
Reset/LED control button
Kensington security slot

PHYSICAL SPECIFICATIONS

183mm x 183mm x 41mm, excluding mount accessories
Weight: 674g

POWER

Power over Ethernet (POE): 802.3af (class 3)
Max power consumption (worst-case): 14.4W (PoE), 12.7W (DC)
DC power (12V)
Note: Power sources are sold separately

ANTENNAS

Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz

MOUNTING

The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)

COMPLIANCE AND SAFETY

UL2043 plenum rating

ENVIRONMENTAL & RELIABILITY

Operating Temperature: 0° C to +50° C (+32° F to +122°F)
MTBF: 916khrs (105yrs) at +25° C

INDUSTRY CERTIFICATIONS

UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3

MANAGEMENT OPTIONS

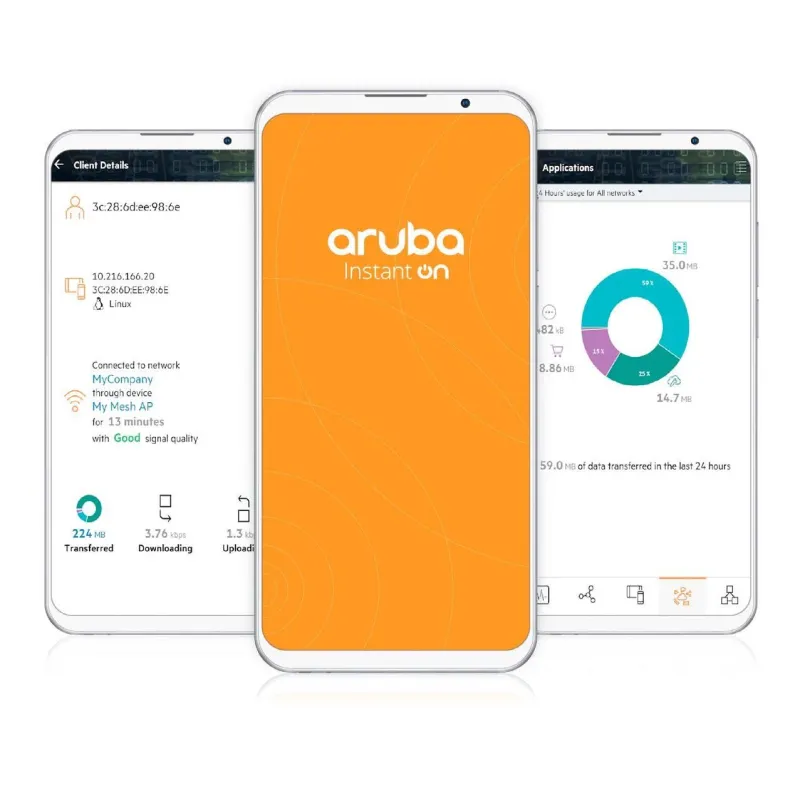

Instant On mobile application (Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com

IN THE BOX

Aruba Instant On AP15 Indoor Access Point
Aruba Instant On AP15 Quick Start guide
Ceiling rail mount clip
Solid surface mount clip
Ethernet Cable

Warranty

2 ปี
