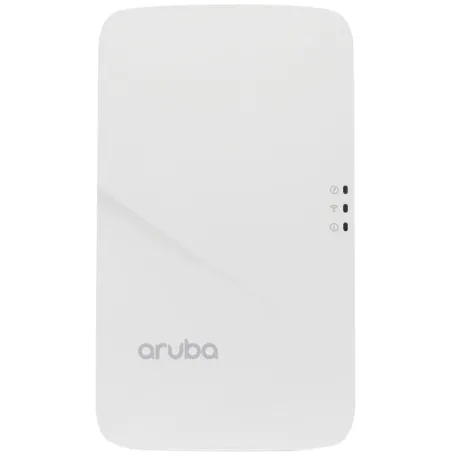

Aruba AP-303H (RW) Unified Access Point 11ac Wave 2 Dual-Band 867/300Mbps

Product Specification

Overview

HPE Aruba AP-303H (RW) (JY678A) Unified Wireless Access Point 802.11ac Wave 2 Dual-Band 867/300Mbps รองรับการทำงานแบบ Standalone

Unified AP – Deploy with or without controller
Dual Radio 2x2:2 802.11ac access point with Multi-User MIMO (wave 2)
Built-in Bluetooth Low-Energy (BLE) radio
Advanced Cellular Coexistence (ACC)
Quality of service for unified communications applications
RF Management
Spectrum analysis

อุปกรณ์รองรับ POE (Not include Adpter)

WI-FI RADIO SPECIFICATIONS

AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and 2.4GHz 802.11n 2x2 MIMO
Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
5GHz: Two spatial stream Multi User (MU) MIMO for up to 867Mbps wireless data rate to up to two (1x1 VHT80) MU-MIMO capable client devices simultaneously
5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 300Mbps wireless data rate to individual 2x2 HT40 client devices
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply):

2.400 to 2.4835GHz
5.150 to 5.250GHz
5.250 to 5.350GHz
5.470 to 5.725GHz
5.725 to 5.850GHz

Available channels: Dependent on configured regulatory domain

Supported radio technologies:

802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

Supported modulation types:

802.11b: BPSK, QPSK, CCK
802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Maximum (conducted) transmit power (limited by local regulatory requirements):

2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
5GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain

Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20MHz, 40MHz and 80MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range

Supported data rates (Mbps):

802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11n/ac packet aggregation: A-MPDU, A-MSDU

WI-FI ANTENNAS

Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. The horizontal beamwidth is roughly 120 degrees.

Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)

Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE

Local: Three 10/100/1000BASE-T Ethernet (RJ-45, bottom)

Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
One port: PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE
Passive pass-through interface (two RJ-45, back and bottom)

Bluetooth Low Energy (BLE) radio

Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity
Integrated antenna with moderately directional pattern and peak gain of 0.9dBi

USB 2.0 host interface (Type A connector)

3G/4G cellular modems
Device battery charging port
Capable of supplying up to 1A/5 watts of power to an attached device

DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length

Visual indicators (LEDs):

Power/system status
Radio status
PoE-PSE status
Local network port status (3x)

AP-303H Dimensions/weight (unit, including single-gang wall box mount plate):

86mm (W) x 40mm (D) x 150mm (H)
350g

Operating:

Temperature: 0° C to +40° C (+32° F to +104° F)
Humidity: 5% to 93% non-condensing

Storage and transportation:

Temperature: -40° C to +70° C (-40° F to +158° F)

REGULATORY

FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2

Warranty

Life Time Carry-in Warranty by HPE Thailand (5 ปีหลังเลิกผลิต)
