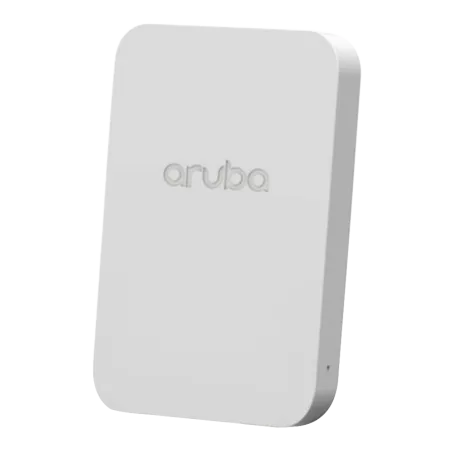

Aruba AP-203H (RW) Unified Access Point 802.11ac Dual-Band 867/400Mbps

Product Specification

Overview

HPE Aruba AP-203 (RW) (JY693A) Unified Wireless Access Point 802.11ac 2x2:2 Dual-Band 867/300Mbps

Unified AP – deploy with or without controller
Dual Radio 2x2 802.11ac access point
Built-in Bluetooth Low-Energy (BLE) radio
Advanced Cellular Coexistence (ACC)
Quality of service for unified communications applications
RF Management
Spectrum analysis

อุปกรณ์รองรับ POE (Not include Adpter)

AP-203H SERIES SPECIFICATIONS

Unified flexible radio 802.11ac 2x2:2SS hospitality and branch AP with internal antennas
Supports wall-box and desk mount deployments

WI-FI RADIO SPECIFICATIONS

AP type: Indoor, flexible radio:

• 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO¹, or
• 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x11

Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)

5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices

2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)

Support for up to 32 associated client devices per radio, and up to 8 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply):

• 2.400 to 2.4835GHz
• 5.150 to 5.250GHz
• 5.250 to 5.350GHz
• 5.470 to 5.725GHz
• 5.725 to 5.850GHz

Available channels: Dependent on configured regulatory domain

Dynamic frequency selection (DFS) optimizes the use of available RF spectrum

Supported radio technologies:

• 802.11b: Direct-sequence spread-spectrum (DSSS)
• 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

Supported modulation types:

• 802.11b: BPSK, QPSK, CCK
• 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Transmit power: Configurable in increments of 0.5 dBm

Maximum (conducted) transmit power (limited by local regulatory requirements):

• 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2 mode)
• 5GHz band: +16 dBm per chain, +19 dBm aggregate (2x2 mode)
• Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain

Maximum ratio combining (MRC) for improved receiver performance

Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

Short guard interval for 20MHz, 40MHz and 80MHz channels

Space-time block coding (STBC) for increased range and improved reception

Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

Transmit beam-forming (TxBF) for increased signal reliability and range (2x2 mode)

Supported data rates (Mbps):

• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• 802.11n: 6.5 to 300 (MCS0 to MCS15)

802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

802.11n high-throughput (HT) support: HT 20/40

802.11ac very high throughput (VHT) support: VHT 20/40/80

802.11n/ac packet aggregation: A-MPDU, A-MSDU

WI-FI ANTENNAS

Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 4.9dBi in 2.4GHz and 6.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. The horizontal beamwidth is roughly 120 degrees.

Combining the patterns of each of the antennas of the MIMO radios (in 2x2 mode), the peak gain of the effective per-antenna pattern is 2.3dBi in 2.4GHz and 3.4dBi in 5GHz.

OTHER INTERFACES

Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)

• Auto-sensing link speed and MDI/MDX
• 802.3az Energy Efficient Ethernet (EEE)
• PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE

Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom

Auto-sensing link speed and MDI/MDX

802.3az Energy Efficient Ethernet (EEE)

Passive pass-through interface (two RJ-45, back and bottom)

• USB host interface (Type A connector)
• For Aruba LS-BT1USB BLE radio modules only

Visual indicators (LEDs):

• Power/system status
• Radio status
• Local network port status

Reset/LED control button (“paperclip access”)

• Factory reset (when activated during device power up)
• LED control: toggle off/normal

Serial console interface (custom, uUSB physical jack)

ENCRYPTED THROUGHPUT

Maximum IPsec encrypted wired throughput: 20Mbps

POWER SOURCES AND CONSUMPTION

The AP is powered through Power over Ethernet (PoE)

An optional PoE power injector is sold separately

Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source

Maximum (worst-case) power consumption: 7.4W.

Includes up to 100mW for an attached USB BLE module

Maximum (worst-case) power consumption in idle mode: 3.9W.

MOUNTING

The AP ships with a mounting plate to attach the AP to a single-gang wall-box (most international variations covered). The AP securely attaches to the plate; a custom security tool to remove the AP from the plate ships with the product.

Several optional mount kits are available to attach the AP to a dual-gang wall-box, directly to the wall, or to support desk mounting.

MECHANICAL

Dimensions/weight (unit,including single-gang wall box mount plate):

• 86mm (W) x 26.5mm (D) x 140mm (H)
• 225g

Dimensions/weight (shipping):

• 115mm (W) x 47mm (D) x 165mm (H)
• 290g

ENVIRONMENTAL

Operating:

• Temperature: 0° C to +40° C (+32° F to +104° F)
• Humidity: 5% to 93% non-condensing

Storage and transportation:

• Temperature: -40° C to +70° C (-40° F to +158° F)

REGULATORY

FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.

RELIABILITY

MTBF: 780,000 hours (89 years) at +25C° operating temperature

REGULATORY MODEL NUMBER

AP-203H-xx (all variants): APINH203

CERTIFICATIONS

CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

รับประกัน

Life Time Carry-in Warranty by HPE Thailand (5 ปีหลังเลิกผลิต)
