Product Specification
|
|
Overview
|

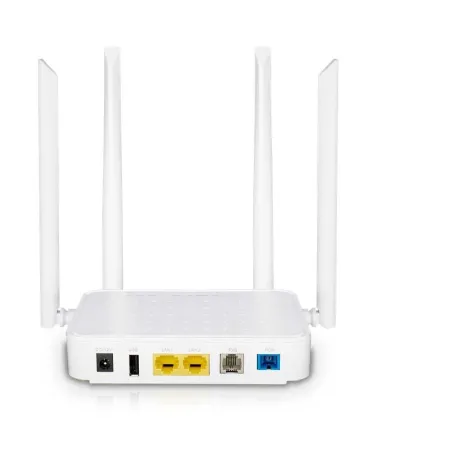

BDCOM GP1705-2GV FTTH/O xPON ONU, 1 GPON/EPON port (SC/UPC), 2GE, 1 POTS, 1 USB, external four WiFi antennas(1200M WiFi), plastic hull, DC12V/1.5A external adaptor
|
|
PON ports
|
1 SC/UPC
|
|
UNI ports
|
2 GE TX
|
|
WIFI
|
1200Mbps
|
|
Voice
|
1 |
|
USB
|
1 |
|
Optical power
|
TX power: 0.5~5dBm
RX sensitive: <-28dBm
|
|
AC adaptor
|
Input: 100-240V AC
Output: 12V/1.5A
|
|
Max. consumption (W)
|
15 |
|
Dimensions (WxDxH mm)
Weight(Kg)
|
140 x 105 x 30
0.3
|
|
Operating
|
Temperature: -0℃ -45℃
Humidity: 10%~85% (non-condensing )
|
|
Storage
|
Temperature: -40℃ -85℃
Humidity: 5%-95% (non-condensing )
|
|
Technical Specifications
|
|
|
Standards
|
ITU-T G.984/G.988
IEEE802.3ah
GBT33845-2017, YD/T 1475-2006
IEEE 802.1Q, VLAN
ITU-T Y.1291
|
|
VLAN
|
4K VLAN
Port based VLAN
IEEE 802.1Q VLAN
Tag/Transparent/Aggregation/Trunk/Translation mode VLAN
CTC2.0 defined VLAN
|
|
IP Service
|
DHCP server/client
Routing/Bridging/Hybrid mode
DNS, DDNS
PPPOE
NAT/NAPT
|
|
xPON Service
|
AES128 algorithm encryption
MAC/Loid/Hybrid authentication
|
|
QoS
|
Backpressure flow control (half-duplex)
IEEE 802.3x flow control (full duplex)
Against Head of Line mechanism
IEEE 802.1p, CoS
Four priority queues on each port
WR, SP and FIFO queue schedule algorithms
Port rate limit
SLA and DBA
|
|
Reliability
|
Management modes including CLI, HTTP, SNMP, TR069 and TELNET
Software upgrade through TFTP and WEB, OMCI, etc.
Local or server syslog
|
|
Voice Service
|
SIP, T.38 FAX
Three-way calling
Call waiting
Hot-line calling
|
|
Network Security
|
MAC address number limit
MAC filter
Port protect
|
|
Multicast
|
IGMP-Snooping
CTC defined dynamic multicast function
MLD-Snooping
Multicast group limitation
Multicast fast-leave
|
|
Reliability
|
Loop detection
Dying-Gasp
TX/RX optical power alarm
|
|
Wireless
|
802.11b/g/n/ac
2x2 MIMO
Multi SSID
SSID encryption
Wireless channel
(configurable)
|
|
