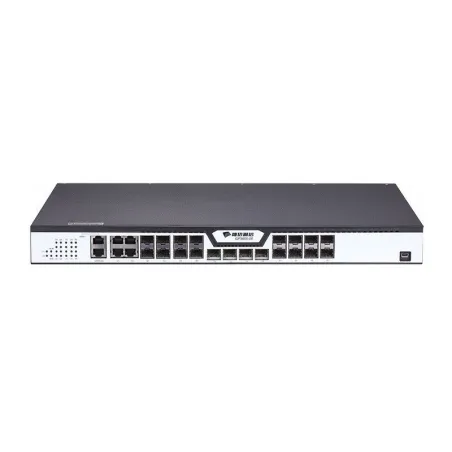

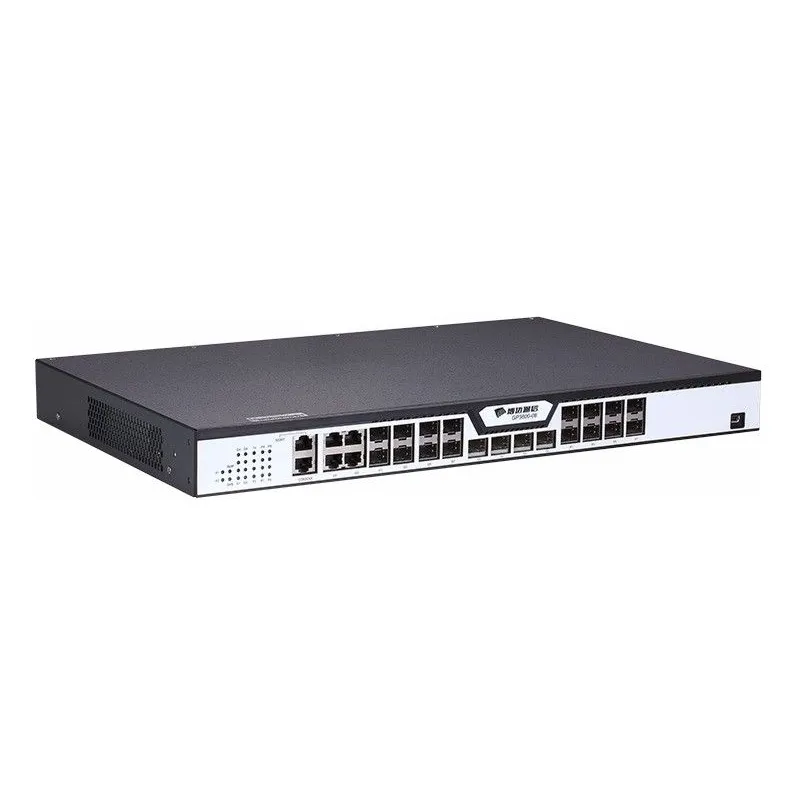

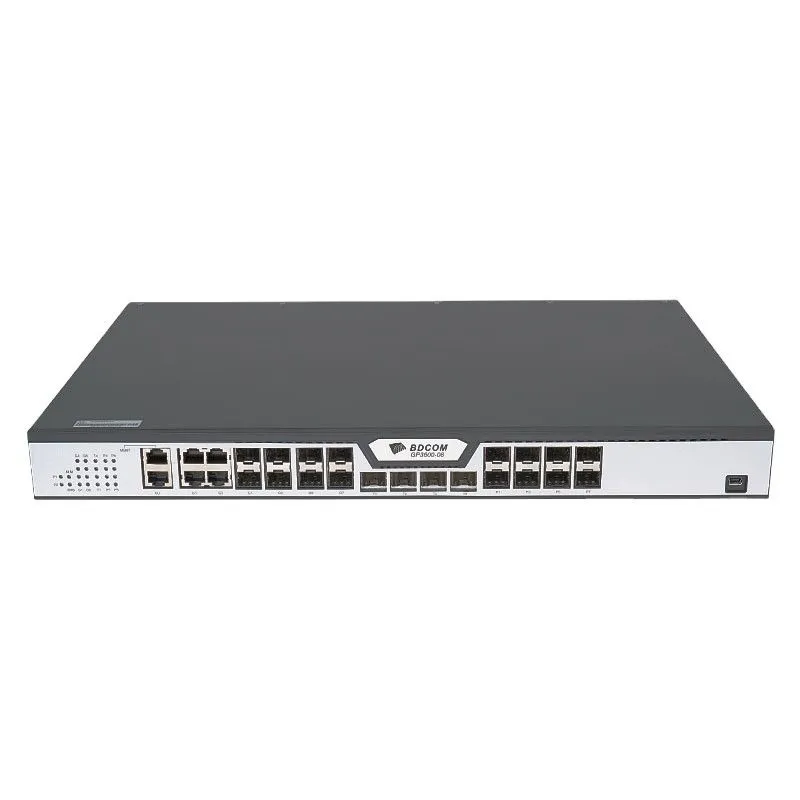

BDCOM GP3600-08B GPON 8 Port L3 Headend (OLT)

BDCOM

BDCOM GP3600-08B GPON 8 Port L3 Headend (OLT) สำหรับระบบ FTTx, 4 Port Gigabit Optical, 4 Port Gigabit Combo Ports, 4 Port SFP+ Ports

฿67,900.00
ยังไม่ได้รวมภาษี
จำนวน
5 รายการ

Rating:
(0)


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

Click ขอใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



รายละเอียด

BDCom GP3600 Series Datasheet

Overview:

  • BDCOM GP3600 supports the Asymmetric uplink 1.25Gbps/downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.
  • Its coupling ratio ups to 1:128, and its support of different hybrid ONU networks minimize the carrier's investment.
  •   BDCOM GP3600, based on the edge-cutting technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.

Features:

  • GPON : Abiding by ITU-T G.984/G.988, BDCOM GP3600 series OLTmeets relevant requirements of GPON OLT regulated in Network Access Technical Requirementsand China Telecom GPON Technical Requirements-CTC2.0;
  • SystemCapacity: GP3600 series supports maximum 16 GPON ports.
  • Uplink Interface: GP3600 series with 4 gigabit SFP ports, 4 gigabit combo ports, and 4 10G SFP+ ports.
  • Dimensions: 1U, occupies a small space.
  • Environmental Protection: low power consumption and low operating cost.
  • Bus Optical Fiber Protection: the link can be automatically switched when trouble occurs in the optical fiber;
  • Power Characteristics: supports dual-AC, dual-DC and AC/DC power supply. The power supply supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment.  BDCOM GP3600 complies with ITU-T G.984/G.988 and meets requirements about GPON OLT inNetwork Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers.



Product Specification

Overview

BDCOM GP3600-08B GPON 8 Port L3 Headend (OLT) สำหรับระบบ FTTx, 4 Port Gigabit Optical, 4 Port Gigabit Combo Ports, 4 Port SFP+ Ports

Product Code

BDCOM-GP3600-08

Attributes

GP3600-08

System Capacity

Maximum coupling ratio:1:128

Backplane bandwidth:205G

MAC table capacity: 64K

Interface PON

8

Interface Uplink interface

4 gigabit SFP slots, 4 gigabit TX/SFP combo ports

4 10G SFP+ slots

Attributes of the PON Interface

The transmission rate with downlink 2.5Gbps/uplink 1.25Gbps

Class B and Class C GPON module

Security: ONU authentication mechanism

Standards

ITU-T G.984/G.988

IEEE 802.1D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP)

Ethernet - II

QoS

Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE 802.1p, CoS

WRR, SP and FIFO queue schedule

Limiting the uplink/downlink rate based on each ONU

DBA and SLA

VLAN

Port-based VLAN

QinQ and flexible QinQ

Multicast

L2 multicast

IGMP Snooping

MLD Snooping

Layer-3 routing functions

Static routing, RIP and OSFP, OSFP/OSPFv3

Reliability

Unidirectional Link Detection (UDLD)

Hot swap of the GPON optical module

Optical path protection of GPON (type B/C, hand-in-hand)

Abnormal luminescence ONU detection such as long luminescence

Network Security

Limiting the maximum number of users on each port

Port isolation

Packet storm control

Flow-based ACL access control function

Transmission data encryption on the PON interface

Configuration Management

Various management modes such as CLI, SNMP and telnet

Conducting software upgrade through TFTP/FTP

Debug output

Physical Characteristics

Dimensions mm (WxDxH): 442.5x304x 44

Installation: standard 19-inch rack-mount

Weight:5.25Kg

Environment

Operating environment: 0°C-45°C, 10%-85% non-condensation

Storage environment: -40°C-80°C, 5%-95% non-condensation

Power supply

Input voltage: AC90~240V, DC 36 ~ 72V

dual-power input, DC/AC power supply and hot-swap

การรับประกัน

3 ปี
