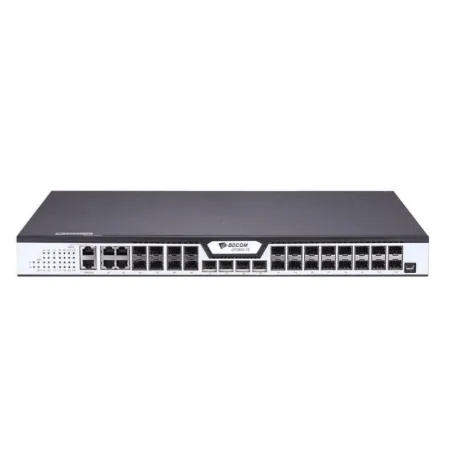

BDCOM GP3600-16B GPON 16 Port L3 Headend (OLT)

BDCOM GP3600-16B GPON 16 Port L3 Headend (OLT) for FTTx, 4x Gigabit Optical and 4x Gigabit Combo Ports, 4x SFP+ Ports

฿99,900.00
ยังไม่ได้รวมภาษี
จำนวน
ชิ้นสุดท้ายในสต็อก


ต้องการรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet

รายละเอียด

BDCom GP3600 Series Datasheet

Overview:

  • BDCOM GP3600 supports the Asymmetric uplink 1.25Gbps/downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.
  • Its coupling ratio ups to 1:128, and its support of different hybrid ONU networks minimize the carrier's investment.
  •   BDCOM GP3600, based on the edge-cutting technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.

Features:

  • GPON : Abiding by ITU-T G.984/G.988, BDCOM GP3600 series OLTmeets relevant requirements of GPON OLT regulated in Network Access Technical Requirementsand China Telecom GPON Technical Requirements-CTC2.0;
  • SystemCapacity: GP3600 series supports maximum 16 GPON ports.
  • Uplink Interface: GP3600 series with 4 gigabit SFP ports, 4 gigabit combo ports, and 4 10G SFP+ ports.
  • Dimensions: 1U, occupies a small space.
  • Environmental Protection: low power consumption and low operating cost.
  • Bus Optical Fiber Protection: the link can be automatically switched when trouble occurs in the optical fiber;
  • Power Characteristics: supports dual-AC, dual-DC and AC/DC power supply. The power supply supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment.  BDCOM GP3600 complies with ITU-T G.984/G.988 and meets requirements about GPON OLT inNetwork Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers.



Product Specification

Overview

BDCOM-GP3600-16B GPON 16 Port L3 Headend (OLT) สำหรับระบบ FTTx, 4 Port Gigabit Optical, 4 Port Gigabit Combo Ports, 4 Port SFP+ Ports

Product Code BDCOM-GP3600-16
Attributes GP3600-16
System Capacity Maximum coupling ratio:1:128
Backplane bandwidth:205G
MAC table capacity: 64K
Interface PON 16
Interface Uplink interface 4 gigabit SFP slots, 4 gigabit TX/SFP combo ports
4 10G SFP+ slots
Attributes of the PON Interface The transmission rate with downlink 2.5Gbps/uplink 1.25Gbps
Class B and Class C GPON module
Security: ONU authentication mechanism
Standards ITU-T G.984/G.988
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
IEEE 802.3ad physical link static/dynamic aggregation (LACP)
Ethernet - II
QoS Backpressure flow control (half duplex)
IEEE 802.3x flow control (full duplex)
IEEE 802.1p, CoS
WRR, SP and FIFO queue schedule
Limiting the uplink/downlink rate based on each ONU
DBA and SLA
VLAN Port-based VLAN
QinQ and flexible QinQ
Multicast L2 multicast
IGMP Snooping
MLD Snooping
Layer-3 routing functions Static routing, RIP and OSFP, OSFP/OSPFv3
Reliability Unidirectional Link Detection (UDLD)
Hot swap of the GPON optical module
Optical path protection of GPON (type B/C, hand-in-hand)
Abnormal luminescence ONU detection such as long luminescence
Network Security Limiting the maximum number of users on each port
Port isolation
Packet storm control
Flow-based ACL access control function
Transmission data encryption on the PON interface
Configuration Management Various management modes such as CLI, SNMP and telnet
Conducting software upgrade through TFTP/FTP
Debug output
Physical Characteristics Dimensions mm (WxDxH): 442.5x304x 44
Installation: standard 19-inch rack-mount
Weight:5.25Kg
Environment Operating environment: 0°C-45°C, 10%-85% non-condensation
Storage environment: -40°C-80°C, 5%-95% non-condensation

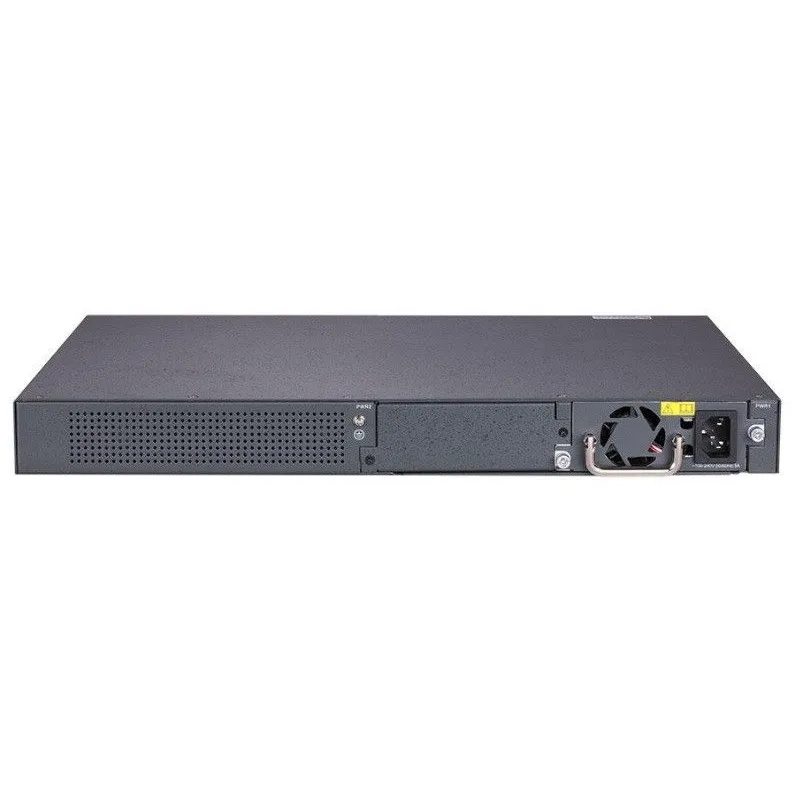

Power supply Input voltage: AC90~240V, DC 36 ~ 72V
dual-power input, DC/AC power supply and hot-swap

การรับประกัน

3 ปี
