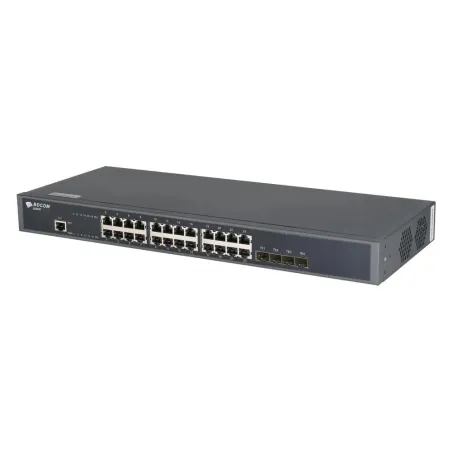

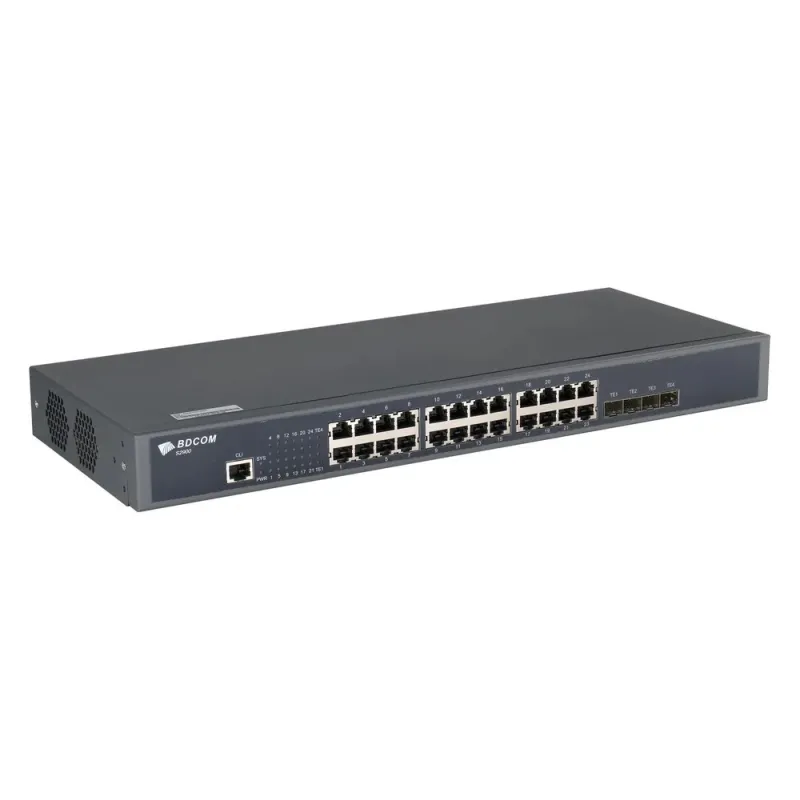

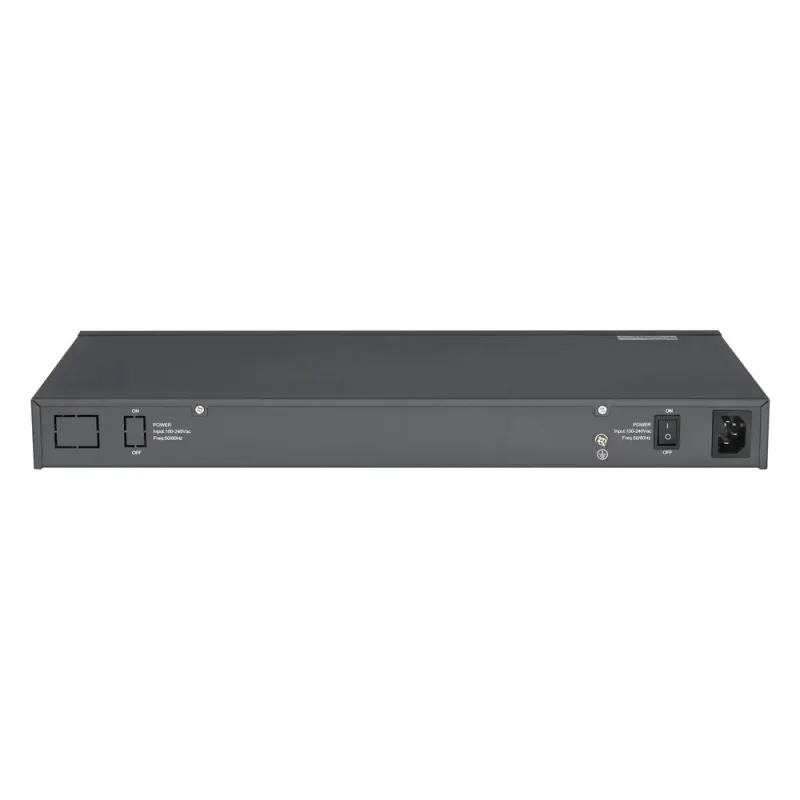

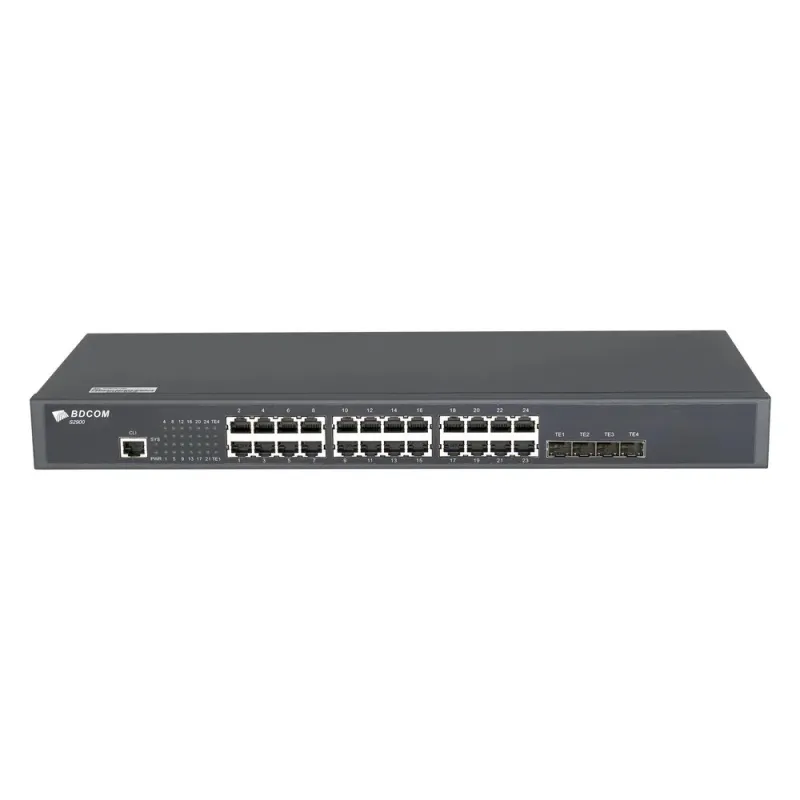

BDCom S2900-24T4X L3-lite Managed Switch 24 Port Gigabit, 4 Port SFP+

Overview

BDCom S2900-24T4X L3-lite Managed  24 Port Gigabit, 4 Port SFP+ 10 Gigabit

รองรับ VLAN, STP, IGMP Snooping, Static route/RIP/OSPF, LACP, VRRP, 802.1x, Dual Stack

Features

VLAN

4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice VLAN

Spanning Tree

802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)
BPDU guard, root guard and loopback guard

Multicast

IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

IP

Static route, IPv4/v6 dual stack

IPV6

ICMPv6, DHCPv6, ACLv6 and Ipv6 Telnet
IPv6 neighbor discovery,Path MTU discovery
MLD V1,MLD snooping IPv6 Static Routing,RIPng, OSPFv3
Manual tunnel,ISATAP tunnel,6 to 4 tunnel

Certification

CE, FCC, ROHS

QoS

CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Security

Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky
DHCP Snooping and option 82, DAI & IP source guard, PPPoE+, · IEEE 802.1x, Radius and BDTacacs+
L2/L3/L4 ACL flow identification and filtrationAnti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control
MD5, SHA-256, RSA-1024, AES256, etc.

DHCP

DHCP server/relay/client
DHCP snooping/option82

Reliability

Static/LACP link aggregation, Interface backup
EAPS and ERPS
ISSU uninterrupted system upgrade
BVSS,ups to 16-units per stack
VRRP
UDLD

Management

Console, Telnet, SSH v1/2, HTTP, HTTPS,SNMP v1/v2/v3, RMON
TFTP, FTP, SFTP
NTP
ZTP
SPAN, RSPAN
Dying gasp *

Environment

Operating temperature/ humidity: 0℃ -50℃ ,10%-90% non-condensing
Storage temperature/humidity:-20℃ -70℃ , 5%-95% noncondensing

Accessories

Power cord,rackmount kits, console cable

รับประกัน

3 ปี
