Overview
|

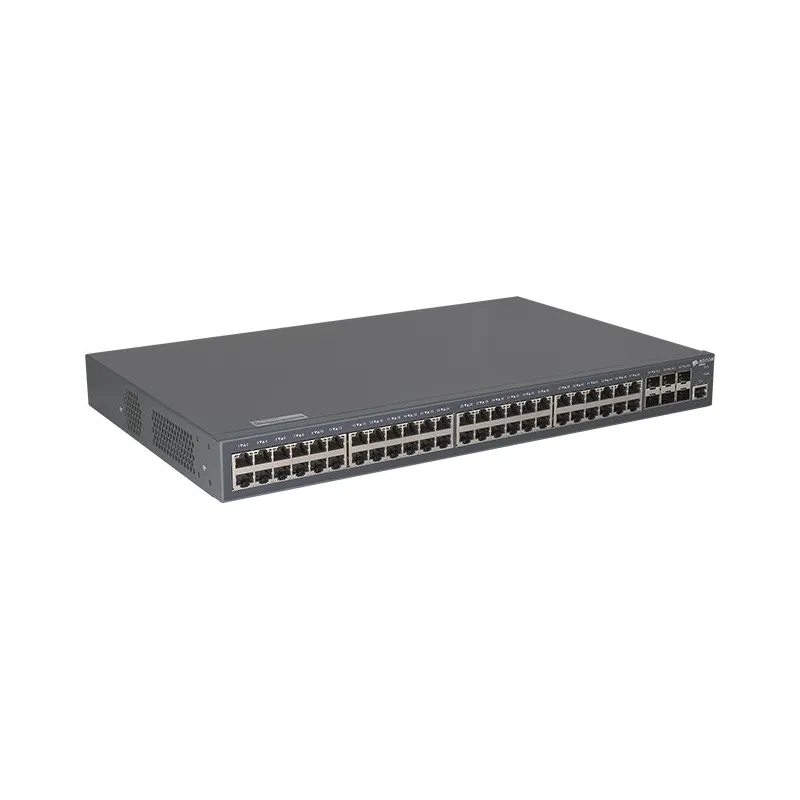

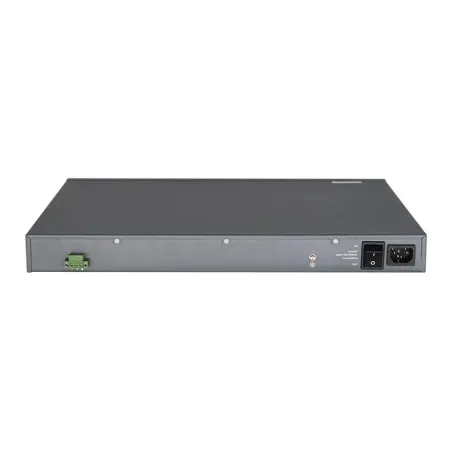

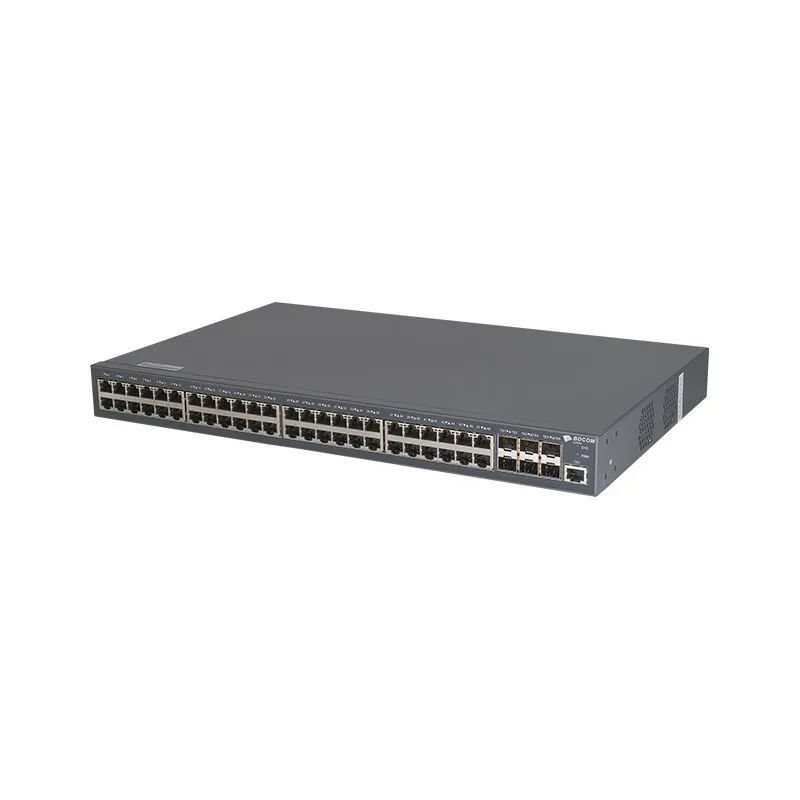

BDCom S2900-48T6X L3-lite Managed 48 Port Gigabit, 6 Port SFP+ 10 Gigabit
รองรับ VLAN, STP, IGMP Snooping, Static route/RIP/OSPF, LACP, VRRP, 802.1x, Dual Stack
|
| Interface |
48 GE TX 6 10GE/GE SFP+ |
| Console(RJ45) |
1 |
| Backplane(Gbps) |
216 |
| Forwarding rate (Mpps with 64 bytes) |
162 |
| Chassis |
|
| Dimensions (WxDxH)(mm) |
440x280x44 |
| Weight(KG)(empty) |
4.3 |
| Package |
|
| Dimensions (WxDxH)(mm) |
576x448x94 |
| Weight(KG) |
5.5 |
| Power consumption |
|
| no-load |
< 25W |
| full-load |
<48W |
| Power supply (AC: 100V-240V, DC: 36V-72V) |
50W |
| POE power budget |
/ |
| Total output BTU (1000BTU/H=293W) |
163.82 |
| Fan number |
2 |
| Noise@25°C(dBA) |
45 |
| MTBF(H) |
> 200,000 |
| Forwarding mode |
Store-forward |
| Flash (MB) |
16 |
| DRAM (MB) |
512 |
| MAC |
16K |
| Buffer size(MB) |
1.5 |
| Interface vlan |
64 |
| Routing table |
512 |
| Jumbo frame |
9K |
Features
|
|
VLAN
|
4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice VLAN
|
|
Spanning Tree
|
802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)
BPDU guard, root guard and loopback guard
|
|
Multicast
|
IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter
|
|
IP
|
Static route, IPv4/v6 dual stack
|
|
IPV6
|
ICMPv6, DHCPv6, ACLv6 and Ipv6 Telnet
IPv6 neighbor discovery,Path MTU discovery
MLD V1,MLD snooping IPv6 Static Routing,RIPng, OSPFv3
Manual tunnel,ISATAP tunnel,6 to 4 tunnel
|
|
Certification
|
CE, FCC, ROHS
|
|
QoS
|
CAR, HQoS, MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping
|
|
Security
|
Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky
DHCP Snooping and option 82, DAI & IP source guard, PPPoE+, · IEEE 802.1x, Radius and BDTacacs+
L2/L3/L4 ACL flow identification and filtrationAnti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control
MD5, SHA-256, RSA-1024, AES256, etc.
|
|
DHCP
|
DHCP server/relay/client
DHCP snooping/option82
|
|
Reliability
|
Static/LACP link aggregation, Interface backup
EAPS and ERPS
ISSU uninterrupted system upgrade
BVSS,ups to 16-units per stack
VRRP
UDLD
|
|
Management
|
Console, Telnet, SSH v1/2, HTTP, HTTPS,SNMP v1/v2/v3, RMON
TFTP, FTP, SFTP
NTP
ZTP
SPAN, RSPAN
Dying gasp *
|
|
Environment
|
Operating temperature/ humidity: 0℃ -50℃ ,10%-90% non-condensing
Storage temperature/humidity:-20℃ -70℃ , 5%-95% noncondensing
|
|
Accessories
|
Power cord,rackmount kits, console cable
|
|
รับประกัน
|
3 ปี
|
