Part Numbers
|

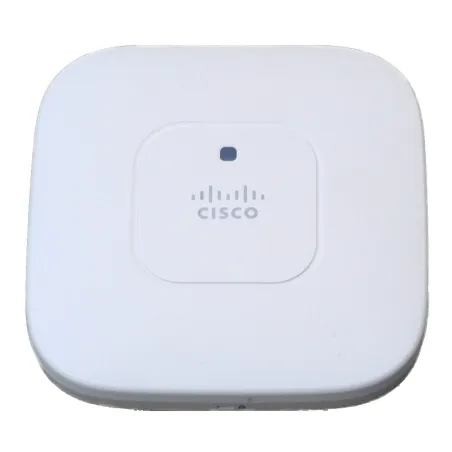

The Cisco Aironet 700 Access Point: Indoor environments, with internal antennas
?AIR-CAP702I-x-K9 - Dual-band controller-based 802.11a/g/n
?AIR-CAP702I-xK910 - Eco-pack (dual-band controller-based 802.11a/g/n) 10 quantity access points
?AIR-SAP702I-x-K9 - Dual-band stand-alone 802.11a/g/n
?AIR-SAP702I-xK9-5 - Multi-unit pack (dual-band stand-alone 802.11a/g/n) 5 quantity access points
Cisco SMARTnet? Service for the Cisco Aironet 700 Series Access Point with internal antennas
?CON-SNT-AIRCAP7x - SMARTnet 8x5xNBD 702i access point (dual-band 802.11 a/g/n) controller-based
(e.g. CON-SNT-AIRCAP7A for controller-based 702i internal antenna for A Domain)
Cisco Wireless LAN Services
Regulatory domains: (x = regulatory domain)
Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, please visit: http://www.cisco.com/go/aironet/compliance.
Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.
|
|
Software
|
?Cisco Unified Wireless Network Software Release 7.5 or later (controller-based)
?Cisco IOS ? Software (stand-alone)
|
|
Deployment Modes
|
?Controller-based, FlexConnect, Monitor, Converged Access and Autonomous
|
|
802.11n
|
?2 x 2 multiple-input multiple-output (MIMO) with two spatial streams
?Maximal ratio combining (MRC)
?PHY data rates up to 300 Mbps
?Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (/Rx)
?802.11 dynamic frequency selection (DFS)
?Cyclic shift diversity (CSD) support
|
|
Data Rates Supported
|
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11bg: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n data rates (2.4 GHz[1] and 5 GHz):
|
|
GI[3] = 800ns
|
GI = 400ns
|
|
20-MHz Rate (Mbps)
|
40-MHz Rate (Mbps)
|
20-MHz Rate (Mbps)
|
40-MHz Rate (Mbps)
|
|
6.5
|
13.5
|
7.2
|
15
|
|
13
|
27
|
14.4
|
30
|
|
19.5
|
40.5
|
21.7
|
45
|
|
26
|
54
|
28.9
|
60
|
|
39
|
81
|
43.3
|
90
|
|
52
|
108
|
57.8
|
120
|
|
58.5
|
121.5
|
65
|
135
|
|
65
|
135
|
72.2
|
150
|
|
13
|
27
|
14.4
|
30
|
|
26
|
54
|
28.9
|
60
|
|
39
|
81
|
43.3
|
90
|
|
52
|
108
|
57.8
|
120
|
|
78
|
162
|
86.7
|
180
|
|
104
|
216
|
115.6
|
240
|
|
117
|
243
|
130
|
270
|
|
130
|
270
|
144.4
|
300
|
|
Maximum Number of Nonoverlapping Channels
|
2.4 GHz
|
5 GHz
|
|
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
|
|
Receive Sensitivity (Combined sensitivity)
|
802.11b
–98 dBm @ 1 Mb/s
–95 dBm @ 2 Mb/s
–93 dBm @ 5.5 Mb/s
–91 dBm @ 11 Mb/s
|
802.11g
–94dBm @ 6 Mb/s
–92 dBm @ 9 Mb/s
–91 dBm @ 12 Mb/s
–89 dBm @ 18 Mb/s
–85 dBm @ 24 Mb/s
–82 dBm @ 36 Mb/s
–78 dBm @ 48 Mb/s
–76 dBm @ 54 Mb/s
|
802.11a
–93 dBm @ 6 Mb/s
–91 dBm @ 9 Mb/s
–90 dBm @ 12 Mb/s
–87 dBm @ 18 Mb/s
–84 dBm @ 24 Mb/s
–81 dBm @ 36 Mb/s
–76 dBm @ 48 Mb/s
–75 dBm @ 54 Mb/s
|
| |
2.4-GHz
802.11n (HT20)
–93 dBm @ MCS0
–90 dBm @ MCS1
–88 dBm @ MCS2
–85 dBm @ MCS3
–81 dBm @ MCS4
–77 dBm @ MCS5
–75 dBm @ MCS6
–74 dBm @ MCS7
–91dBm @ MCS8
–88 dBm @ MCS9
–86 dBm @ MCS10
–83 dBm @ MCS11
–79 dBm @ MCS12
–75 dBm @ MCS13
–73 dBm @ MCS14
–72 dBm @ MCS15
|
5-GHz
802.11n (HT20)
–93 dBm @ MCS0
–90 dBm @ MCS1
–87 dBm @ MCS2
–83 dBm @ MCS3
–80 dBm @ MCS4
–75 dBm @ MCS5
–74 dBm @ MCS6
–72 dBm @ MCS7
–91 dBm @ MCS8
–88 dBm @ MCS9
–85 dBm @ MCS10
–81 dBm @ MCS11
–78 dBm @ MCS12
–73 dBm @ MCS13
–72 dBm @ MCS14
–70 dBm @ MCS15
|
5-GHz
802.11n (HT40)
–89 dBm @ MCS0
–86 dBm @ MCS1
–83 dBm @ MCS2
–79 dBm @ MCS3
–76 dBm @ MCS4
–72 dBm @ MCS5
–71 dBm @ MCS6
–70 dBm @ MCS7
–88 dBm @ MCS8
–84 dBm @ MCS9
–81 dBm @ MCS10
–77 dBm @ MCS11
–74 dBm @ MCS12
–70 dBm @ MCS13
–69 dBm @ MCS14
–68 dBm @ MCS15
|
|
Maximum Transmit Power
|
2.4 GHz
|
5 GHz
? 802.11n non-HT duplicate mode
|
|
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
|
|
Available Transmit Power Settings
|
2.4 GHz
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
|
