Product Specification |

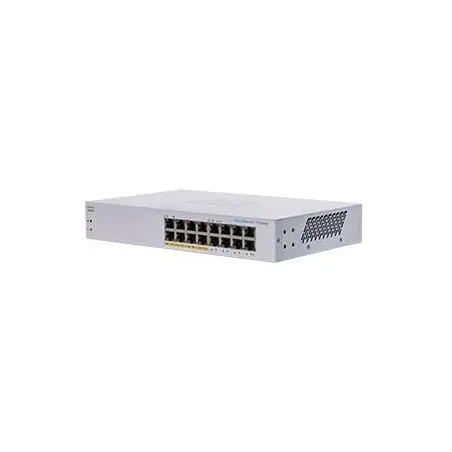

Overview | Cisco CBS110-16PP Unmanaged Gigabit Switch ขนาด 16 Port ความเร็ว Gigabit, จ่ายไฟ POE 8 Port, POE Budget 64W รองรับ Quality Of Service (QoS), Loop Detection, Cable diagnostics |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 23.8 mpps |
| Switching capacity in gigabits per second (Gbps) | 35 Gbps |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| MAC table | 2K addresses for CBS110-5T-D8K addresses for all other models |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| RJ-45 ports | 16 Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) | - |
| Power over Ethernet (PoE) 802.3af |
| Power dedicated to PoE | 64W |
| Number of ports that support PoE | 8 |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE,. *if present |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Flash | 16 MB for CBS110-16T, CBS110-16PP
8 MB for CBS110-24T, CBS110-24PP |
| CPU | 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP |
| CPU memory | 128 MB for CBS110-16T, CBS110-16PP
64 MB for CBS110-24T, CBS110-24PP |
| Packet buffer | 1 Mbit |
| Unit dimensions (Wx D x H) | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) |
| Unit weight | 1.30 kg (2.87 lb) |
| Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B**select models |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | –4° to 158°F (–20° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 5% to 90%, relative, noncondensing |
รับประกัน | Life Time |
