Product Specification
|
| Overview |

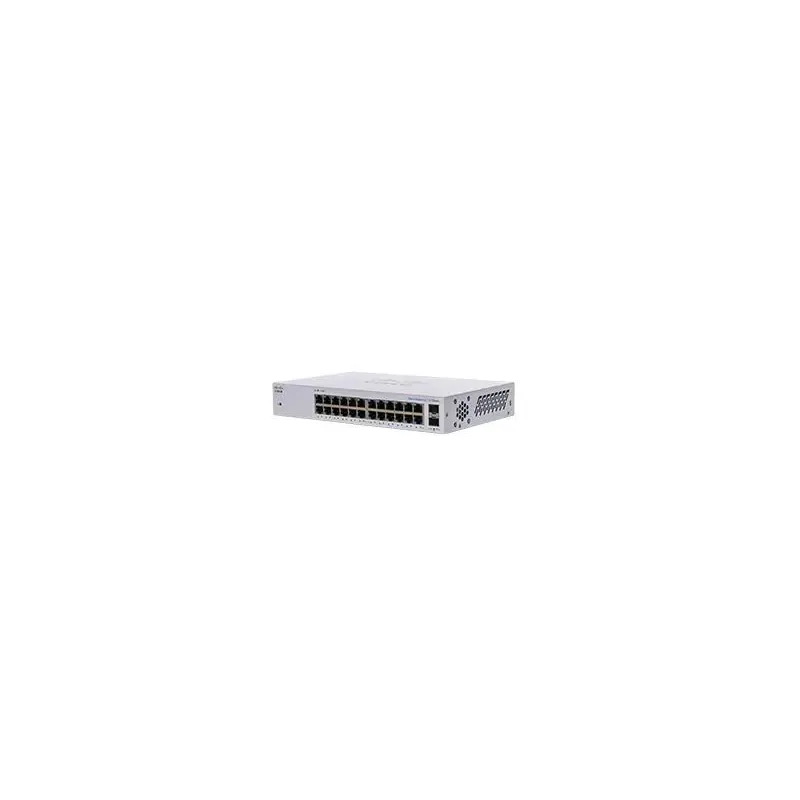

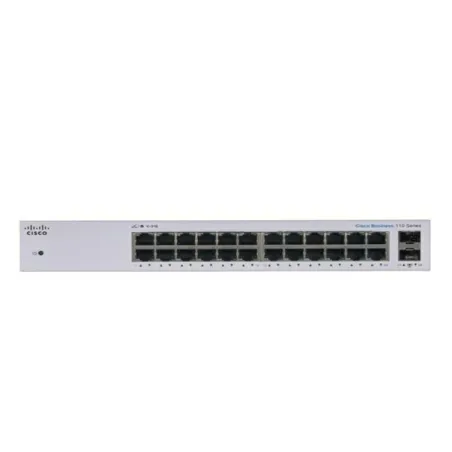

Cisco CBS110-24T Unmanaged Gigabit Switch ขนาด 24 Port ความเร็ว Gigabit, 2 Port SFP Combo รองรับ Quality Of Service (QoS), Loop Detection, Cable diagnostics
|
| Capacity in millions of packets per second (mpps) (64-byte packets) |
35.7 mpps |
| Switching capacity in gigabits per second (Gbps) |
48 Gbps |
| Head-of-line (HOL) blocking |
HOL blocking prevention |
| MAC table |
2K addresses for CBS110-5T-D8K addresses for all other models |
| Jumbo frame |
9216 bytes |
| Quality of Service (QoS) |
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection |
Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics |
Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| RJ-45 ports |
24 Port Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) |
2 SFP (combo with 2 Gigabit Ethernet)
|
| Power over Ethernet (PoE) 802.3af |
| Power dedicated to PoE |
- |
| Number of ports that support PoE |
- |
| LEDs |
Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE,.
*if present |
| Cabling type |
Category 5e or better |
| Mounting options |
Desktop, wall-mount or rack mount |
| Physical security lock |
Kensington lock slot |
| Flash |
16 MB for CBS110-16T, CBS110-16PP
8 MB for CBS110-24T, CBS110-24PP |
| CPU |
400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP |
| CPU memory |
128 MB for CBS110-16T, CBS110-16PP
64 MB for CBS110-24T, CBS110-24PP |
| Packet buffer |
2 Mbit |
| Unit dimensions (Wx D x H) |
279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
|
| Unit weight |
1.56 kg (3.43 lb)
|
| Green (power efficiency) |
Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B**select models |
| Operating temperature |
32° to 104°F (0° to 40°C) |
| Storage temperature |
–4° to 158°F (–20° to 70°C) |
| Operating humidity |
10% to 90%, relative, noncondensing |
| Storage humidity |
5% to 90%, relative, noncondensing |
|
รับประกัน
|
Life Time |
