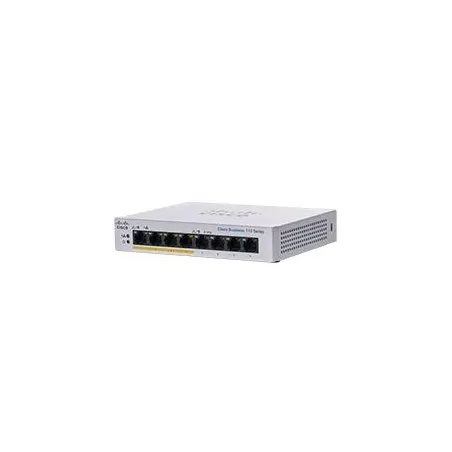

CBS110-8PP-D
Cisco CBS110-8PP-D Unmanaged Gigabit Switch ขนาด 8 Port ความเร็ว Gigabit, จ่ายไฟ POE 4 Port, POE Budget 42W รองรับ Quality Of Service (QoS), Loop Detection, Cable diagnostics
Cisco Business 110 Series Datasheet
|
Product Specification |
|
|
Overview |
Cisco CBS110-8PP-D Unmanaged Gigabit Switch ขนาด 8 Port ความเร็ว Gigabit, จ่ายไฟ POE 4 Port, POE Budget 42W รองรับ Quality Of Service (QoS), Loop Detection, Cable diagnostics |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 11.9 mpps |
| Switching capacity in gigabits per second (Gbps) | 16 Gbps |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| MAC table | 2K addresses for CBS110-5T-D8K addresses for all other models |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| RJ-45 ports | 8 Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) | - |
| Power over Ethernet (PoE) 802.3af | |
| Power dedicated to PoE | 32W |
| Number of ports that support PoE | 4 |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE,.
*if present |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Flash |
16 MB for CBS110-16T, CBS110-16PP |
| CPU | 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP |
| CPU memory |
128 MB for CBS110-16T, CBS110-16PP |
| Packet buffer | 1 Mbit |
| Unit dimensions (Wx D x H) | 110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in) |
| Unit weight | 0.23 kg (0.52 lb) |
| Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B**select models |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | –4° to 158°F (–20° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 5% to 90%, relative, noncondensing |
|
รับประกัน |
Life Time |
