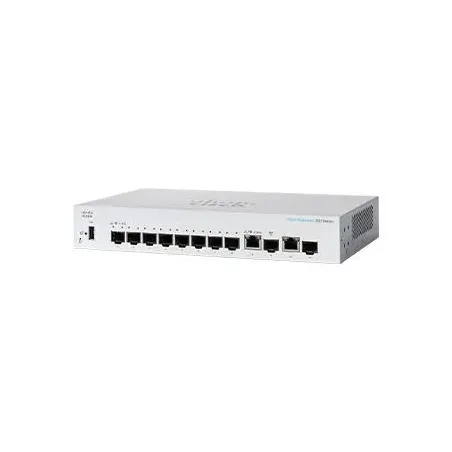

    Cisco Cisco CBS350-8S-E-2G L3-Managed Gigabit Switch 8 Port SFP, 2 Combo
    • Cisco Cisco CBS350-8S-E-2G L3-Managed Gigabit Switch 8 Port SFP, 2 Combo

    Cisco CBS350-8S-E-2G L3-Managed Gigabit Switch 8 Port SFP, 2 Combo

    Cisco
    Cisco CBS350-8S-E-2G L3-Managed Gigabit Switch 8 Port SFP, 2 Port SFP/LAN Combo รองรับ VLAN, Spanning Tree Protocol (STP), Advanced Threat Protection, IPv6 first-hop security, Quality Of Service (QoS), sFlow, IPv4/IPv6 static routing
    ฿13,500.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    Cisco Business 350 Series Datasheet

    Product Specification

    Overview

    Cisco CBS350-8S-E-2G L3-Managed Gigabit Switch 8 Port SFP, 2 Port SFP/LAN Combo (เลือกระหว่าง Lan/SFP Port)

    รองรับ VLAN, Spanning Tree Protocol (STP), Advanced Threat Protection, IPv6 first-hop security, Quality Of Service (QoS), sFlow, IPv4/IPv6 static routing

    Capacity in millions of packets per second (mpps) (64-byte packets)

    14.88 mpps

    Switching capacity in gigabits per second (Gbps)

    20 Gbps

    Layer 2 Switching

    Spanning Tree Protocol

    Standard 802.1d Spanning Tree support
    Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
    Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported
    Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported

    Port grouping/link aggregation

    Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    Up to 8 groups
    Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

    VLAN

    Support for up to 4,094 VLANs simultaneouslyPort-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN
    Management VLAN
    Private VLAN with promiscuous, isolated, and community port
    Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
    Guest VLAN, unauthenticated VLAN
    Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
    CPE VLAN

    Voice VLAN

    Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network wide zero-touch deployment of voice endpoints and call control devices

    Multicast TV VLAN

    Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)

    VLAN Translation

    Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN

    Q-in-Q

    VLANs transparently cross a service provider network while isolating traffic among customers

    Selective Q-in-Q

    Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs
    Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag
    Layer 2 protocol tunneling over Q-in-Q is also supported

    Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)

    Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain

    Unidirectional Link Detection (UDLD)

    UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks

    Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2

    Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82

    Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping

    IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported)

    IGMP Querier

    IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router

    Head-of-Line (HOL) blocking

    HOL blocking prevention

    Loopback Detection

    Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP

    Layer 3

    IPv4 routing

    Wirespeed routing of IPv4 packets
    Up to 990 static routes and up to 128 IP interfaces

    IPv6 routing

    Wirespeed routing of IPv6 packets

    Layer 3 Interface

    Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface

    Classless Interdomain Routing (CIDR)

    Support for classless interdomain routing

    Policy-Based Routing (PBR)

    Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)

    DHCP Server

    Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes

    Support for DHCP options

    DHCP relay at Layer 3

    Relay of DHCP traffic across IP domains

    User Datagram Protocol (UDP) relay

    Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets

    Stacking



    Hardware stack

    Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover

    High availability

    Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack

    Plug-and-play stacking configuration/management

    Master/backup for resilient stack control
    Autonumbering
    Hot swap of units in stack
    Ring and chain stacking options, auto stacking port speed, flexible stacking port options

    High-speed stack interconnects

    Cost-effective high-speed 10G fiber interfaces.

    Security

    Secure Shell (SSH) Protocol

    SSH is a secure replacement for Telnet traffic. Secure Copy Protocol (SCP) also uses SSH. SSH v1 and v2 are supported

    Secure Sockets Layer (SSL)

    SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch

    IEEE 802.1X (Authenticator role)

    802.1X: Remote Authentication Dial-In User Service (RADIUS) authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions
    Supports time-based 802.1X; dynamic VLAN assignment

    Web-based authentication

    Web-based authentication provides network admission control through web browser to any host devices and operating systems

    STP Bridge Protocol Data Unit (BPDU) Guard

    A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops

    STP Root Guard

    This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes

    STP loopback guard

    Provides additional protection against Layer 2 forwarding loops (STP loops)

    DHCP snooping

    Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP Servers.

    IP Source Guard (IPSG)

    When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing.

    Dynamic ARP Inspection (DAI)

    The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination addresses in the ARP packet. This prevents man-in-the-middle attacks.

    IP/MAC/Port Binding (IPMB)

    The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DOS attacks in the network, thereby increasing network availability

    Secure Core Technology (SCT)

    Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received

    Secure Sensitive Data (SSD)

    A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user.

    Trustworthy systems

    Trustworthy systems provide a highly secure foundation for Cisco products
    Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])

    Private VLAN

    Private VLAN provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks

    Layer 2 isolation Private VLAN Edge (PVE) with community VLAN

    PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks

    Port security

    Ability to lock source MAC addresses to ports and limits the number of learned MAC addresses

    RADIUS/TACACS+

    Supports RADIUS and TACACS authentication. Switch functions as a client

    RADIUS accounting

    The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session

    Storm control

    Broadcast, multicast, and unknown unicast

    DoS prevention

    Denial-of-Service (DOS) attack prevention

    Multiple user privilege levels in CLI

    Level 1, 7, and 15 privilege levels

    ACLs

    Support for up to 1,024 rules
    Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, Transmission Control Protocol/User Datagram Protocol (TCP/UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
    Time-based ACLs supported

    Quality of Service

    Priority levels

    8 hardware queues

    Scheduling

    Strict priority and Weighted Round-Robin (WRR)

    Class of service

    Port based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based; Differentiated Services (DiffServ); classification and remarking ACLs, trusted QoS

    Queue assignment based on DSCP and class of service (802.1p/CoS)

    Rate limiting

    Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing

    Congestion avoidance

    A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization

    iSCSI traffic optimization

    A mechanism for giving priority to iSCSI traffic over other types of traffic

    Management

    Web user interface

    Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS).

    Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search

    SNMP

    SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-based Security Model (USM)

    Remote Monitoring (RMON)

    Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis

    IPv4 and IPv6 dual stack

    Coexistence of both protocol stacks to ease migration

    Firmware upgrade

    Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH
    Dual images for resilient firmware upgrades

    Port mirroring

    Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port.

    VLAN mirroring

    Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port.

    DHCP (options 12, 66, 67, 82, 129, and 150)

    DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, autoconfiguration (with configuration file download), DHCP relay, and hostname

    Secure Copy (SCP)

    Securely transfer files to and from the switch

    Autoconfiguration with Secure Copy (SCP) file download

    Enables secure mass deployment with protection of sensitive data

    Text-editable config files

    Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment

    Smartports

    Simplified configuration of QoS and security capabilities

    Auto Smartports

    Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments

    Textview CLI

    Scriptable command-line interface. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI

    Cloud services

    Support for Cisco Business Dashboard and Cisco Active Advisor

    Embedded Probe for Cisco Business Dashboard

    Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe on site.

    Cisco Network Plug and Play (PnP) agent

    The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience

    Supports Cisco PnP Connect

    Localization

    Localization of GUI and documentation into multiple languages

    Login banner

    Configurable multiple banners for web as well as CLI

    Other management

    Traceroute; single IP management; HTTP/HTTPS; SSH; RADIUS; port mirroring; TFTP upgrade; DHCP client; BOOTP; SNTP; Xmodem upgrade; cable diagnostics; ping; syslog; Telnet client (SSH secure support); automatic time settings from Management Station

    General

    Jumbo frames

    Frame sizes up to 9K bytes. The default MTU is 2K bytes

    MAC table

    16K addresses

    Discovery

    Bonjour

    The switch advertises itself using the Bonjour protocol

    Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions

    LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones

    Power over Ethernet (PoE)

    802.3at PoE+ and 802.3af PoE delivered over any of the RJ-45 ports within the listed power budgets

    Power Dedicated to PoE

    -

    Number of Ports That Support PoE

    -

    Ports

    SFP Port8

    RJ-45 Ports

    2

    Combo Ports(RJ 45 + Small form-factor pluggable [SFP])

    2

    Console port

    Cisco Standard mini USB Type-B / RJ45 console port

    USB slot

    USB Type-A slot on the front panel of the switch for easy file and image management

    Buttons

    Reset button

    Cabling type

    Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

    LEDs

    System, Link/Act, PoE, Speed

    Flash

    256 MB

    CPU

    800 MHz ARM

    DRAM

    512 MB

    Packet buffer

    1.5 MB

    Unit dimensions (W x H x D)

    280 x 170 x 44 mm (11.0 x 6.69 x 1.73 in)

    Unit Weight

    1.0 kg (2.20 lb)

    Certification

    UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

    Operating temperature

    23° to 122°F (-5° to 50°C)

    Storage temperature

    -13° to 158°F (-25° to 70°C)

    Operating humidity

    10% to 90%, relative, noncondensing

    Storage humidity

    10% to 90%, relative, noncondensing

    Package Contents

     Cisco Business 350 Series Managed Switch
    Power Cord (Power adapter for select 8-port and 16-port SKUs)
    Mounting Kit
    Quick Start Guide

    รับประกัน

    Life Time



    รายละเอียดสินค้า
    2 รายการ

    Data sheet

    ประเภท Switch
    L2/L3 Managed
    ความเร็ว Port Lan
    1Gbps (Gigabit)
    SFP Port Gigabit
    มากกว่า 2 Port
