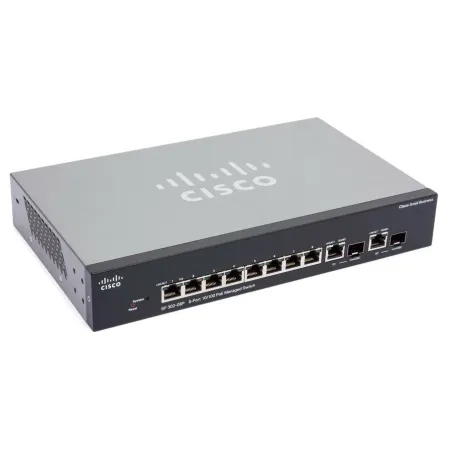

Cisco SF302-08 (SRW208G) L3-Managed Switch 8 Port 10/100Mbps, 2 Port Gigabit รองรับ Static Routing, VLANs

Specifications

Ports

• 8 RJ-45 connectors for 10BASE-T and 100BASE-TX

• 2 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 2 Small Form-Factor Pluggable (SFP) slots

• Console port

• Auto MDI/MDI-X

• Auto negotiate/manual setting

Cabling type

• Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX

• UTP Category 5e or better for 1000BASE-T

LEDs

10/100 Link/Act, PoE, 2 Giga Link/Act, Speed, System

PoE

802.3af compliant. Supply up to IEEE standard maximum of 15.4W on four 10/100 ports or up to 7.5W on eight 10/100 ports

Performance

Switching capacity

5.6 Gbps nonblocking

Forwarding rate

4.17 mpps wire-speed performance

Layer 2

MAC table size

8000

Number of VLANs

256 active VLANs (4096 range)

VLAN

• Port-based and 802.1Q tag-based VLANs

• Management VLAN

Head-of-line (HOL) blocking

HOL blocking prevention

Management

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

SNMP

SNMP versions 1, 2c, and 3 with support for traps

SNMP MIBs

RFC1213 MIB-2, RFC2863 interface MIB, RFC2665 Ether-like MIB, RFC1493 bridge MIB, RFC2674 extended bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1, 2, 3, and 9 only), RFC2737 entity MIB, RFC 2618 RADIUS client MIB, RFC 1215 traps, private PoE MIB

Remote Monitoring (RMON)

Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis.

Firmware upgrade

Web browser upgrade (HTTP) and Trivial File Transfer Protocol (TFTP)

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe

Other management

• Traceroute

• SSL

• Secure Shell (SSH)

• RADIUS

• Port mirroring

• TFTP upgrade

• SSL security for web user interface

• Dynamic Host Configuration Protocol (DHCP) client

• BOOTP

• Simple Network Time Protocol (SNTP)

• Xmodem upgrade

• Cable diagnostics

• Ping

• Telnet client (SSH secure support)

Security

IEEE 802.1X

802.1X - RADIUS authentication; MD5 encryption

Access control

Access control lists (ACLs): drop or rate limit based on:

• Source and destination MAC-based

• Source and destination IP address

• Protocol

• ToS/ differentiated services code point (DSCP)

• Port

• VLAN

• Ethertype

Availability

Link aggregation

• Link aggregation using IEEE 802.3ad LACP

• Up to 8 ports in up to 8 groups

Storm control

Broadcast, multicast, and unknown unicast

Spanning Tree

• IEEE 802.1D Spanning Tree

• IEEE 802.1w Rapid Spanning Tree

• IEEE 802.1s Multiple Spanning Tree

Internet Group Management Protocol (IGMP) snooping

IGMP (versions 1 and 2) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors. Supports 256 multicast groups.

QoS

Priority levels

4 hardware queues

Scheduling

Priority queuing and weighted round-robin (WRR)

Class of service

• Port based

• 802.1p VLAN priority based

• IPv4/v6 IP precedence/ToS/DSCP based

• TCP/User Datagram Protocol (UDP) port based

• DiffServ

• Classification and re-marking ACLs

Rate limiting

• Ingress policer

• Egress rate control

Standards

802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x flow control, 802.3ad LACP, 802.3af PoE, 802.1D Spanning Tree Protocol (STP), 802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP, 802.1x port access authentication

Environmental

Dimensions

W x H x D

11 x 1.75 x 6.69 in.

(279.4 x 44.5 x 170 mm)

Unit weight

2.65 lb (1.2 kg)

Power

External AC power adapter

Certification

FCC Part 15 Class A, CE Class A, UL, cUL, CE mark, CB

Operating temperature

32? to 104?F (0? to 40?C)

Storage temperature

-4? to 158?F (-20? to 70?C)

Operating humidity

10% to 90%

Storage humidity

10% to 95%

Package Contents

• Cisco SRW208P 8-Port Gigabit Switch

• AC power adapter with power cord

• Two rack-mounting kits with eight screws

• CD with user guide in PDF format

• Registration card

• Console cable

Minimum Requirements

• Web-Based Utility: Web Browser - Microsoft Internet Explorer (Version 5.5 or Above)

• Cat5 Ethernet Network Cables

• Operating System: Windows 2000, XP or Above

รับประกัน อุปกรณ์ 5 ปี EOS , Adapter 3 เดือน
