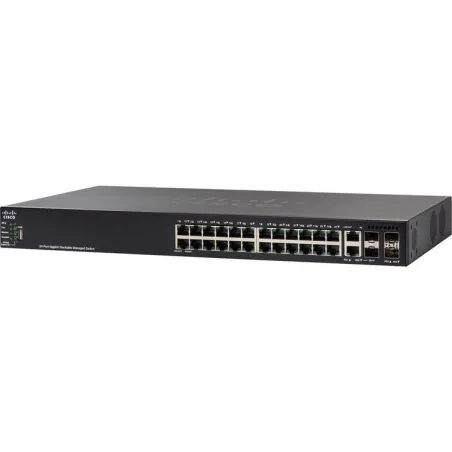

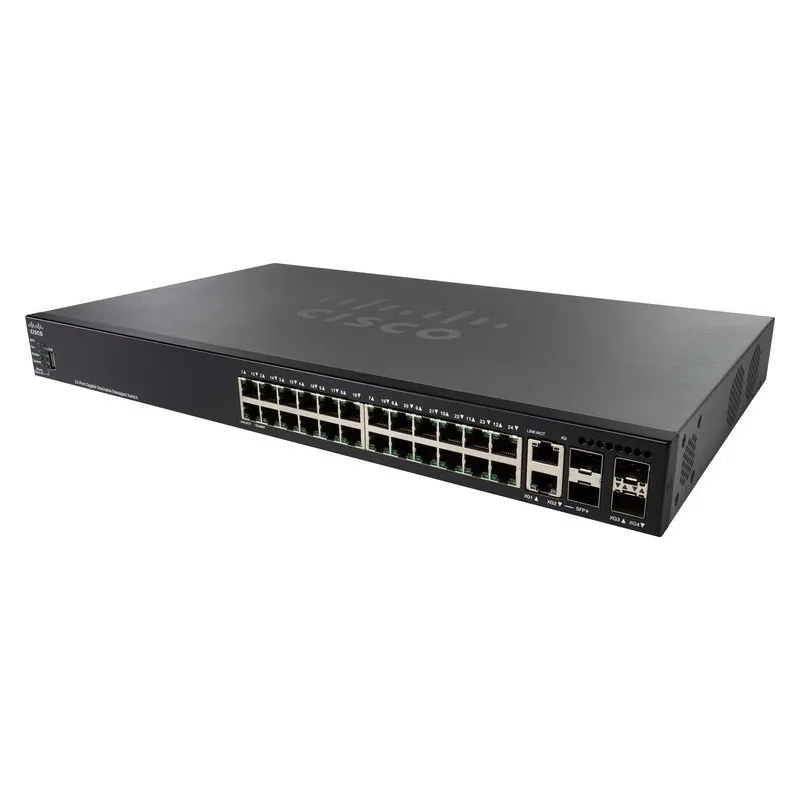

Cisco Cisco SG350X-24 Stackable L3-Managed Switch 24 Port Gigabit, 2 Port RJ45 10Gbps, 2 SFP+
    • Cisco Cisco SG350X-24 Stackable L3-Managed Switch 24 Port Gigabit, 2 Port RJ45 10Gbps, 2 SFP+
    • Cisco Cisco SG350X-24 Stackable L3-Managed Switch 24 Port Gigabit, 2 Port RJ45 10Gbps, 2 SFP+
    • Cisco Cisco SG350X-24 Stackable L3-Managed Switch 24 Port Gigabit, 2 Port RJ45 10Gbps, 2 SFP+

    Cisco SG350X-24 Stackable L3-Managed Switch 24 Port Gigabit, 2 Port RJ45 10Gbps, 2 SFP+

    Cisco
    Rating

    Cisco SG350-24 Stackable L3-Managed Switch 24 Port Gigabit พร้อม 2 Port Combo 10Gbps รองรับ SFP+ หรือ Port Lan รองรับ Static Routing, VLANs ควบคุมผ่าน Web

    ฿27,440.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    Cisco SG350X Series Switches Data Sheet

    Product Specification

    Overview

    Cisco SG350X-24 Stackable Layer3 Managed Switch 24 Port Gigabit พร้อม 2 Port Combo 10Gbps รองรับ SFP+ หรือ เลือกเป็น Port Lan RJ45 ความเร็ว 10 Gigabit รองรับ Static Routing, VLANs ควบคุมผ่าน Web



    เหมาะใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในสำนักงานที่ต้องการความเร็วสูงสุดหรือทำเป็น Core Switch

    Combo Ports
    (RJ-45 + SFP)

    2 Port Combo SFP/ 4 Port RJ45

    General

    Device Type

    Switch - 24 ports - managed - stackable

    Enclosure Type

    Rack-mountable 1U

    Subtype

    Gigabit Ethernet

    Ports

    24 x 1000Base-T + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+

    Performance

    Switching capacity (64-byte packet size): 95.23 Mpps
    Switching capacity: 128 Gbps

    Capacity

    MSTP instances: 16
    Active VLANs: 4096
    IPv4 routes (static): up to 8000
    IPv6 routes (static): up to 6000
    ACL entries: up to 2000

    MAC Address Table Size

    64K entries

    Jumbo Frame Support

    9000 bytes

    Max Units In A Stack

    4

    Routing Protocol

    IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR

    Remote Management Protocol

    SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP

    Encryption Algorithm

    MD5, SSL

    Authentication Method

    RADIUS, TACACS, TACACS+

    Features

    Flow control, layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 4 fans, 1.5MB packet buffer, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard

    Compliant Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az

    Processor

    X ARM: 800 MHz

    RAM

    512 MB

    Flash Memory

    256 MB

    Status Indicators

    System, link/speed, master, stack

    Expansion / Connectivity

    Interfaces

    24 x 1000Base-T RJ-45
    2 x 10Gbit LAN RJ-45/SFP+ uplink
    2 x 10GBase-X SFP+ uplink
    1 x console RJ-45
    1 x management (Gigabit LAN)
    1 x USB Type A

    Power

    Power Device

    Internal power supply

    Voltage Required

    AC 120/230 V (47 - 63 Hz)

    Miscellaneous

    Cables Included

    1 x serial cable

    Rack Mounting Kit

    Included

    MTBF

    385,289 hours

    Compliant Standards

    UL 60950, FCC Part 15 A, CSA 22.2, USGv6

    Localization

    North America

    Dimensions & Weight

    Width

    17.3 in

    Depth

    10.1 in

    Height

    1.7 in

    Weight

    9.52 lbs

    Environmental Parameters

    Humidity Range Operating

    10 - 90% (non-condensing)

    Min Storage Temperature

    -4F

    Max Storage Temperature

    158 F

    Humidity Range Storage

    10 - 90% (non-condensing)

    Warranty

    5 ปี



    รายละเอียดสินค้า
    2 รายการ

    Data sheet

    ประเภท Switch
    L2/L3 Managed
    ความเร็ว Port Lan
    1Gbps
    จำนวน Port Lan
    24 Port
    มี Uplink Port Lan Gigabit
    Yes
    มี Uplink Port Lan 10Gbps
    Yes
    มี SFP Port Gigabit
    Yes
