Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
Ports | LAN Gigabit Ethernet auto sensing |
Cabling type | Category 5e or better |
Antennas | Internal antennas optimized for installation on a wall or ceiling |
LED indicators | Power, WLAN, LAN |
Operating system | Linux |
Physical Interfaces |
Ports | 10/100/1000 Ethernet, with support for 802.3af PoE |
Buttons | Reset button |
Lock slot | Slot for Kensington lock |
LEDs | Power, Wireless, Ethernet |
Physical Specifications |
Physical dimensions (W x D x H) | 9.05 x 9.05 x .98 in. (230 x 230 x 25 mm) |
Weight | WAP561: 1.51 lb or 685 g; WAP551: 1.41 lb or 640g |
Network Capabilities |
VLAN support | Yes |
Number of VLANs | 1 management VLAN plus 16 VLANs for SSIDs |
802.1X supplicant | Yes |
SSID-to-VLAN mapping | Yes |
Auto channel selection | Yes |
Spanning tree | Yes |
Load balancing | Yes |
IPv6 | Yes ? IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
Layer 2 | 802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN |
Security |
WPA/WPA2 | Yes, including Enterprise authentication |
Access control | Yes, management access control list (ACL) plus MAC ACL |
Secure management | HTTPS |
Wi-Fi Protected Setup (WPS) | Yes (soft WPS, no hardware push button) |
SSID broadcast | Yes |
Rogue access point detection | Yes |
Mounting and Physical Security |

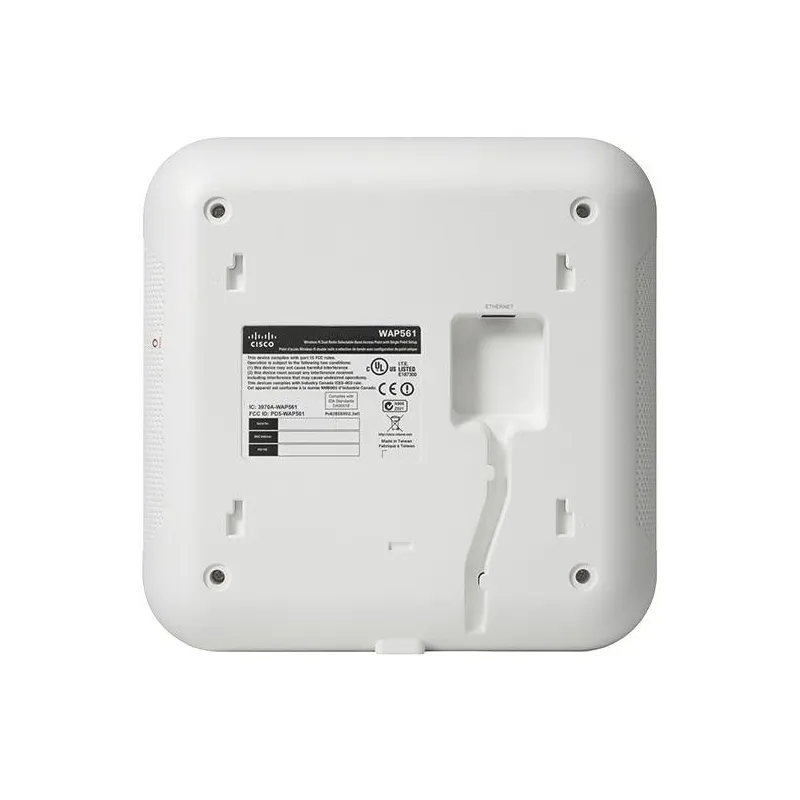

Multiple mounting options | Mounting bracket included for easy ceiling or wall mounting |
Physical security lock | Kensington lock slot |
Quality of Service |
Quality of service (QoS) | Wi-Fi Multimedia and Traffic Specification (WMM TSPEC) |
Performance |
Wireless throughput | Up to 450 Mbps data rate (real-world throughput will vary) |
Recommended user support | Up to 64 connective users, 30 active users per radio |

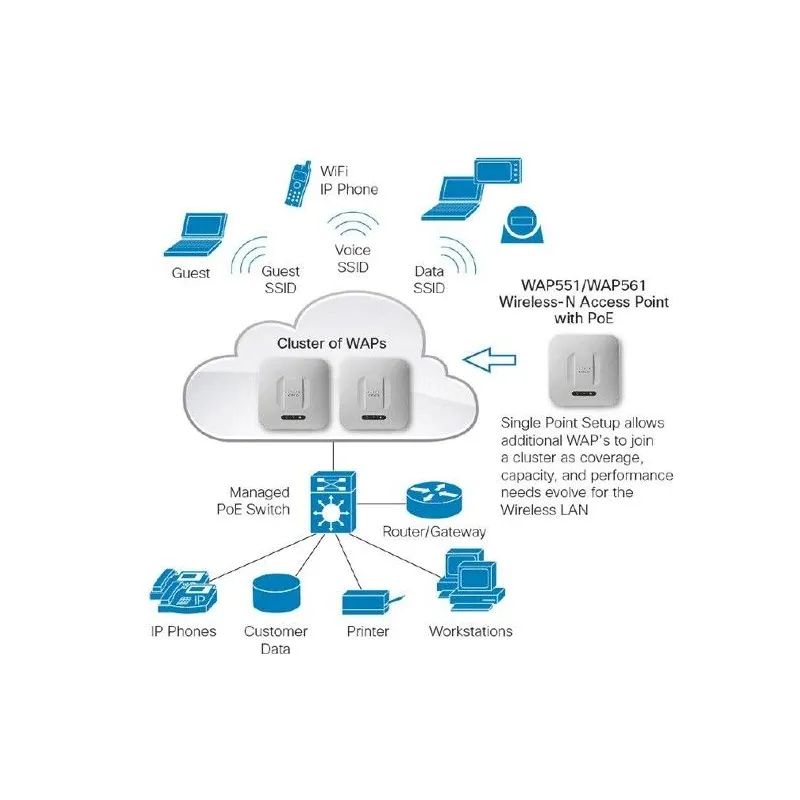

Multiple-Access Point Management |
Single Point Setup | Yes |
Number of access points per cluster | 16 |
Active clients per cluster | 480 |
Configuration |
Web user interface | Built-in web user interface for easy browser-based configuration (HTTP/HTTPS) |
Management |
Management protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour |
Remote management | Yes |
Event logging | Local, remote syslog, email alerts |
Network diagnostics | Logging and packet capture |
Web firmware upgrade | Firmware upgradable through web browser, imported/exported configuration file |
Dynamic Host Configuration Protocol (DHCP) | DHCP client |
IPv6 host | Yes |
HTTP redirect | Yes |
Wireless |
Frequency | WAP551: Selectable radio band (2.4 or 5 GHz) WAP561: Dual concurrent radios (2.4 and 5 GHz) |
Radio and modulation type | Single radio (WAP551) or dual radio (WAP561), orthogonal frequency division multiplexing (OFDM) |
WLAN | 802.11b/g/n 3x3 multiple-input multiple-output (MIMO) with 3 spatial streams 20 and 40 MHz channels PHY data rate up to 450 Mbps 802.11 dynamic frequency selection (DSF), EU version only |
Data rates supported | 802.11a/b/g: ? 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps ? 20-MHz bandwidth: MCS 0-15 for supported data rates ? 40-MHz bandwidth: MCS 0-15 for supported data rates |
Frequency band and operating channels | 802.11b 2412 2437 2462 802.11g 2412 2437 2462 802.11n 20 MHz (2.4 GHz band) 2412 2437 2462 802.11n 40 MHz (2.4 GHz band) 2422 2437 2452 | 802.11a 5180 5320 5500 5700 802.11n 20 MHz (5 GHz band) 5180 5320 5500 5700 5825 802.11n 40 MHz (5 GHz band) 5190 5510 5795 |
Nonoverlapping channels | 2.4 GHz 5 GHz |
Transmitted output power | |
Wireless isolation | Wireless isolation between clients |
External antennas | None |
Internal antennas | 5 internal dipole antennas for the WAP551 and 10 antennas for the WAP561 |
Antenna gain in dBi | 5 dBi each antenna |
Receiver sensitivity | 2.4 GHz 5 GHz |
Wireless distribution system (WDS) | |
