DrayTek Vigor3910 Product Specification
|
|
Overview
|

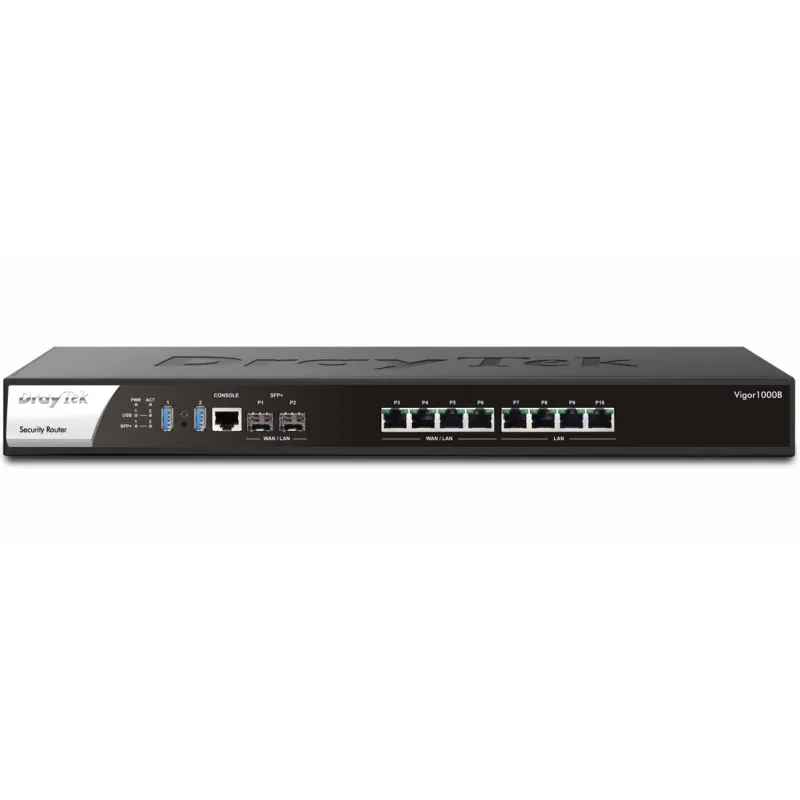

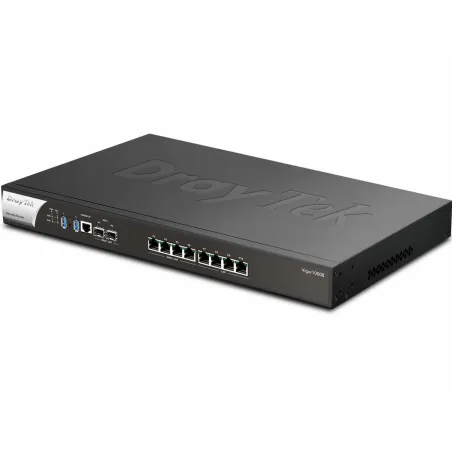

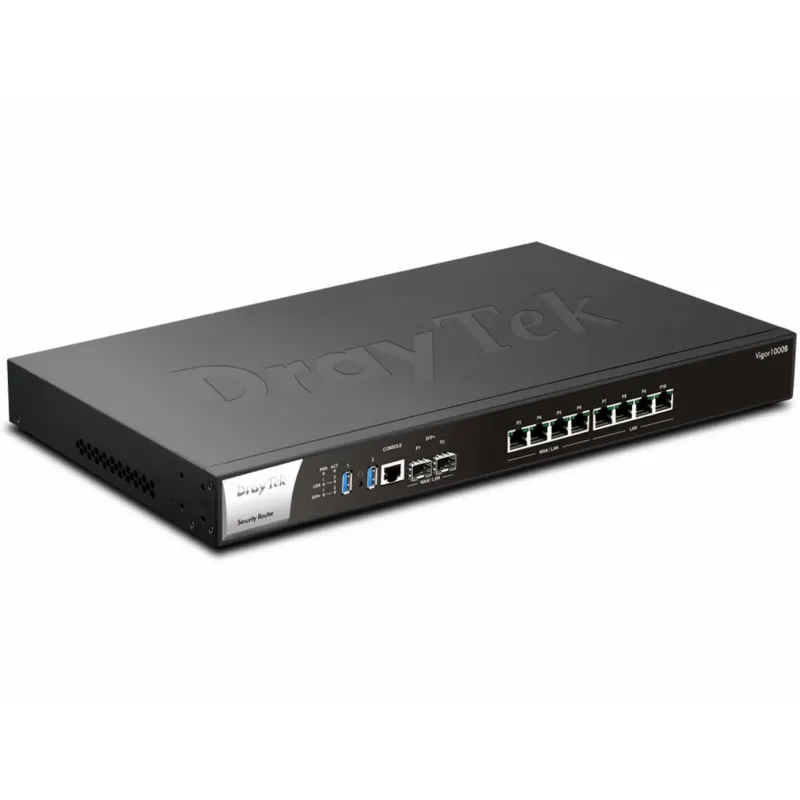

DrayTek Vigor1000B 6-WAN Load Balance Router, 4 Port Lan Gbps, 2 SFP+
Quad-Core CPU ความเร็ว Internet สูงถึง 9.4Gbps
Loadbalance 6 Wan
4 Port Lan Gigabit
2 Port SFP+ ความเร็ว 10Gbps
1,000,000 NAT Session รองรับได้มากกว่า 500 Client
รองรับ 4G LTE USB Modem
** ไม่รองรับการทำ VPN **
|

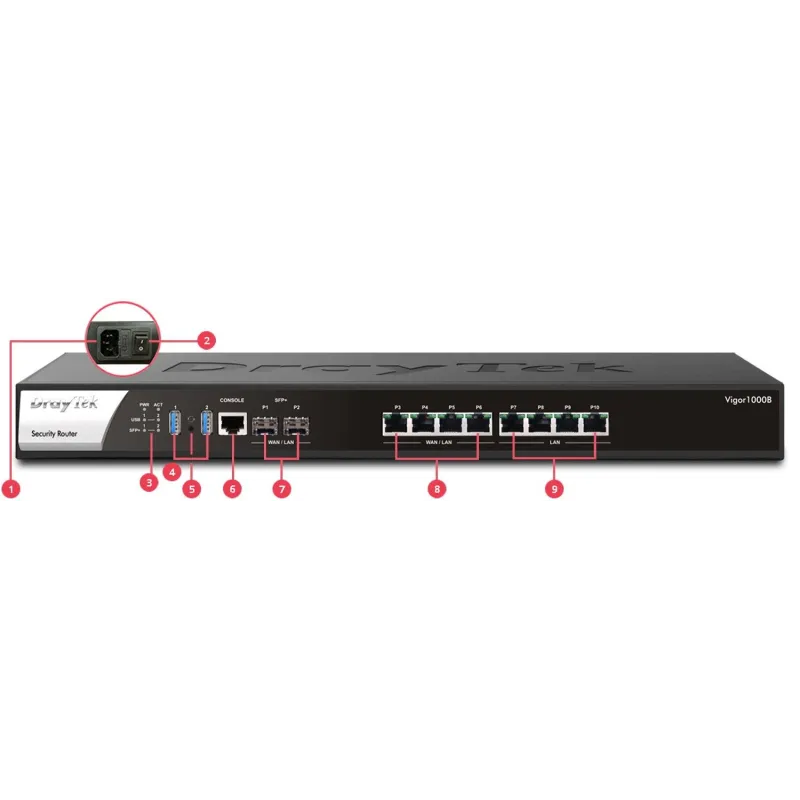

Interface
|
| WAN/LAN Switchable Port |

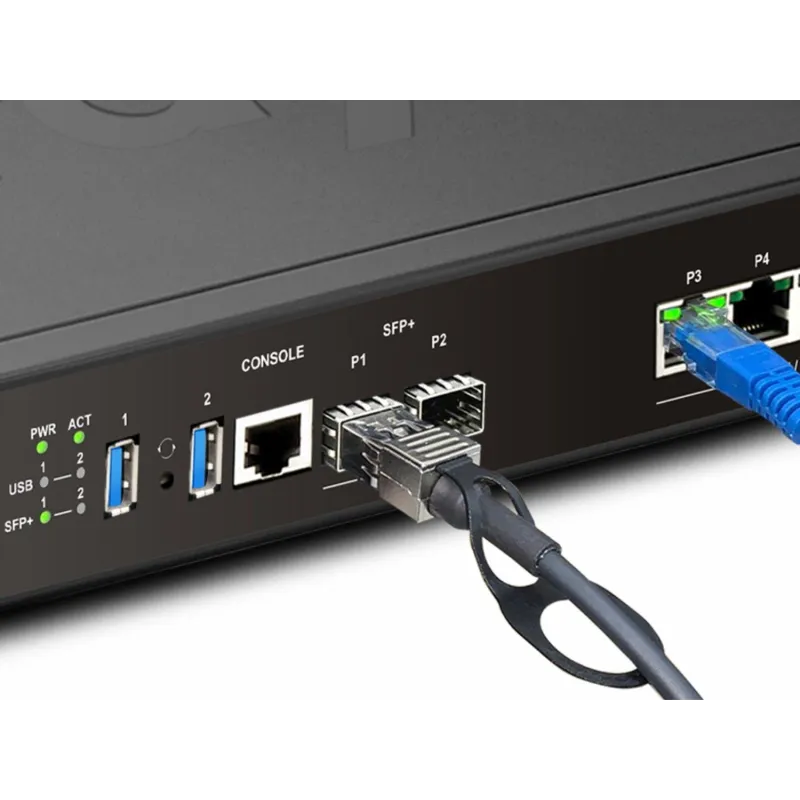

2x 10G SFP+ Fiber Slots
4x 1G/100M/10M Ethernet, RJ-45 |
| Fixed LAN Port |
4x 1G/100M/10M Ethernet, RJ-45 |
| USB Port |
2x USB 3.0 for storage |
| Console Port |
1x RJ-45 |
| Button |
1x Factory Reset |
Performance
|
| NAT Throughput |
9.4 Gbps |
| NAT Sessions |
1,000,000 |
| Max. Concurrent VPN Tunnels |
2 |
| Max. Concurrent OpenVPN + SSL VPN |
2 |
Internet Connection
|
| IPv4 |
PPPoE, DHCP, Static IP |
| IPv6 |
PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging |
|
| Multi-VLAN/PVC |
|
| Load Balancing |
IP-based, Session-based |
| WAN Active on Demand |
Link Failure, Traffic Threshold |
| Connection Detection |
ARP, Ping, Strict ARP |
| WAN Data Budget |
|
| Dynamic DNS |
|
| DrayDDNS |
|
LAN Management
|
| VLAN |
802.1q Tag-based, Port-based |
| Max. Number of VLAN |
100 |
| Number of LAN Subnet |
100 |
| DHCP Server |
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias |
|
| IP Pool Count |
Up to 4K per LAN Subnet |
| PPPoE Server |
|
| Port Mirroring |
|
| Local DNS Server |
|
| Conditional DNS Forwarding |
|
| Hotspot Web Portal |
|
| Hotspot Authentication |
Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
Networking
|
| Routing |
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2 |
| Policy-based Routing |
Protocol, IP Address, Port, Domain, Country |
| High Availability |
Active-Standby, Hot-Standby |
| DNS Security (DNSSEC) |
|
| IGMP |
IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server |
|
| SMB File Sharing |
(Requires external storage) |
VPN (for management purpose)
|
| LAN-to-LAN |
|
| Teleworker-to-LAN |
|
| Protocols |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN(Host to LAN) |
| User Authentication |
Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication |
Pre-Shared Key, X.509, XAuth, EAP |
| IPsec Authentication |
SHA-1, SHA-256, MD5 |
| Encryption |
MPPE, DES, 3DES, AES |
| Single-Armed VPN |
|
| NAT-Traversal (NAT-T) |
|
| DrayTek VPN Matcher |
|
Firewall & Content Filtering
|
| NAT |
Port Redirection, Open Ports, Port Triggering, DMZ Host |
| ALG (Application Layer Gateway) |
SIP, RTSP, FTP, H.323 |
| VPN Pass-Through |
PPTP, L2TP, IPsec |
| IP-based Firewall Policy |
|
| Content Filtering |
Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense |
|
| Spoofing Defense |
|
Bandwidth Management
|
| IP-based Bandwidth Limit |
|
| IP-based Session Limit |
|
| QoS (Quality of Service) |
TOS, DSCP, 802.1p, IP Address, Service Type |
| VoIP Prioritization |
|
Management
|
| Local Service |
HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Export & Import |
|
| Firmware Upgrade |
TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege |
|
| Access Control |
Access List, Brute Force Protection |
| Syslog |
|
| Notification Alert |
SMS, E-mail |
| SNMP |
v1, v2c, v3 |
| Central AP Management |
50 VigorAPs |
| Central Switch Management |
30 VigorSwitches |
Physical
|
| Rack Mountable |
Mouting Kit Included |
| Dimension |
443 mm x 285 mm x 45 mm |
| Weight |
3.32 kg |
| Power |
AC 110~220V @ 1A |
| Max.Power Consumption |
32 watts |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
-10 to 55°C |
| Operating Humidity (non-condensing) |
10 to 90% |
| Certificate |
CE, FCC |
|
รับประกัน
|
2 ปี
|
