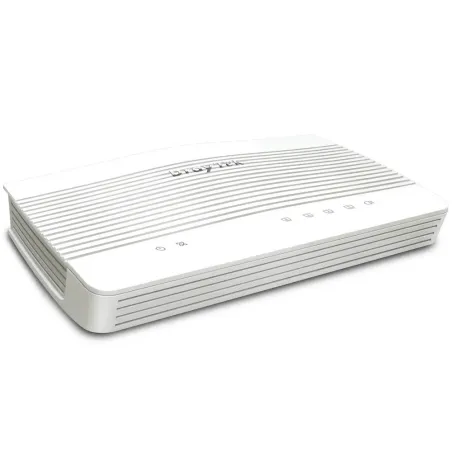

DrayTek Vigor2136 VPN Security Router, Port WAN/LAN 2.5Gbps Port, Max Throughput 2.3Gbps, VPN 4Tunnel, IPsec throughput 390Mbps, 30 Clients
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
เอกสารอ้างอิงเฉพาะ

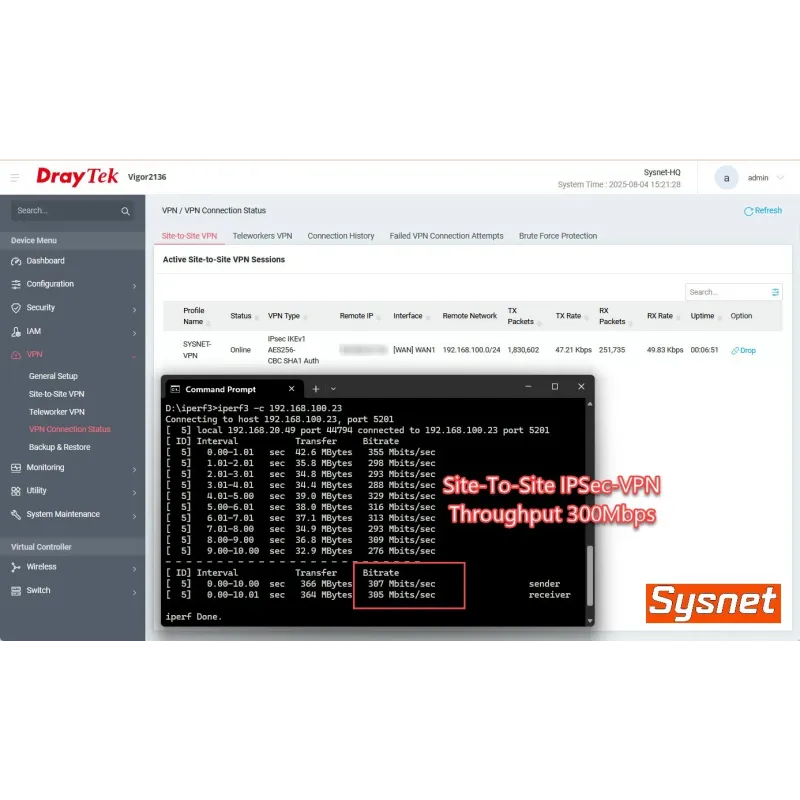

Review Draytek Vigor2136 VPN Router ให้ VPN Throughput สูงถึง 300Mbps
Draytek Vigor2136 Quick Start Guide
Vigor2136 Series is a broadband VPN router, featuring 2.5G WAN port to deliver fast speed that meets the growing network demands of business. It delivers up to 2.3 Gbps performance without sacrificing bandwidth control features. The router is equipped with business-grade features, including web content filtering, Route Policy, App-based QoS, and more. The series includes models with built-in 802.11ax WiFi.
Draytek Vigor 2136 Product Specification | |
Overview | DrayTek Vigor2136 |
Performance | |
| NAT Session | 50K |
| Max. NAT (Mbps) | 2300 |
WAN | |
Ethernet (2.5 GbE) | 2 |
Ethernet - LAN/WAN Switchable | Support |
Cellular (via USB) | 2 |
Internet Connection | |
| IPv4 | PPPoE |
| IPv6 | PPP |
| 802.1p/q Multi-VLAN Tagging | Support |
| Failover | Support |
| Connection Detection | ARP, Ping, Strict ARP |
| WAN Data Budget | Support |
| Dynamic DNS | Support |
| DrayDDNS | Support |
LAN | |
| Fixed LAN (RJ-45, GbE) | 3 |
| LAN Subnet | 4 |
| VLAN | 802.1q Tag-based VLAN |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet |
Wired 802.1x Authentication | Support |
| Port Mirroring | Support |
| Local DNS Server | Support |
| Conditional DNS Forwarding | Support |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through |
Other Ports | |
| Console (RJ-45) | - |
| USB | 2 |
USB Application | User Management |
| USB Type | 2.0 |
Networking | |
| Routing | IPv4 Static Route |
| Policy-based Routing | Protocol |
| Smart Action | Support |
| High Availability | Support |
| DNS Security (DNSSEC) | Support |
| IGMP | IGMP v2/v3 |
| Local RADIUS server | Support |
VPN | |
Site-to-Site VPN | Support |
| Teleworker-to-LAN | Support |
| Protocols | IPsec |
| Max. VPN Tunnels | 4 |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 390 |
WireGuard VPN Throughput (single-directional) (Mbps) | 90 |
| User Authentication | Local RADIUS TACACS+ mOTP TOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | DES |
| VPN Trunk (Redundancy) | Failover, Load Balancing |
| Single-Armed VPN | Support |
| NAT-Traversal (NAT-T) | Support |
VPN Connection Status | Support |
Firewall & Content Filtering | |
| NAT | Port Redirection |
| ALG (Application Layer Gateway) | FTP, H.323, RTSP, SIP |
| VPN Pass-Through | IPsec, L2TP, PPTP |
| IP-based Firewall Policy | Support |
| Content Filtering | APP |
| DoS Attack Defense | Support |
| Spoofing Defense | Support |
Bandwidth Management | |
| IP-based Bandwidth Limit | Support |
| IP-based Session Limit | Support |
| QoS (Quality of Service) | TOS |
| VoIP Prioritization | Support |
| APP QoS | Support |
Management | |
| Local Service | HTTP |
| Config Backup/Restore | Support |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| 2-Level Administration Privilege | Support |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | E-mail, SMS |
| SNMP | v1, v2c, v3 |
| Syslog | Support |
Virtual AP Controller (Device up to) | 20 |
Virtual Switch Controller | 5 |
| VigorACS Management (Since f/w) | V5.3.0 |
Physical | |
| Power Input | DC 12V @ 0.9A |
| Max. Power Consumption (watts) | 10 |
| Dimension (mm) | 207 x 131 x 42 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
รับประกัน | 2 ปี |
