Product Specification |

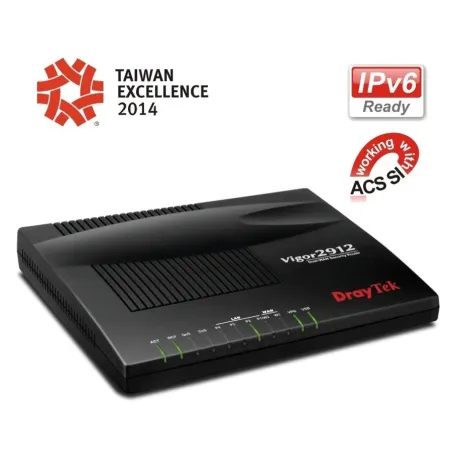

Overview | DrayTek Vigor2912 Dual WAN Load-Balance VPN Router รวม Internet 2 คู่สาย, VPN 16 Tunnels, NAT Sessions สูงถึง 30,000 NAT Sessions, QOS, รองรับ 3G/4G Modem |

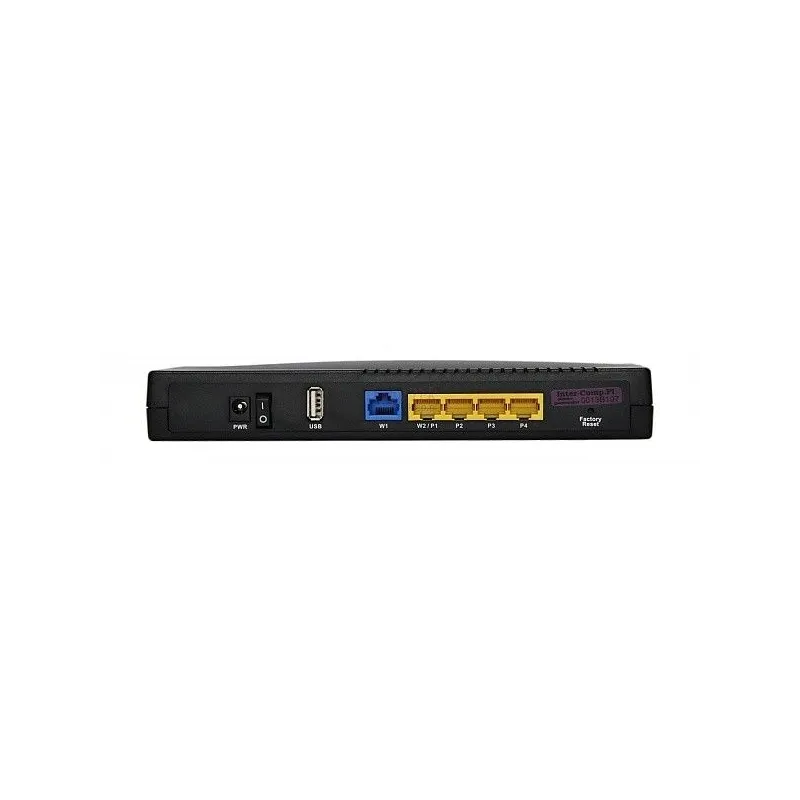

Hardware Interface | 1 x 10/100 Base-TX WAN, RJ45, Configurable WAN2 on P1
4 x 10/100 Base-TX LAN, RJ45
1 x USB Host 2.0 (for Printer/3G USB Modem/USB Disk)
1 x Factory Reset Button
1 x Wireless On/Off/ WPS Button |
WAN Feature | IPv4- DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
IPv6- Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd Dual Stack:DHCPv6 Client, Static IPv6, DSLiteUSB WAN
PPP
Outbound Policy-based Load-balance
WAN Connection Failover
รองรับ 30,000 NAT Sessions |
Firewall | Multi-NAT, DMZ Host, Port-Redirection and Open Port
Object-based Firewall
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS/DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
IPv6 Firewall
User Management |
VPN | Up to 16 VPN Tunnels
Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
Encryption : MPPE and Hardware-based AES/DES/3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared key and Digital Signature (X.509)
LAN-to-LAN, Host-to-LAN
IPsec NAT-traversal (NAT-T)
Dead Peer Detection (DPD)
VPN Backup Mode
DHCP over IPSec
VPN Pass-through
VPN Wizard
mOTP |
USB | Printer Sharing
File Sharing:
Support FAT32 File System
Support FTP Function for File Sharing
Support Samba for File Sharing
3.5G (HSDPA)/4G (LTE)* as WAN3 |
Bandwidth Management | QoS :
Guarantee Bandwidth for VoIP (VoIP Qos)Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Bandwidth/Session Limitation
Layer-3 (TOS/DSCP) QoS Mapping
Smart Bandwidth Limitation (Triggered by Traffic/Session) |
Network Management | Web-based User Interface (HTTP/HTTPS)
Quick Start Wizard
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Configuration Backup/Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
Logging via Syslog
SNMP V2/V3
Management Session Time Out
Two-level Management (Admin/User Mode)
External Device
TR-069
Support Smart Monitor (Up to 30 PCs) |
Content Security Management | IM/P2P Application
URL Content Filter :
URL Keyword Blocking (White List and Black List)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
Excepting Subnets
GlobalView Web Content Filter |
Network Features | DHCP Client/Relay/Server
RADVD for IPv6
DHCPv6 Server
Static IPv6 Address Configuration
IGMP Proxy V2/V3
IGMP Snooping
Dynamic DNS
NTP Client
RADIUS Client
DNS Cache/Proxy
UPnP 30 Sessions
Routing Protocol:
Static Routing
RIP V2
VLAN Tagging(802.1q) on LAN* |
Temperature | Operating : 0?C ~ 45?C
Storage : -25?C ~ 70?C |
Max. Power | 10 Watt |
Dimension | L220 * W160 * H36 (mm) |
Power | DC 12V /1A |
รับประกัน | สินค้ารับประกัน 2 ปี, Adapter 3 เดือน |
|
