Product Specification
|
|
Overview
|

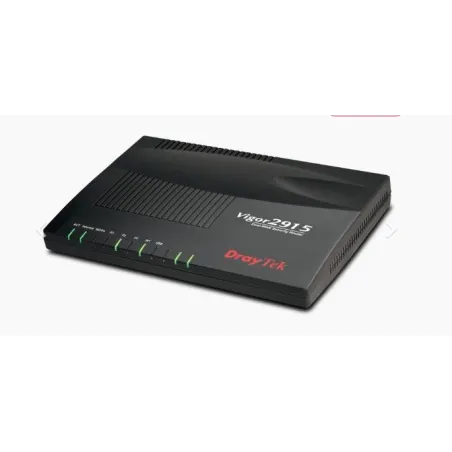

DrayTek Vigor2915 Internet Gateway VPN Router รองรับ VPN 16 Tunnels, 8 SSL VPN, 30000 NAT Sessions, 500Mbps รองรับ 30 Device
Firewall, QOS, VLAN, รองรับ 4G LTE USB Modem
|

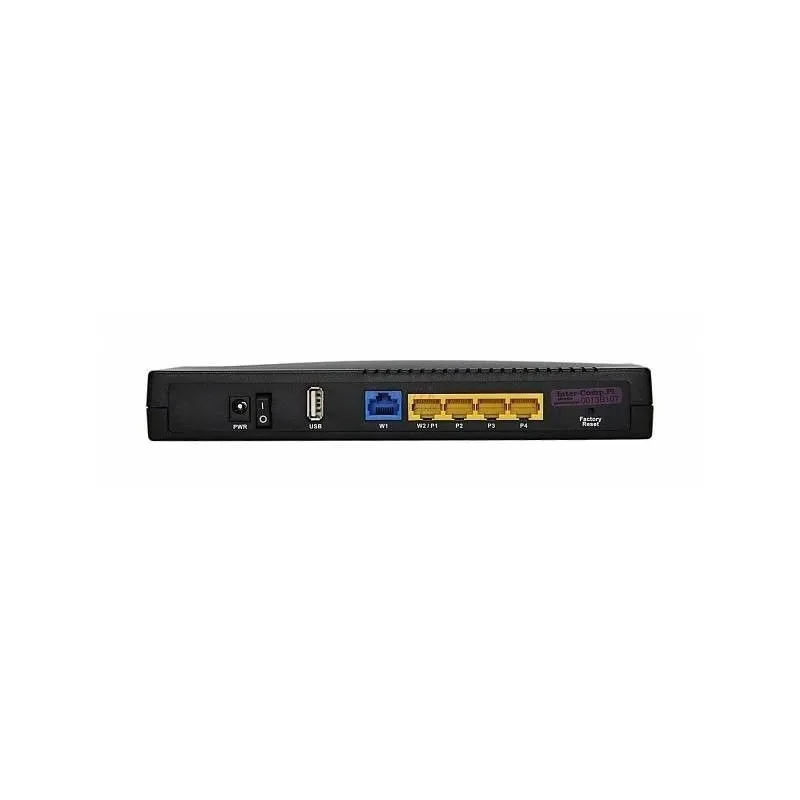

Interface
|
|
Fixed WAN Port
|
1x 10/100/1000Base-TX, RJ-45
|
|
WAN/LAN Switchable Port
|
1x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 4)
|
|
Fixed LAN Port
|
3x 10/100/1000Base-TX, RJ-45
|
|
USB Port
|
1x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
|
|
Button
|
1x Factory Reset Button
1x Wireless On/OFF/WPS Button (ac model)
|
|
2.4G WLAN
|
802.11n 2x2 MIMO 400 Mbps (ac model)
|
|
5G WLAN
|
802.11ac 2x2 MIMO 867 Mbps (ac model)
|
Performance
|
|
NAT Throughput
|
500 Mbps
|
|
NAT Throughput w/ Hardware Acceleration
|
930 Mbps
|
|
IPsec VPN Performance
|
250 Mbps (AES 256 bits)
|
|
SSL VPN Performance
|
150 Mbps
|
|
Max. Number of NAT Sessions
|
30,000
|
|
Max. Concurrent VPN Tunnels
|
16
|
|
Max. Concurrent OpenVPN + SSL VPN
|
8
|
Internet Connection
|
|
IPv4
|
PPPoE, DHCP, Static IP, PPTP/L2TP
|
|
IPv6
|
PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
|
|
802.1p/q Multi-VLAN Tagging
|
|
|
Multi-VLAN for Triple Play
|
|
|
Wireless WAN
|
(ac model)
|
|
WAN Load Balancing
|
Support
|
|
WAN Failover
|
Support
|
|
WAN Active on Demand
|
Link Failure, Traffic Threshold
|
|
Connection Detection
|
ARP, Ping
|
|
WAN Data Budget
|
Support
|
|
Dynamic DNS
|
Support
|
|
DrayDDNS
|
Support
|
LAN Management
|
|
VLAN
|
802.1q Tag-based, Port-based
|
|
Max. Number of VLAN
|
8
|
|
Number of LAN Subnet
|
4
|
|
DHCP Server
|
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
|
|
Port Mirroring
|
Support
|
|
Local DNS Server
|
Support
|
|
Conditional DNS Forwarding
|
Support
|
|
Hotspot Web Portal
|
Support
|
|
Hotspot Authentication
|
Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
|
Networking
|
|
Routing
|
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIPv1/v2
|
|
Policy-based Routing
|
Protocol, IP Address, Port, Domain
|
|
DNS Security (DNSSEC)
|
Support
|
|
Multicast
|
IGMP Proxy v2/v3, IGMP Snooping, Bonjour
|
|
SMB File Sharing
|
(Requires external storage)
|
VPN
|
|
LAN-to-LAN
|
Support
|
|
Teleworker-to-LAN
|
Support
|
|
Protocols
|
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
|
|
User Authentication
|
Local, RADIUS, LDAP, mOTP
|
|
IKE Authentication
|
Pre-Shared Key, X.509
|
|
IPsec Authentication
|
SHA-1, SHA-256, MD5
|
|
Encryption
|
MPPE, AES, DES, 3DES
|
|
VPN Trunk (Redundancy)
|
Load Balancing, Failover
|
|
Single-Armed VPN
|
Support
|
|
NAT-Traversal (NAT-T)
|
Support
|
Firewall & Content Filtering
|
|
NAT
|
Port Redirection, Port Triggering, DMZ Host, UPnP
|
|
ALG (Application Layer Gateway)
|
SIP, RTSP, FTP, H.323
|
|
VPN Pass-Through
|
PPTP, L2TP, IPsec
|
|
IP-based Firewall Policy
|
Support
|
|
Content Filtering
|
Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
|
|
DoS Attack Defense
|
Support
|
|
Spoofing Defense
|
Support
|
Bandwidth Management
|
|
IP-based Bandwidth Limit
|
Support
|
|
IP-based Session Limit
|
Support
|
|
QoS (Quality of Service)
|
TOS, DSCP, 802.1p, IP Address, Port, Application
|
|
VoIP Prioritization
|
Support
|
|
APP QoS
|
Support
|
Wireless LAN (ac model)
|
|
Number of SSID
|
4 per band
|
|
Security Mode
|
WEP, WPA, WPA2, Mixed(WPA+WPA2)
|
|
Authentication
|
Pre-Shared Key, 802.1X
|
|
WPS
|
PIN, PBC
|
|
WDS
|
Bridge, Repeater (5G only)
|
|
Access Control
|
Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
|
|
AirTime Fairness
|
-
|
|
Band Steering
|
-
|
|
WMM
|
-
|
Management
|
|
Local Service
|
HTTP, HTTPS, Telnet, SSH, TR-069
|
|
Config File Export & Import
|
Support
|
|
Config File Compatibility
|
Vigor2912
|
|
Firmware Upgrade
|
TFTP, HTTP, TR-069
|
|
2-Level Administration Privilege
|
Support
|
|
Access Control
|
Access List, Brute Force Protection
|
|
Notification Alert
|
SMS, E-mail
|
|
SNMP
|
v2, v2c, v3
|
|
Syslog
|
Support
|
|
Managed by VigorACS
|
Support
|
Physical
|
|
Power Supply
|
DC 12V @ 2A
|
|
Max. Power Consumption
|
11.3 watts (ac model)
|
|
Dimension
|
220mm x 160mm x 36mm
|
|
Weight
|
400g (ac model)
|
|
Operating Temperature
|
0 to 45°C
|
|
Storage Temperature
|
-25 to 70°C
|
|
Operating Humidity (non-condensing)
|
10 to 90%
|
|
รับประกัน
|
2 ปี
|
