Product Specification |

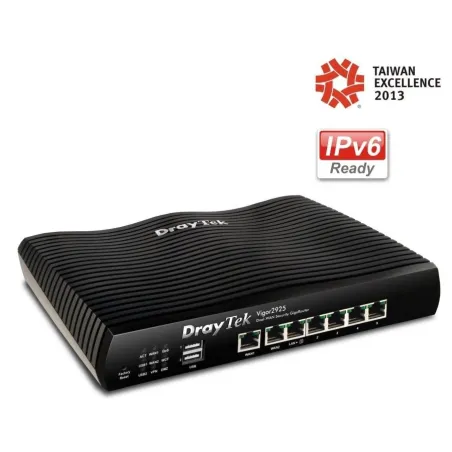

Overview | DrayTek Vigor2925ac Gigabit Dual WAN Load-Balance VPN Router รวม Internet 2 คู่สาย, Wireless AC Dual-Band, VPN 50 Tunnels, 50,000 NAT Sessions รองรับ 3G Modem |
Hardware Interface | 2 x 1000Base-TX, RJ-45 (WAN1/WAN2)
5 x 10/100/1000Base-TX LAN, RJ-45 Configurable Physical DMZ on Port1
2 x USB Host 2.0 (for Printer/3G USB Modem/USB Disk)
1 x Factory Reset Button |
WAN Feature | IPv4- DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
IPv6- Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd
Dual Stack:DHCPv6 Client, Static IPv6, DSLite
USB WAN: PPP
Outbound Policy-based Load-balance
WAN Connection Failover
รองรับ 50,000 NAT Sessions |
Firewall | Multi-NAT, DMZ Host, Port-Redirection and Open Port
Object-based Firewall
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS/DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
IPv6 Firewall
User Management |
VPN | Up to 50 VPN Tunnels
Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
Encryption : MPPE and Hardware-based AES/DES/3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared key and Digital Signature (X.509)
LAN-to-LAN, Host-to-LAN
IPsec NAT-traversal (NAT-T)
Dead Peer Detection (DPD)
VPN Backup Mode
DHCP over IPSec
VPN Pass-through
VPN Wizard
mOTP
SSL VPN (Up to 25 Tunnels)
VPN Trunk (Load-Balancing/Backup) |
| Wireless AP | 802.11ac for ac/Vac model
802.11n with Concurrent Dual Band for
n-plus/Vn-plus model
802.11n with 2.4GHz only for n model
Wireless Client List
Wireless LAN Isolation
64/128-bit WEP
WPA/WPA2
Wireless Wizard
Hidden SSID
WPS
MAC Address Access Control
Access Point Discovery
WDS (Wireless Distribution System)
802.1x Authentication
Multiple SSID
Wireless Rate-control
IEEE802.11e: WMM (Wi-Fi Multimedia)
SSID VLAN Grouping with LAN Port
(Port-based VLAN)
|
USB | Printer Sharing
File Sharing:
Support FAT32 File System
Support FTP Function for File Sharing
Support Samba for File Sharing
3.5G (HSDPA)/4G (LTE)* as WAN |
Bandwidth Management | QoS :
Guarantee Bandwidth for VoIP (VoIP Qos)Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Session Limitation: Default & Specific Limitation
Bandwidth Limitation
Default & Specific Limitation
Auto Adjustment by Exceeding Session/Available Bandwidth
TOS/DSCP QoS Mapping
Smart Bandwidth Limitation (Triggered by Traffic/ Session) |
Network Management | Web-Based User Interface (HTTP/HTTPS)
Quick Start Wizard
Dashboard
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Configuration Backup/Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
Logging via Syslog
SNMP Management MIB-II (v2/v3)
Object-based SMS/ Mail Alert
Management Session Time Out
2-level management (Admin/User Mode)
TR-069
User Management
AP Management *External Device
LAN Port Monitoring
Support Smart Monitor (50) |
Content Security Management | IM/P2P Application
URL Content Filter :
URL Keyword Blocking (White List and Black List)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
Excepting Subnets
GlobalView Web Content Filter |
Network Features | DHCP Client/Relay/Server
RADVD for IPv6
DHCPv6 Server
Static IPv6 Address Configuration
IGMP Proxy V2/V3
IGMP Snooping
Dynamic DNS
NTP Client
RADIUS Client
DNS Cache/Proxy
UPnP 30 Sessions
Routing Protocol:
Static Routing
RIP V2
Port-based/ VLAN Tagging(802.1q)
Policy Routing
DNS Cache/Proxy and LAN DNS |
Temperature | Operating : 0?C ~ 45?C
Storage : -25?C ~ 70?C |
Max. Power | 10 Watt |
Dimension | L240.96 * W165.07 * H43.96 ( mm ) |
Power | DC 12V /1.5A |
รับประกัน | สินค้ารับประกัน 1 ปี, Adapter 3 เดือน |
|
