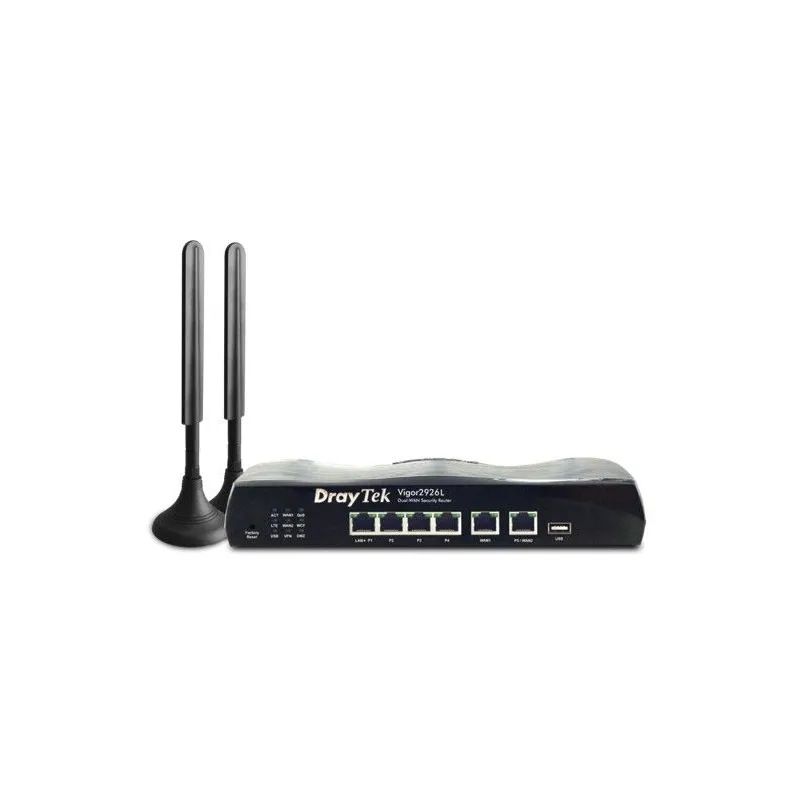

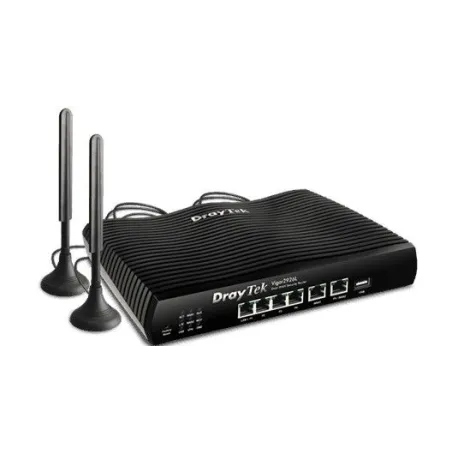

DrayTek Vigor2926L Dual WAN Load-balance VPN Router 4G/LTE Sim Slot, 50Tunnels

DrayTek Vigor2926L Product Specification

Overview

DrayTek Vigor2926L Gigabit Dual WAN Load-Balance VPN Router, พร้อม Sim Slot 4G/LTE และเสาอากาศรับสัญญาณ 4G ได้ดีมากขึ้น, รองรับ VPN 50 Tunnels, NAT Throughput 500Mbps, 50,000 NAT Session

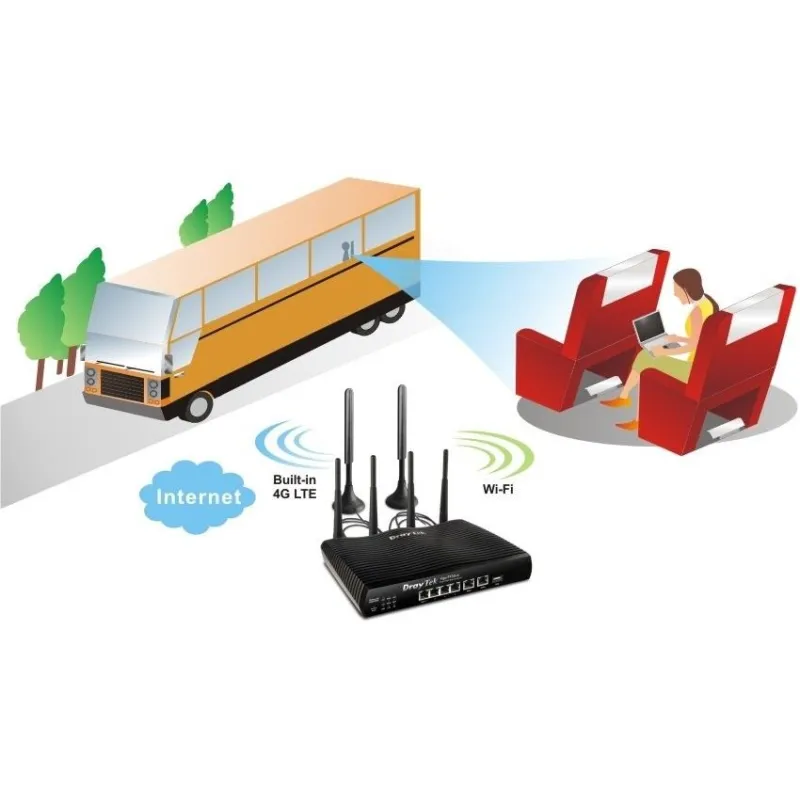

รองรับการทำ VPN ผ่านเครือข่าย 4G/LTE

WAN Port

2x Gigabit Ethernet

LAN Port

4x Gigabit Ethernet

SIM Slot

1x Standard-Sized

USB Port

1x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer

2.4G WLAN

-

5G WLAN

-

NAT Throughput

500 Mbps

NAT Throughput w/ Hardware Acceleration

900 Mbps

IPsec VPN Performance

80 Mbps (AES 256 bits)

SSL VPN Performance

45 Mbps

Max. Number of NAT Sessions

50,000

Max. Concurrent VPN Tunnels

50

Max. Concurrent OpenVPN + SSL VPN

25

LTE Category

4

Max. Data Rate

150 Mbps downlink, 50 Mbps uplink

FDD Band

1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz)

TDD Band

38 (2600MHz), 40 (2300MHz)

WCDMA (3G) Band

1, 8

GSM/GPRS/EDGE Band

900, 1800 MHz

For other band availability, please contact your local DrayTek distributor or us

IPv4

PPPoE, DHCP, Static IP, PPTP/L2TP

IPv6

PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel

802.1p/q Multi-VLAN Tagging

Yes

Multi-VLAN/PVC

Yes

Wireless WAN

(wireless model)

3G/4G/LTE WAN with USB modem

Yes

Load Balancing

IP-based, Session-based

WAN Active on Demand

Link Failure, Traffic Threshold

Connection Detection

ARP, Ping

WAN Data Budget

Yes

Dynamic DNS

Yes

DrayDDNS

Yes

VLAN

802.1q Tag-based, Port-based

Max. Number of VLAN

16

DHCP Server

Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC

LAN IP Alias

Yes

Wired 802.1x Authentication

Yes

Port Mirroring

Yes

Local DNS Server

Yes

Conditional DNS Forwarding

Yes

Hotspot Web Portal

Yes

Hotspot Authentication

Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server

Routing

IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP

Policy-based Routing

Protocol, IP Address, Port, Domain, Country

Multicast

IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour

High Availability

Yes

DNS Security (DNSSEC)

Yes

Local RADIUS server

Yes

SMB File Sharing

(Requires external storage)

LAN-to-LAN

Yes

Teleworker-to-LAN

Yes

Protocols

PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN

User Authentication

Local, RADIUS, LDAP, TACACS+, mOTP

IKE Authentication

Pre-Shared Key, X.509

IPsec Authentication

SHA-1, SHA-256, MD5

Encryption

MPPE, DES, 3DES, AES

VPN Trunk (Redundancy)

Load Balancing, Failover

Single-Armed VPN

Yes

NAT-Traversal (NAT-T)

Yes

NAT

Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP

ALG (Application Layer Gateway)

SIP, RTSP, FTP, H.323

VPN Pass-Through

PPTP, L2TP, IPsec

IP-based Firewall Policy

Content Filtering

Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)

DoS Attack Defense

Yes

Spoofing Defense

Yes

IP-based Bandwidth Limit

Yes

IP-based Session Limit

Yes

QoS (Quality of Service)

TOS, DSCP, 802.1p, IP Address, Port, Application

VoIP Prioritization

Yes

Number of SSID

-

Security

-

Authentication

-

WDS

-

Access Control

-

AirTime Fairness

-

Band Steering

-

MU-MIMO

-

TxBF

-

WMM

-

Local Service

HTTP, HTTPS, Telnet, SSH, FTP, TR-069, SMS Sending & Recieving

Config File Export & Import

Yes

Config File Compatibility

Vigor2925

Firmware Upgrade

TFTP, HTTP, TR-069

2-Level Administration Privilege

Yes

Access Control

Access List, Brute Force Protection

Notification Alert

SMS, E-mail

SMS-Initiated Commands

Reboot, Reply with Router Status

SNMP

v1, v2c, v3

Syslog

Yes

Managed by VigorACS

Yes

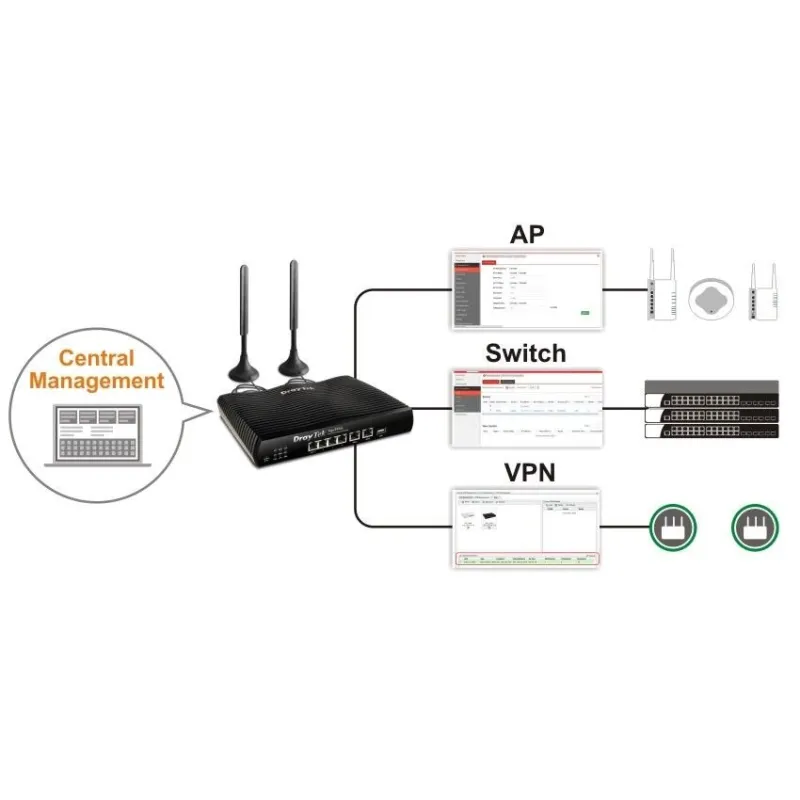

Central AP Management

20 VigorAP

Central Switch Management

10 VigorSwitch

Power Supply

DC 12V @ 1.5-2A

Max. Power Consumption

25 watts (Lac model)

Dimension

241mm x 166mm x 46mm

Weight

1.68 kg (Lac model)

Operating Temperature

0 to 45?C

Storage Temperature

-25 to 70?C

Operating Humidity (non-condensing)

10 to 90%

Certificate

CE, FC , อุปกรณ์ได้ผ่านการตรวจสอบและได้รับอนุญาติถูกต้องตาม กสทช.

รับประกัน

สินค้ารับประกัน 2 ปี
