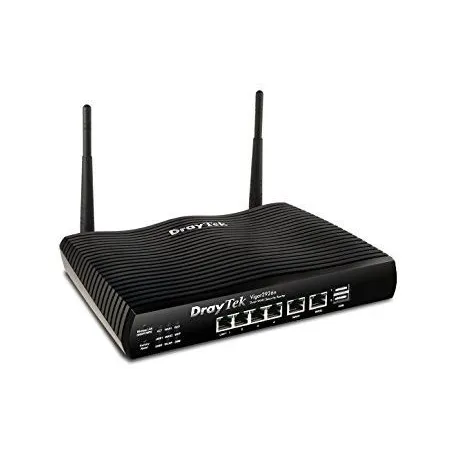

DrayTek Vigor2926n Dual WAN Load-balance VPN Router Wireless N 2.4Ghz VPN 50 Tunnels 3G USB

Product Specification

Overview

DrayTek Vigor2926n Gigabit Dual WAN Load-Balance VPN Router รวม Internet 2 คู่สาย, Wireless N 2.4GHz, VPN 50 Tunnels, 50,000 NAT Sessions รองรับ 3G Modem

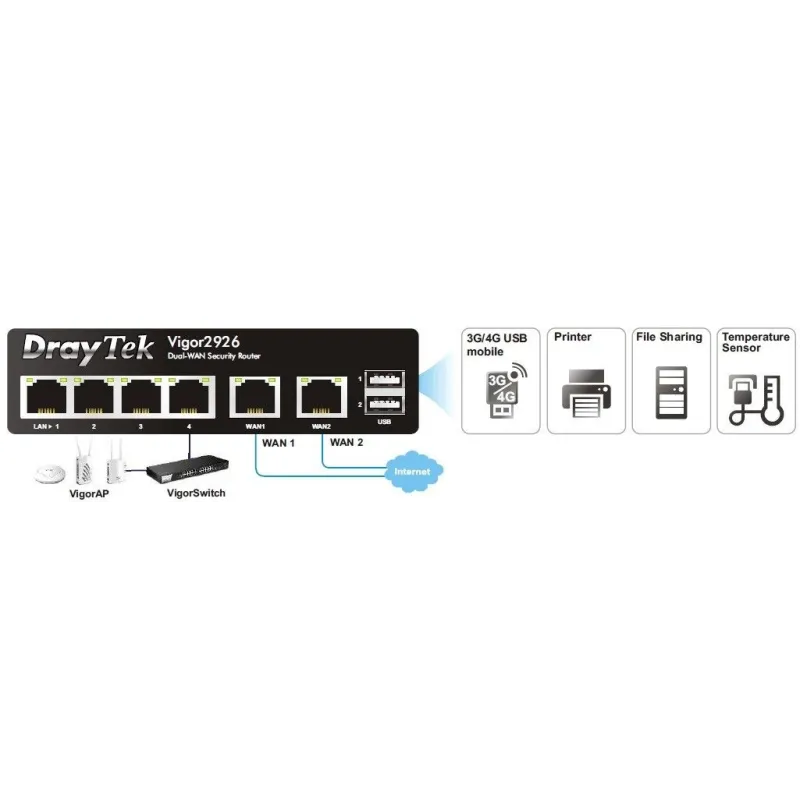

Physical Interfaces:

• LAN Ports (Switch)
  • 5 X Gigabit Ethernet (1000Mb/s) Ports (Configurable Physical DMZ on Port4)
    LAN Port 5 Switchable with WAN2 (req. f/w 3.8.8 or later)
• WAN Ports:
  • WAN1 : Gigabit Ethernet (1000Mb/s) Ethernet
  • WAN2 : Gigabit Ethernet (1000Mb/s) Ethernet for load balance and WAN failover
    Switchable with LAN Port 5
  • WAN3 : USB 2.0 Port for 3G/4G Modem, thermometer or Printer
  • WAN4 : USB 2.0 Port for 3G/4G Modem or Printer
  • Wireless WAN - Wireless interface can provide WAN connectivity

Performance:

Firewall: Up to 400Mb/s max

IPSec VPN: Up to 60Mb/s max

Load Balance/Failover Features:

• Outbound Policy-Based Load-Balance to direct traffic via:

  • NAT or Routing
  • WAN Interface
  • LAN Interface
  • Specific LAN Gateway
  • VPN Tunnel
• IP-Based or Session-Based Load Balance modes NEW!
• WAN Connection Fail-over
• BoD (Bandwidth on Demand)
• Configurable Load-Balance pool, specify WAN interfaces to load balance
• WAN Budget

Wireless LAN Features ('n' and 'ac' Models Only):

• 2.4GHz 802.11n and 5GHz 802.11ac (Vigor 2926ac only)
• 2.4GHz 802.11n  (Vigor 2926 'n' models)
• Backward Compatibility for 802.11b/g (Vigor 2926 'n' models)
• Backward Compatibility for 802.11a/b/g/n (Vigor 2926ac only)
• Wireless Features on Vigor 2926ac:
  • 802.11ac (5Ghz)
  • 4x4 MU-Mimo (5Ghz)
  • Up to 4 Spatial Streams
  • TX Beam Forming
  • 1733Mb/s (5Ghz) + 300Mb/s (2.4Ghz) Total Link Rate
  • Dual-band (2.4/5Ghz) simultaneous wireless
  • 256QAM
  • Extended DFS frequency range
• TX Beam Forming
• Multiple SSID : Create up to 4 virtual wireless LANs (independent or joined)
• Packet Aggregation and Channel Bonding
• Optional Higher Gain or directional aerials available - Click Here.
• Active Client list in Web Interface
• Wireless LAN Isolation (from VLAN groups and wired Ethernet interfaces)
• 64/128-bit WEP Encryption
• WPA/WPA2 Encryption
• Switchable Hidden SSID
• Restricted access list for clients (by MAC address)
• Time Scheduling (WLAN radio can be disabled at certain times of day)
• Time Scheduling for individual SSIDs
• Access Point Discovery
• WDS (Wireless Distribution system) for WLAN Bridging and Repeating
• 802.1x Radius Authentication
• Wireless VLAN
• Wireless Rate-Control
• Automatic Power Management
• 802.11e WMM (Wi-Fi Multimedia)
• Station Control, limit wireless client access time per day
• Airtime Fairness NEW!
• Band Steering NEW!
• Wireless WAN mode for WAN2, switchable with Ethernet (Wireless models only) NEW!

WAN Protocols (Ethernet):

DHCP Client
Static IP
PPPoE
PPTP
BPA

Firewall & Security Features:

• CSM (Content Security Management):
  • URL Keyword Filtering - Whitelist or Blacklist specific sites or keywords in URLs
  • Block Web sites by category (e.g. Adult, Gambling etc. Subject to subscription)
  • Prevent accessing of web sites by using their direct IP address (thus URLs only)
  • Blocking automatic download of Java applets and ActiveX controls
  • Blocking of web site cookies
  • Block http downloads of file types :
    • Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
    • Compressed : .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
    • Multimedia : .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU
  • Time Schedules for enabling/disabling the restrictions
  • Block popular P2P (Peer-to-Peer) file sharing programs
  • Block Instant Messaging programs (e.g. IRC, Skype/Yahoo Messenger etc.)
• DNS Filter: Use DNS to enforce categorisation
• Web Portal
• Multi-NAT (32 WAN IPs per WAN1 & WAN2)
• DMZ Host
• DMZ Port (via LAN port P1, switchable)
• 40 Port Redirection rules
• 40 Open Port rules (10 port ranges per rule)
• Policy-Based Firewall
• MAC Address Filter
• SPI ( Stateful Packet Inspection ) with new FlowTrack Mechanism
• DoS / DDoS Protection
• IP Address Anti-spoofing
• E-Mail Alert and Logging via Syslog
• Bind IP to MAC Address
• User Management:
  • Up to 200 Profiles
  • Supports external authentication via LDAP or RADIUS
  • Per User Bandwidth and Time Quota
  • Schedule Control to delete or disable account automatically

Bandwidth Management:

• Quality of Service (QoS - For devices in the NAT subnets according to source or destination IP)

  • Guaranteed Bandwidth for VoIP
  • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
  • Layer 2&3 (802.1p & TOS/DCSP)
  • DiffServ Code Point Classifying
  • 4-level Priority for each Direction (Inbound / Outbound)
  • Bandwidth Borrowed
  • App QoS: Classify traffic by Application NEW!
• Temporary (5 minute) Quick Blocking of any LAN Client
• Bandwidth Limit (Shared or individual limit)
• Smart Bandwidth Limitation (Triggered by Traffic / Session)
• Session Limit

Network/Router Management:

Web-Based User Interface (HTTP / HTTPS)
CLI ( Command Line Interface ) / Telnet / SSH
Web Console: Access CLI through Web Interface
Administration Access Control
Brute Force Protection
Configuration Backup / Restore
Configuration Import from Vigor 2920 and Vigor 2925
Built-in Diagnostic Function
Firmware Upgrade via Web Interface, TFTP, FTP
Logging via Syslog
Supports SmartMonitor (up to 50 IPs monitored)
SNMP v3 Management with MIB-II
TR-069
TR-104
Access Point Management: Centrally Manage up to 20 DrayTek VigorAPs
Switch Management: Centrallly Manage up to 10 DrayTek VigorSwitches NEW!

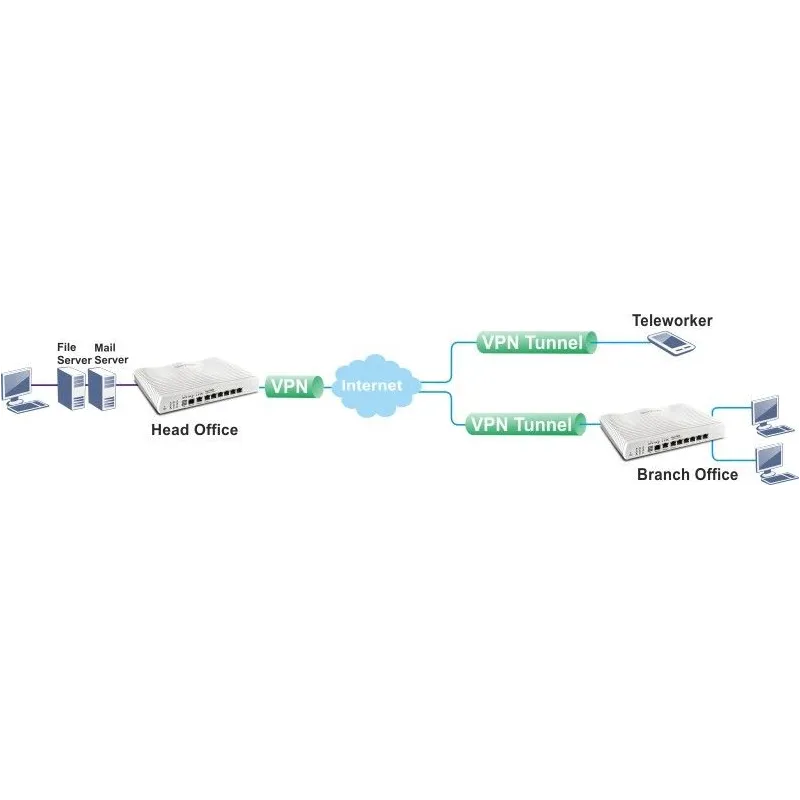

VPN Facilities:

• Up to 50 Concurrent VPN Tunnels (incoming or outgoing)
• Tunnelling Protocols:
  • PPTP
  • IPSec
  • L2TP
  • L2TP over IPSec
  • DrayTek SSL
  • GRE NEW!
• IPSec Main and Agressive modes
• IKE Phase 1 DiffieHelman Groups 1,2,5 & 14
• IKE Phase 2 DiffieHelman Groups 1,2,5 & 14 (will match phase 1 selection)
• IKEv2 & IKEv2 NEW!
• Encryption : MPPE, DES / 3DES (168bits) and Hardware-Based AES (128/192/256bits)
• Authentication : Hardware-Based MD5, SHA-1 and SHA-256
• IKE Authentication : Pre-shared Key or X.509 Digital Signature
• SSL VPN for teleworkers - Up to 25 simultaneous users. Proxy or tunnel
• LAN-to-LAN & Teleworker-to-LAN connectivity
• DHCP over IPSec
• NAT-Traversal ( NAT-T )
• Dead Peer Detection (DPD)
• VPN Pass-Through
• MOTP (Mobile One Time Password) for two factor authentication (2FA)
• Virtual IP Mapping, map a remote IP subnet/range to another range to resolve IP subnet/range conflicts
• Port forwarding (Port Redirection, Open Ports) to remote clients connected via an IPsec LAN to LAN VPN NEW!

Network Features:

• Port-Based VLAN (Inclusive/Exclusive Groups)
• 802.1q VLAN Tagging
• Port Mirroring
• 802.1X Port Authentication
• Multi Subnet DHCP Servers with DHCP Relay
• LAN Clients :  Up to 1022 per subnet (for subnets 1-3)
• Custom DHCP Option support
• Dynamic DNS
• DNSSEC support NEW!
• DNS Transparent Proxy
• DNS Caching
• LAN DNS (supports CNAME)
• NTP Client (Synchronise Router Time)
• Call Scheduling (Enable/Trigger Internet Access by Time)
• RADIUS Client
• LDAP Client
• TACACS+ Client
• High Availability NEW!
• Internal RADIUS Server NEW!
• Microsoft? UPnP Support
• Maximum MTU 1534
• Routing Protocols:

  • Static Routing (30 routes)
  • RIP V2
  • RIPng for IPv6 NEW!
  • BGP NEW!

Operating Requirements:

Rack Mountable (Optional Vigor RM1 mounting bracket required)
Wall Mountable
Temperature Operating : 0?C ~ 45?C
Storage : -25?C ~ 70?C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 18 Watt Max.
Dimensions: L240.96 * W165.07 * H43.96 ( mm )
Operating Power: DC 12V (via external PSU, supplied)
Warranty : Two (2) Years RTB
Power Requirements : 220-240VAC

รับประกัน

สินค้ารับประกัน 2 ปี
