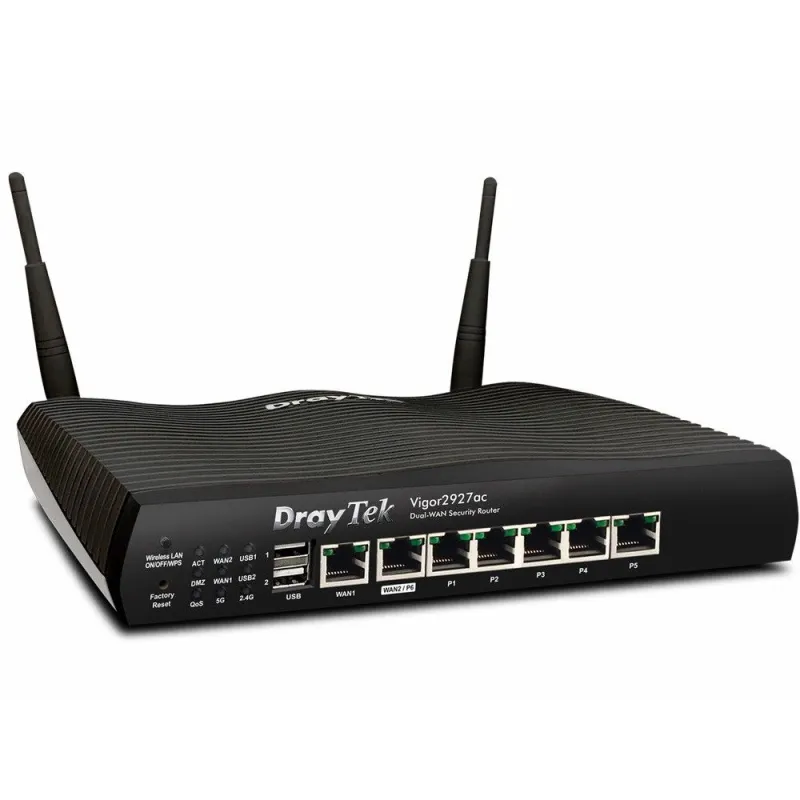

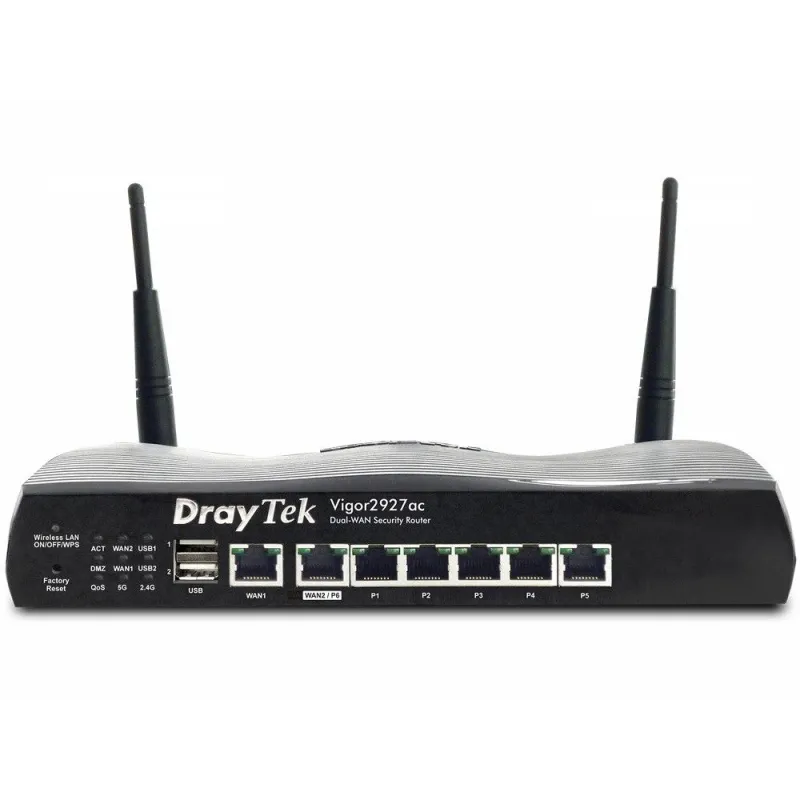

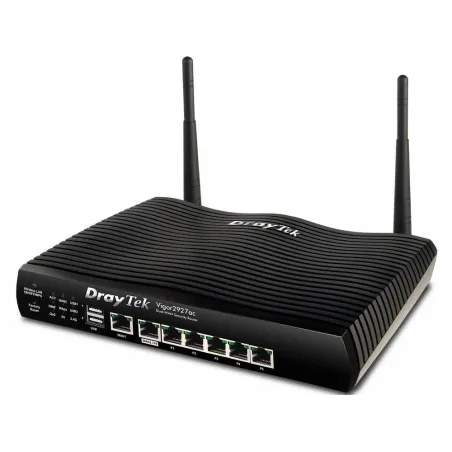

DrayTek Vigor2927ac Dual-WAN VPN Firewall Router WIFI ac รองรับ VPN 50 Tunnels, 25 SSL VPN, 60K NAT Sessions, 800Mbps รองรับ 50 Device
DrayTek Vigor2927 Datasheet
DrayTek Vigor2927 User-Guide
Product Specification | |
Overview | DrayTek Vigor2927ac Dual-WAN VPN Firewall Router WIFI ac รองรับ VPN 50 Tunnels, 25 SSL VPN, 60K NAT Sessions, 800Mbps รองรับ 50 Device Firewall, QOS, VLAN, รองรับ 4G LTE USB Modem |
Interface | |
Fixed WAN Port | 1x GbE RJ-45 |
WAN/LAN Switchable Port | 1x GbE RJ-45 |
Fixed LAN Port | 5x GbE RJ-45 |
USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
RJ-11 Port for Voice | 2x FXS (V model) |
Wi-Fi Antenna | 2x External Dipole |
2.4G WLAN | 802.11n 2x2 MIMO 400Mbps (wireless model) |
5G WLAN | 802.11ac Wave 2 2x2 MU-MIMO 867Mbps (dual-band model) |
Performance | |
NAT Throughput | 800 Mbps |
IPsec VPN Performance | 290 Mbps (AES 256 bits) |
SSL VPN Performance | 120 Mbps |
Max. Number of NAT Sessions | 60,000 |
Max. Concurrent VPN Tunnels | 50 |
Max. Concurrent OpenVPN + SSL VPN | 25 |
Internet Connection | |
IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
802.1p/q Multi-VLAN Tagging | Support |
Multi-VLAN/PVC | Support |
Wireless WAN | (wireless model) |
3G/4G/LTE WAN with USB modem | Support |
Load Balancing | IP-based, Session-based |
WAN Active on Demand | Link Failure, Traffic Threshold |
Connection Detection | ARP, Ping |
WAN Data Budget | Support |
Dynamic DNS | Support |
DrayDDNS | Support |
LAN Management | |
VLAN | 802.1q Tag-based, Port-based |
Max. Number of VLAN | 16 |
Number of LAN Subnet | 8 |
DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
LAN IP Alias | Support |
Wired 802.1x Authentication | Support |
Port Mirroring | Support |
Local DNS Server | Support |
Conditional DNS Forwarding | Support |
Hotspot Web Portal | Support |
Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking | |
Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
High Availability | Support |
DNS Security (DNSSEC) | Support |
Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
Local RADIUS server | |
SMB File Sharing | (Requires external storage) |
VPN | |
LAN-to-LAN | Support |
Teleworker-to-LAN | Support |
Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
IKE Authentication | Pre-Shared Key, X.509 |
IPsec Authentication | SHA-1, SHA-256 |
Encryption | MPPE, DES, 3DES, AES |
VPN Trunk (Redundancy) | Load Balancing, Failover |
Single-Armed VPN | Support |
NAT-Traversal (NAT-T) | Support |
DrayTek VPN Matcher | Support |
Firewall & Content Filtering | |
NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
VPN Pass-Through | PPTP, L2TP, IPsec |
IP-based Firewall Policy | Support |
Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
DoS Attack Defense | Support |
Spoofing Defense | Support |
Bandwidth Management | |
IP-based Bandwidth Limit | Support |
IP-based Session Limit | Support |
QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
VoIP Prioritization | |
Wireless LAN (wireless ac model) | |
Number of SSID | 4 per radio band |
Security Mode | WEP, WPA, WPA2, Mixed(WPA+WPA2) |
Authentication | Pre-Shared Key, 802.1X |
WPS | PIN, PBC |
WDS | Bridge, Repeater |
Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
AirTime Fairness | Support |
Band Steering | (dual-band model) |
MU-MIMO | (5GHz Only) (dual-band model) |
WMM | |
VoIP Gateway (V model) | |
Protocol | SIP, RTP/RTCP, ZRTP |
SIP Registrars | 12 |
Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
Voice Codec | G.711 A/u law, G.723.1, G.726, G.729 A/B |
Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
Management | |
Local Service | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
Config File Export & Import | Support |
Config File Compatibility | Vigor2926 |
Firmware Upgrade | TFTP, HTTP, TR-069 |
2-Level Administration Privilege | Support |
Access Control | Access List, Brute Force Protection |
Notification Alert | SMS, E-mail |
SNMP | v1, v2c, v3 |
Syslog | Support |
Central VPN Management | 8 VPN |
Central AP Management | 20 VigorAP |
Central Switch Management | 10 VigorSwitch |
Physical | |
Power Supply | DC 12V @ 2A |
Max. Power Consumption | 24 watts (ac model) |
Dimension | 241mm x 165mm x 44mm |
Weight | 630g (ac model) |
Operating Temperature | 0 to 45°C |
Storage Temperature | -25 to 70°C |
Operating Humidity (non-condensing) | 10 to 90% |
Certificate | CE |
รับประกัน | 2 ปี |
รับติดตั้ง , Setup ระบบเชื่อมต่อเครือข่ายระหว่างสาขาด้วย VPN Site To Stite
ระบบจะทำการเชื่อมวง Network แต่ละสาขาเข้าด้วยกัน สามารถ Share File, Printer, Database, VOIP
Share File / Printer ระหว่างสาขา
โทรศัพท์ระหว่างสาขาหากันฟรีด้วย VOIP ผ่าน VPN
ใช้ Smart-Phone เชื่อมเครือข่ายกับสาขาด้วย VPN Client To Site ถ้าใช้ร่วมกับ App Zoiper โทรผ่าน VOIP ทำให้โทรหาสาขาได้ฟรี
เชื่อมต่อฐานข้อมูลที่เป็น RDBMS เช่น MS SQL, Oracle, MySQL ได้ง่าย โดยการสร้าง Connection String ชี้ไปที่ Databse Server ได้เลย
ความเร็วในการเชื่อมต่อ VPN ได้เทียบเท่าค่า Upload ตาม Package ที่สมัคร
