Overview
|

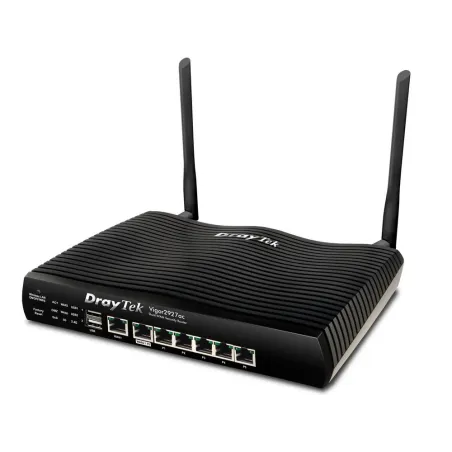

DrayTek Vigor2927ax Dual-WAN VPN Firewall WIFI Router รองรับ VPN 50 Tunnels, WIFI6 2.9Gbps, 60K NAT Sessions, 800Mbps รองรับ 50 Device
รองรับ Firewall, QOS, VLAN, รองรับ 4G LTE USB Modem
|
Performance
|
| NAT Session |
60K |
| Max. NAT (Mbps) |
800 |

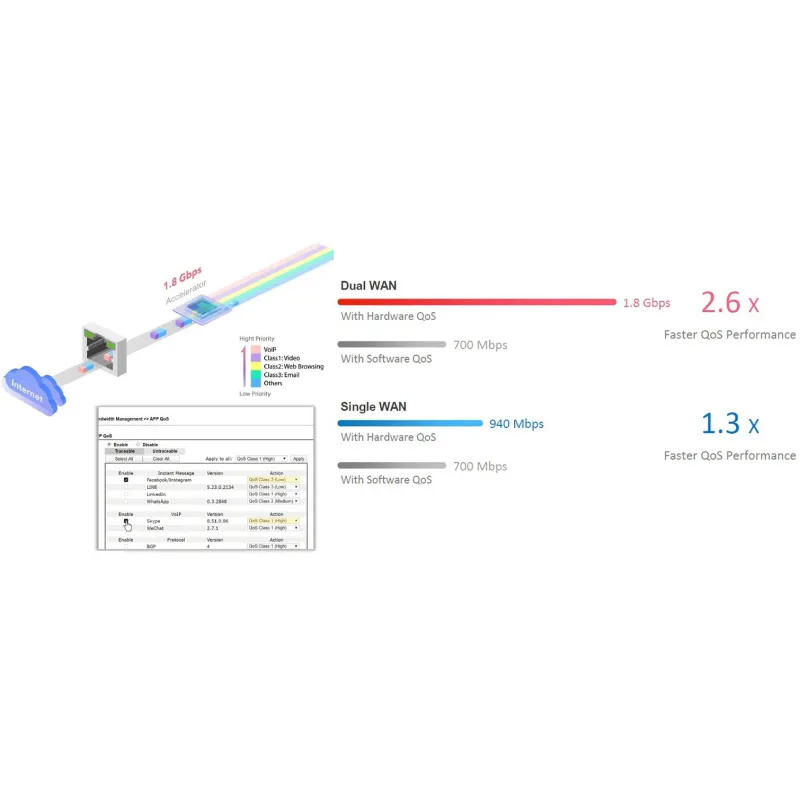

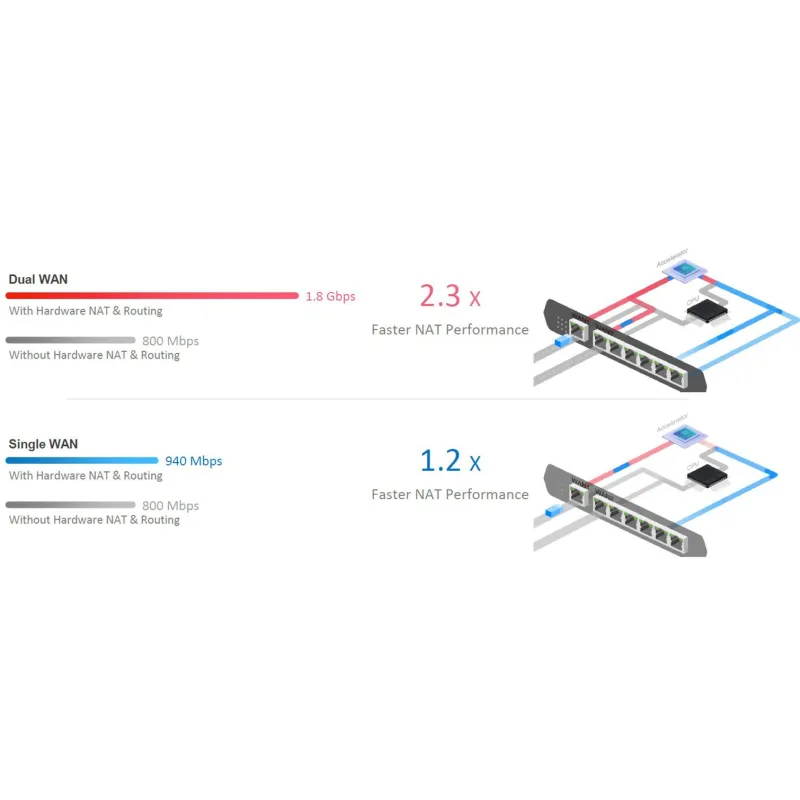

| Max. NAT with Hardware Acceleration : Single WAN (Mbps) |
940 |
| Max. NAT with Hardware Acceleration : Dual WAN (Mbps) |
1800 |
WAN
|
| Ethernet (GbE) |
1
1
|
| Switchable WAN/LAN (GbE) |
1 |
| 3G/4G/LTE (via USB) |
2 |
| Wireless WAN (2.4GHz + 5GHz) |
Support |
Internet Connection
|
| IPv4 |
PPPoE
DHCP
Static IP
PPTP/L2TP |
| IPv6 |
PPP
DHCPv6
Static IPv6
TSPC
AICCU
6rd
6in4
Static Tunnel |
| 802.1p/q Multi-VLAN Tagging |
Support |
| Multi-VLAN/PVC |
Support |
| Failover |
Support |
| Load Balancing |
IP-based, Session-based |
| WAN Active on Demand |
Link Failure, Traffic Threshold |
| Connection Detection |
ARP, Ping, Strict ARP |
| WAN Data Budget |
Support |
| Dynamic DNS |
Support |
| DrayDDNS |
Support |
LAN
|
| Fixed LAN (RJ-45, GbE) |
5 |
| LAN Subnet |
8 |
| DMZ Port |
1 |
| VLAN |
802.1q Tag-based VLAN
Port-based VLAN |
| Max. Number of VLAN |
16 |
| DHCP Server |
Multiple IP Subnet
Custom DHCP
Options Bind-IP-to-MAC |
| LAN IP Alias |
Support |
| Wired 802.1x Authentication |
Support |
| Port Mirroring |
Support |
| Local DNS Server |
Support |
| Conditional DNS Forwarding |
Support |
| Hotspot Web Portal (Profile No.) |
4 |
| Hotspot Authentication |
Click-Through
Social Login
SMS PIN
Voucher PIN
RADIUS External Portal Server |
Other Ports
|
| USB |
2 |
| USB Type |
2.0 |
| Networking |
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2 BGP |
| Policy-based Routing |
Protocol
IP Address
Port
Domain
Country |
| High Availability |
Support |
| DNS Security (DNSSEC) |
Support |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave |
| Local RADIUS server |
Support |
| SMB File Sharing (Requires external storage) |
Support |
VPN
|
| LAN-to-LAN |
Support |
| Teleworker-to-LAN |
Support |
| Protocols |
PPTP
L2TP
IPsec
L2TP over IPsec
SSL
GRE
IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
Wireguard
|
| Max. VPN Tunnels |
50 |
| Max. OpenVPN + SSL VPN Tunnels |
25 |
| IPsec VPN Throughput (AES 256 bits) (Mbps) |
290 |
| SSL VPN Throughput (Mbps) |
120 |
| User Authentication |
Local
RADIUS
LDAP
TACACS+
mOTP
|
| IKE Authentication |
Pre-Shared Key, X.509 |
| IPsec Authentication |
SHA-1, SHA-256 |
| Encryption |
MPPE
DES
3DES
AES
|
| VPN Trunk (Redundancy) |
Failover, Load Balancing |
| Single-Armed VPN |
Support |
| NAT-Traversal (NAT-T) |
Support |
| VPN Matcher |
Support |
Firewall & Content Filtering
|
| NAT |
Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
|
| ALG (Application Layer Gateway) |
FTP, H.323, RTSP, SIP |
| VPN Pass-Through |
IPsec, L2TP, PPTP |
| IP-based Firewall Policy |
Support |
| Content Filtering |
APP
URL Keyword
DNS Keyword
Web Features
Web Category*(*subscription required)
|
| DoS Attack Defense |
Support |
| Spoofing Defense |
Support |
Bandwidth Management
|
| IP-based Bandwidth Limit |
Support |
| IP-based Session Limit |
Support |
| QoS (Quality of Service) |
TOS
DSCP
802.1p
IP Address
Port
Application
|
| VoIP Prioritization |
Support |
| APP QoS |
Support |
WLAN
|
| 2.4G WLAN |
802.11ax 2x2 MIMO
|
| 5G WLAN |
802.11ax 2x2 MU-MIMO
|
| Antennas |
2
|
| Antenna Type |
External Dipole
|
| 2.4G Gain (dBi) |
2.5
|
| 5G Gain (dBi) |
3
|
| 2.4G Max. Link Rate (Mbps) |
574
|
| 5G Max. Link Rate (Mbps) |
2402
|
| Max. Number of SSIDs per band |
4
|
| Security Mode |
OWE
WEP
WPA
WPA2
Mixed(WPA+WPA2)
WPA3
|
| Authentication |
802.1X, Pre-Shared Key
|
| WiFi 6 |
Support |
| OFDMA |
Support |
| WPS |
PBC, PIN
|
| WDS |
Repeater (5GHz only)
|
| Access Control |
Access List
Client Isolation
Hide SSID
WLAN Scheduling
|
| AirTime Fairness |
Support |
| Band Steering |
Support |
| WMM |
Support |
| Mesh (5G Only) |
Root
|
Management
|
| Local Service |
HTTP HTTPS Telnet SSH v2 FTP TR-069 |
| Config Backup/Restore |
Support |
| Config File Compatibility |
Vigor2926 |
| Firmware Upgrade |
HTTP, TFTP, TR-069 |
| 2-Level Administration Privilege |
Support |
| Access Control |
Access List, Brute Force Protection |
| Notification Alert |
E-mail, SMS |
| Netflow |
IPFIX, v5, v9 |
| SNMP |
v1, v2c, v3 |
| Syslog |
Support |
| VPN Managment |
8 |
| AP Managment (APM) |
20 |
| Mesh (Number of manageable APs) |
7
|
| Switch Management (SWM) |
10 |
| VigorACS Management (Since f/w) |
V4.2.0.1 |
Physical
|
| Power Input |
DC 12V @ 2.5A
|
| Max. Power Consumption (watts) |
26.4
|
| Dimension (mm) |
241 x 165 x 44 |
| Operating Temperature |
0 to 45°C |
| Storage Temperature |
-25 to 70°C |
| Operating Humidity (non-condensing) |
10 to 90% |
|
รับประกัน
|
2 ปี
|
