Product Specification |

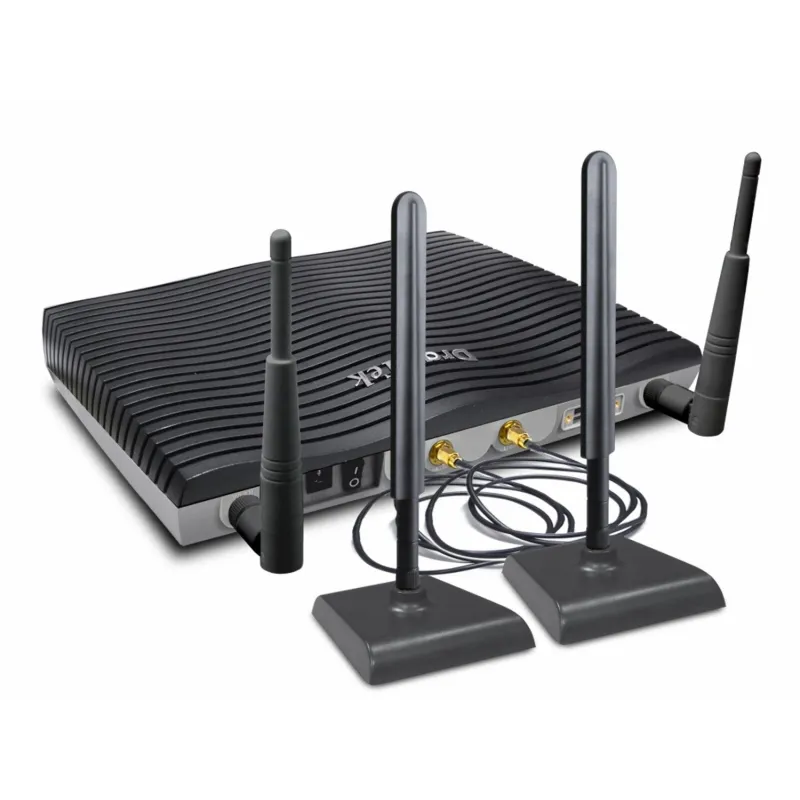

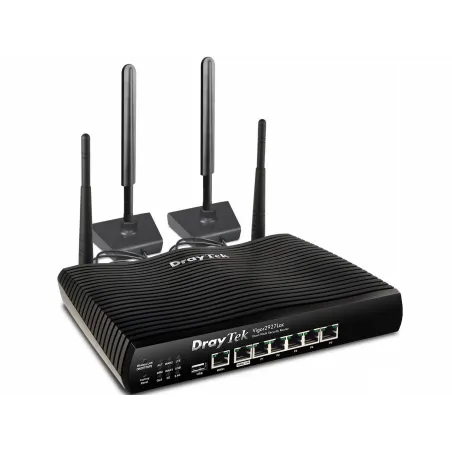

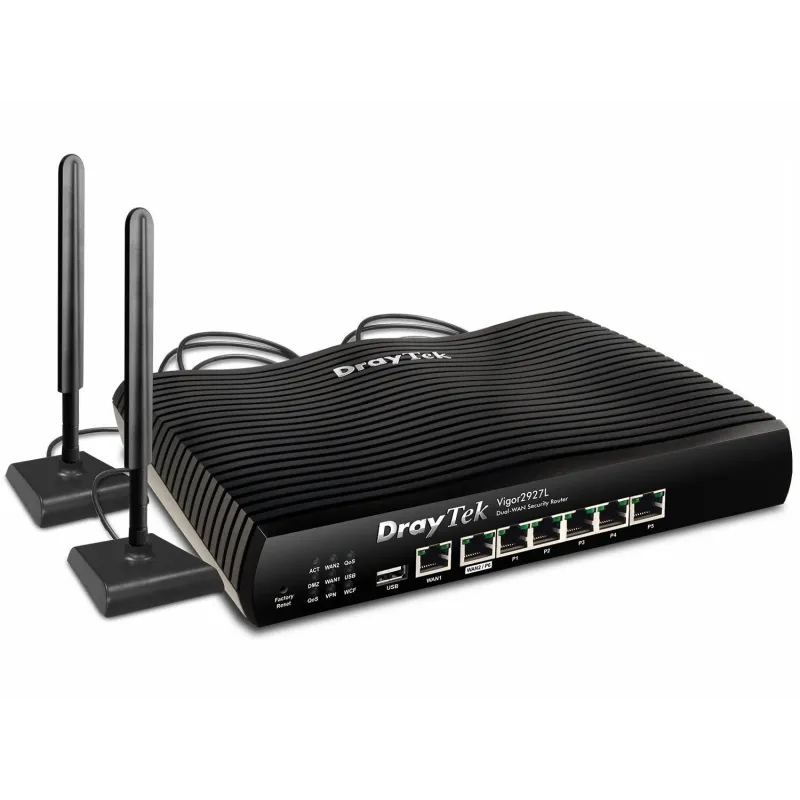

Overview | DrayTek Vigor2927L 4G/LTE Dual-WAN VPN Router, ใส่ Sim 2 Slot, 4 Port Lan Gigabit, สำหรับงาน Link Backup เพื่อไม่ให้หลุดการเชื่อมต่อ Internet รองรับความเร็ว Internet 800Mbps Loadbalance 2 Wan
Port Lan Multi-Gig ความเร็ว 2.5Gbps
300,000 NAT Session รองรับได้มากกว่า 100 Client VPN IPSec 50 Tunnels
VPN Throughput สูงสุด 290Mbps, VLAN, รองรับ Sim, 4G LTE USB Modem |

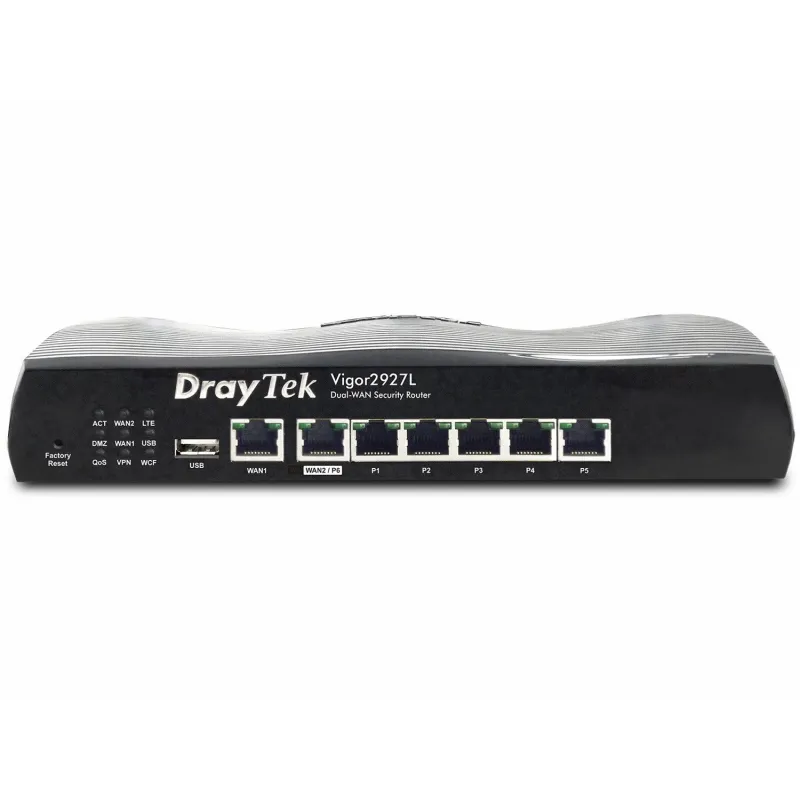

Interface |
WAN/LAN Switchable Port | 1x 2.5G Ethernet, RJ-45
1x GbE/SFP Combo
2x GbE, RJ-45
*up to 2 simultaneous WANs |
Fixed LAN Port | 2x GbE, RJ-45 |
USB Port | 1x USB 2.0 + 1x USB 3.0 for storage* (since f/w v3.9.6) |
Performance |
NAT Throughput w/ Hardware Acceleration | 2.2 Gbps |
IPsec VPN Performance | 800 Mbps (AES 256 bits) |
SSL VPN Performance | 500 Mbps |
NAT Sessions | 300,000*(since f/w v3.9.6, 150,000 with f/w v3.9.3.1 or before) |
Max. Concurrent VPN Tunnels | 200 |
Max. Concurrent OpenVPN + SSL VPN | 50 |
Internet Connection |
IPv4 | PPPoE, DHCP, Static IP |
IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
802.1p/q Multi-VLAN Tagging | Support |
Multi-VLAN/PVC | Support |
Load Balancing | IP-based, Session-based |
WAN Active on Demand | Link Failure, Traffic Threshold |
Connection Detection | ARP, Ping, Strict ARP |
Dynamic DNS | Support |
DrayDDNS | Support |
LAN Management |
VLAN | 802.1q Tag-based, Port-based |
Max. Number of VLAN | 20 |
Number of LAN Subnet | 20 |
DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
LAN IP Alias | Support |
Wired 802.1x Authentication | Support |
Port Mirroring | Support |
Local DNS Server | Support |
Conditional DNS Forwarding | Support |
Hotspot Web Portal | Support |
Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
Networking |
Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, OSPF, BGP |
Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
High Availability | Support |
DNS Security (DNSSEC) | Support |
Multicast | IGMP Proxy*, Bonjour(since f/w v3.9.6) |
Local RADIUS server | Support |
VPN |
LAN-to-LAN | Support |
Teleworker-to-LAN | Support |
Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
IKE Authentication | Pre-Shared Key, X.509 |
IPsec Authentication | SHA-1, SHA-256, MD5 |
Encryption | MPPE, DES, 3DES, AES |
VPN Trunk (Redundancy) | Load Balancing, Failover |
Single-Armed VPN | Support |
NAT-Traversal (NAT-T) | Support |
DrayTek VPN Matcher | Support |
Firewall & Content Filtering |
NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
VPN Pass-Through | PPTP, L2TP, IPsec |
IP-based Firewall Policy | Support |
Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
DoS Attack Defense | Support |
Spoofing Defense | Support |
Bandwidth Management |
IP-based Bandwidth Limit | Support |
IP-based Session Limit | Support |
QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
VoIP Prioritization | Support |
Management |
Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
Config File Export & Import | Support |
Firmware Upgrade | TFTP, HTTP, TR-069 |
2-Level Administration Privilege | Support |
Access Control | Access List, Brute Force Protection |
Notification Alert | SMS, E-mail |
SNMP | v1, v2c, v3 |
Syslog | Support |
Central AP Management | 50 VigorAP |
Central Switch Management | 30 VigorSwitch |
Physical |
Rack Mountable | Mouting Kit Included |
Power Supply | AC 100-240V @ 1A |
Max. Power Consumption | 15 watts |
Dimension | 273 mm x 171 mm x 45 mm |
Weight | 1.3 kg |
Operating Temperature | 0 to 45°C |
Storage Temperature | -25 to 70°C |
Operating Humidity (non-condensing) | 10 to 90% |
รับประกัน | 2 ปี |
