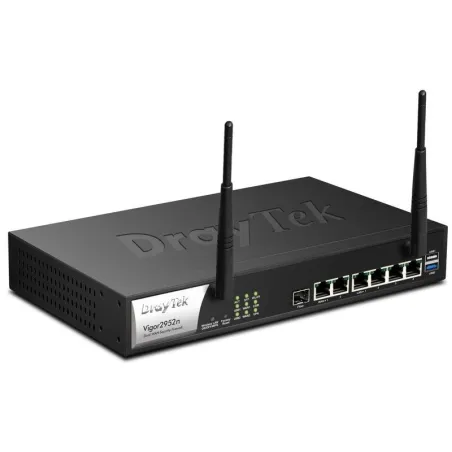

DrayTek Vigor2952n Dual WAN Load-balance VPN Router, Internet 2 คู่สาย Wireless N, VPN 100 Tunnels, 3G USB

DrayTek Vigor2952n Product Specification

Overview

DrayTek Vigor2952n Gigabit Dual WAN Load-Balance VPN Router รวม Internet 2 คู่สาย, Wireless N 2.4GHz 300Mbps, VPN 50 Tunnels, 50,000 NAT Sessions, QOS, VLAN, รองรับ 3G Modem

Connectivity

Ethernet WAN
IPv4 - DHCP Client, Static IP, PPPoE, PPTP,
L2TP, 802.1q Multi-VLAN Tagging
IPv6 - Tunnel Mode: TSPC, AICCU, 6rd,
Static 6in4
Dual Stack: PPP, DHCPv6 Client,
Static IPv6

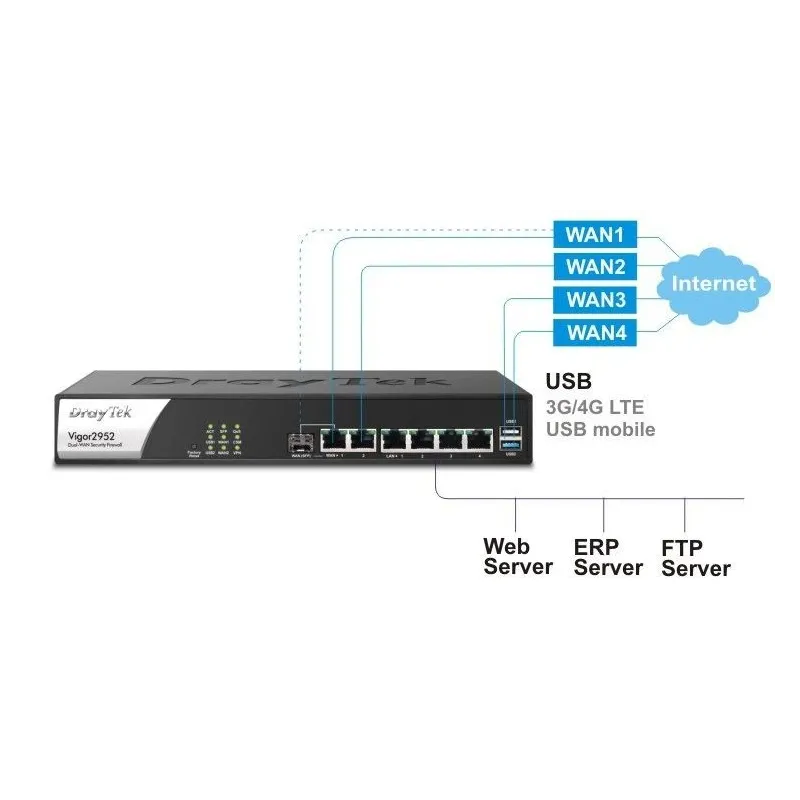

WAN Connection Fail-over
WAN Budgets
Load Balance/Route Policy
Ethernet LAN
IPv4/IPv6 DHCP Server
Static Routing/RIP
Multiple Subnet
Port/Tag-based VLAN
USB
3.5G/4G LTE(PPP, DHCP) as WAN3/
WAN4
Printer Server/File Sharing

WLAN (n model)

802.11n with 2.4GHz
Multiple SSID
Encryption (64/128-bit WEP,WPA/
WPA2,802.1x)
Hidden SSID
Wireless Rate Control by SSID
Wireless VLAN
Wireless LAN Isolation
MAC Address Access Control
Access Point Discovery
Wireless Client List
WDS (Wireless Distribution System)
WMM (Wi-Fi Multimedia)

Management

System Maintenance
HTTP/HTTPS with 2-level Management
(Admin/User)
Logging via Syslog
SNMP Management MIB-II (v2/v3)
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Web-based Diagnostic Functionality
Firmware Upgrade via TFTP/FTP/HTTP/
TR-069
CWMP Support (TR-069/TR-104)
LAN Port Monitoring
Network Management
Bandwidth Management by session/
bandwidth
User Management by Time/Data Quota
LAND DNS and DNS Proxy/Cache
Dynamic DNS
IGMP Snooping/Proxy v2 and v3
QoS (DSCP/Class-based/4-level priority)
Guarantee Bandwidth for VoIP
Support Smart Monitor (Up to 100 nodes)
Central AP Management

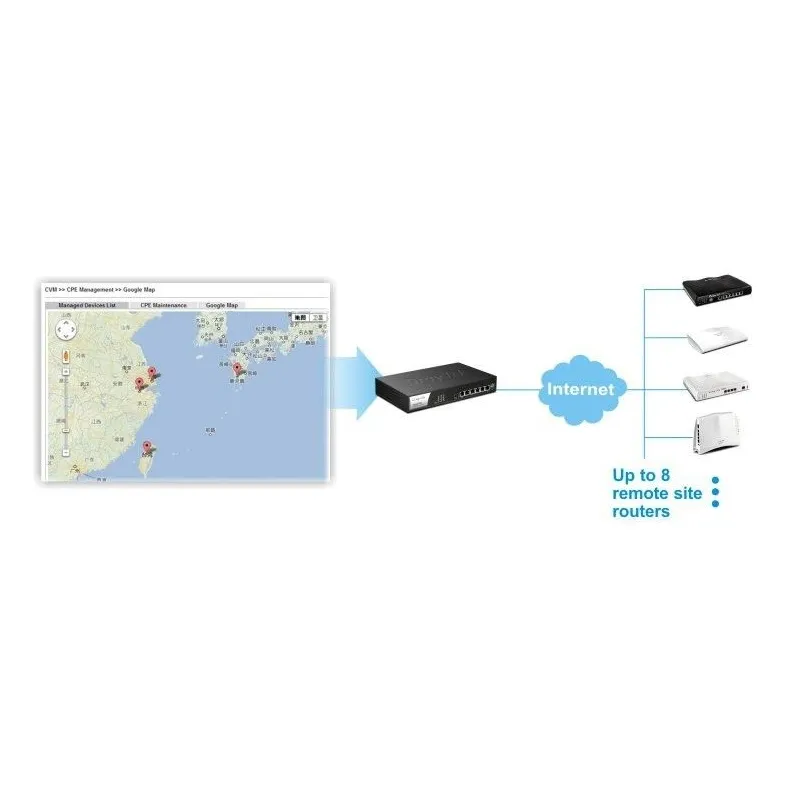

Central VPN Management
Switch Management

Security

Multi-NAT, DMZ Host, Port-redirection
and Open Port
Object-based Firewall, Object IPv6,
Group IPv6
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS/DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control

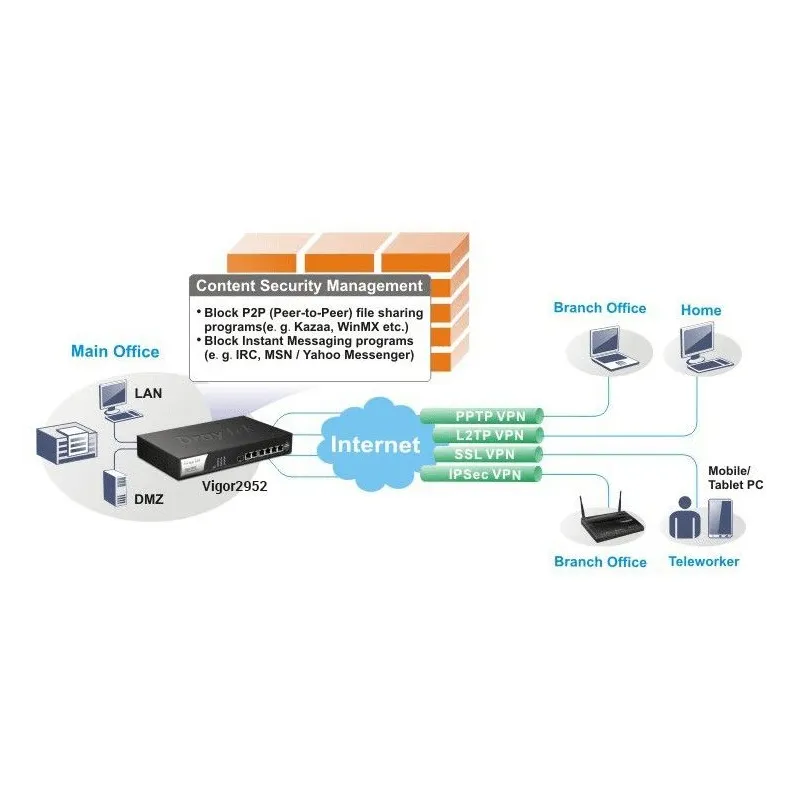

Content Security ( IM/P2P, URL, Keywords,
Cookies,...)

VPN

Up to 100 VPN Tunnels
Protocol : PPTP, IPsec, L2TP, L2TP over IPsec
Encryption : MPPE and Hardware-based
AES/DES/3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared Key and
Digital Signature (X.509)
LAN-to-LAN, Teleworker-to-LAN
DHCP over IPsec
IPsec NAT-traversal (NAT-T)
Dead Peer Detection (DPD)
VPN Pass-through
VPN Wizard
mOTP
Supports 50 SSL VPN Tunnels

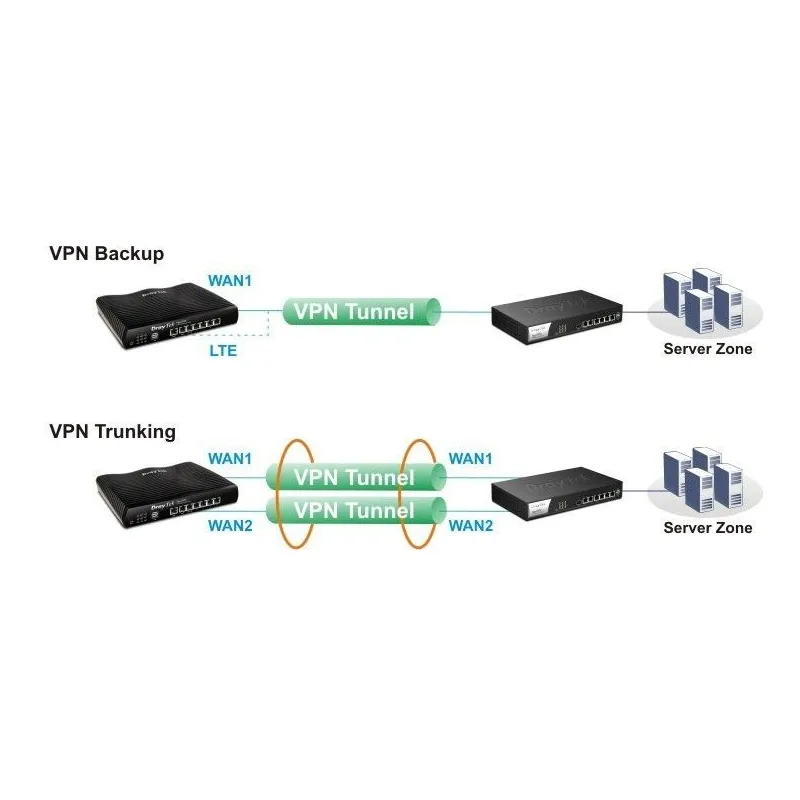

VPN Trunk: VPN Backup and Load Balance

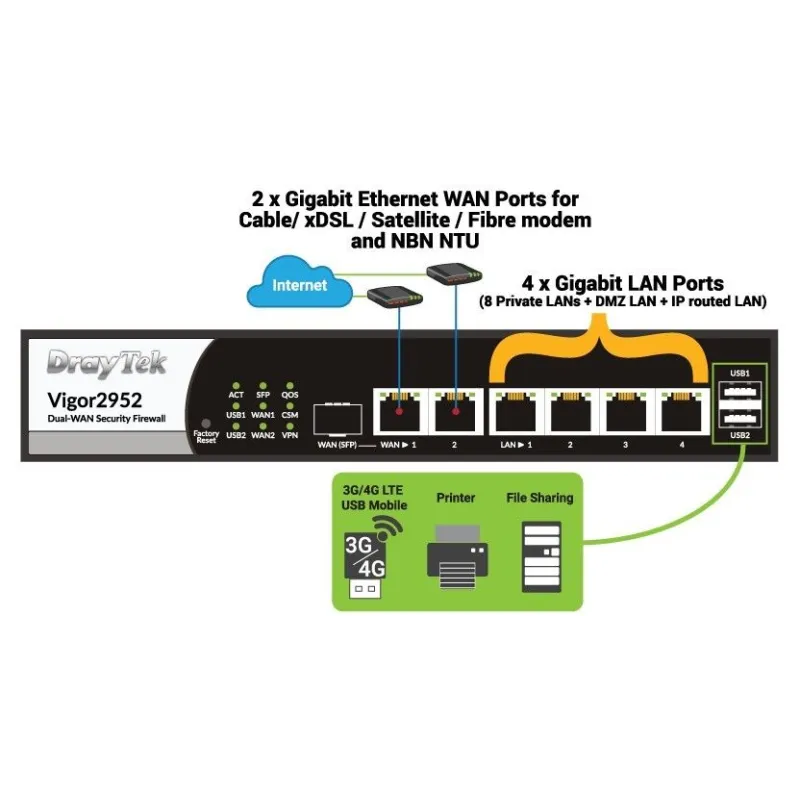

Hardware Interface

1 x Combo WAN, 10/100/1000Base-Tx
RJ-45 or SFP (WAN1)(Fiber Port is High Priority)
1 x 10/100/1000Base-Tx, RJ-45 (WAN2)
4 x 10/100/1000Base-Tx LAN, RJ-45
(P1 is Configurable as DMZ Port)
2 x USB Host (USB1 is 2.0 and USB2 is 3.0)
2 x Detachable Antennas (n Model)
1 x Wireless On/ Off/ WPS Button (n Model)
1 x Factory Reset Button
x Combo WAN, 10/100/1000Base-Tx

รับประกัน

สินค้ารับประกัน 1 ปี
