DrayTek Vigor2960 Product Specification
|
|
Overview
|
DrayTek Vigor2960 Gigabit Dual WAN Load-Balance VPN Router รวม Internet 2 คู่สาย VPN 200 Tunnels, 80,000 NAT Sessions, QOS, VLAN, รองรับ 4G LTE Modem
|
Interface
|
|
WAN Port
|
2x 10/100/1000Base-Tx, RJ-45
|
|
LAN Port
|
4x 10/100/1000Base-Tx, RJ-45
|
|
USB Port
|
2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
|
Performance
|
|
NAT Throughput
|
900 Mbps
|
|
IPsec VPN Performance
|
600 Mbps (AES 256 bits)
|
|
SSL VPN Performance
|
300 Mbps (LAN-to-LAN)
|
|
NAT Sessions
|
80,000
|
|
Max. Concurrent VPN Tunnels
|
200
|
|
Max. Concurrent OpenVPN + SSL VPN
|
50
|
Internet Connection
|
|
IPv4
|
PPPoE, DHCP, Static IP, PPTP
|
|
IPv6
|
Link Local, Static, PPP, DHCP IA NA, DHCP IA PD
|
|
Multi-VLAN
|
|
|
3G/4G/LTE WAN with USB modem
|
|
|
Outbound Load Balancing
|
IP-based, Session-based
|
|
Inbound Load Balancing
|
|
|
Failover
|
|
|
Connection Detection
|
ARP, Ping, HTTP
|
|
Dynamic DNS
|
|
|
DrayDDNS
|
|
LAN Management
|
|
802.1q VLAN
|
|
|
Max. Number of VLAN
|
20
|
|
DHCP Server
|
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
|
|
PPPoE Server
|
|
|
Port Mirroring
|
|
|
Local DNS Server
|
|
|
Conditional DNS Forwarding
|
|
|
Web Portal
|
|
|
Web Portal Authentication
|
Local User Profile, Guest Profile, RADIUS, LDAP, SMS PIN
|
Networking
|
|
Static Routing
|
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing
|
|
Dynamic Routing
|
RIPv2, OSPFv2, BGP
|
|
Policy-based Routing
|
Protocol, IP Address, Port, Domain, Country
|
|
High Availability
|
Active-Standby, Hot-Standby
|
|
DNS Security (DNSSEC)
|
|
|
GVRP
|
|
|
Proxy
|
IGMP, LAN ARP, WAN ARP
|
|
SMB File Sharing
|
(Requires external storage)
|
VPN
|
|
LAN-to-LAN
|
|
|

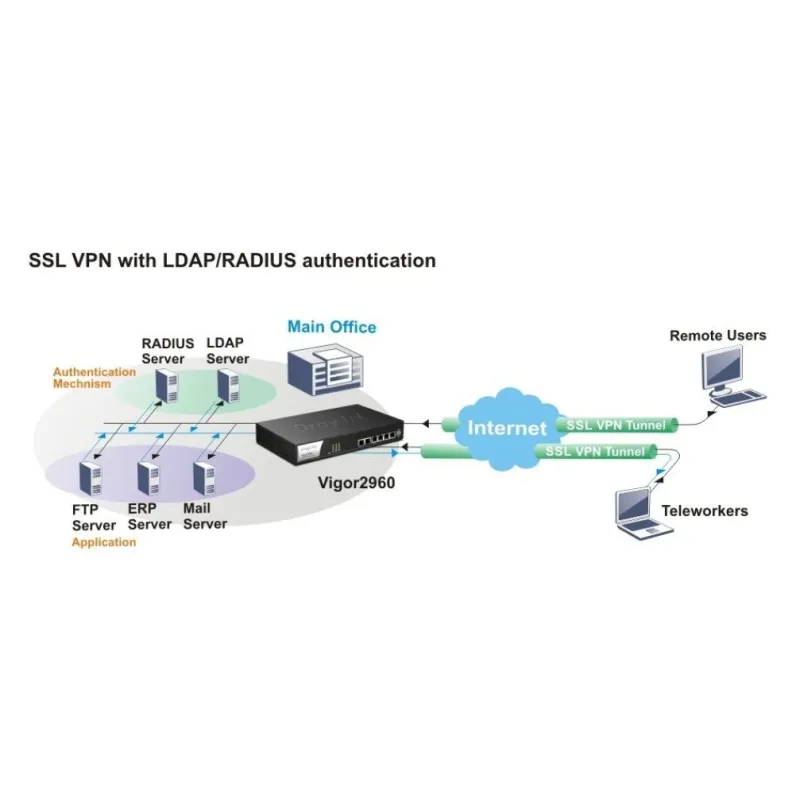

Remote Dial-In (Teleworker-to-LAN)
|
|
|
Protocols
|
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN
|
|
User Authentication
|
Local, RADIUS, LDAP, mOTP
|
|
IKE Authentication
|
Pre-Shared Key, X.509
|
|
IPsec Authentication
|
SHA-1, SHA-2/256, MD5
|
|

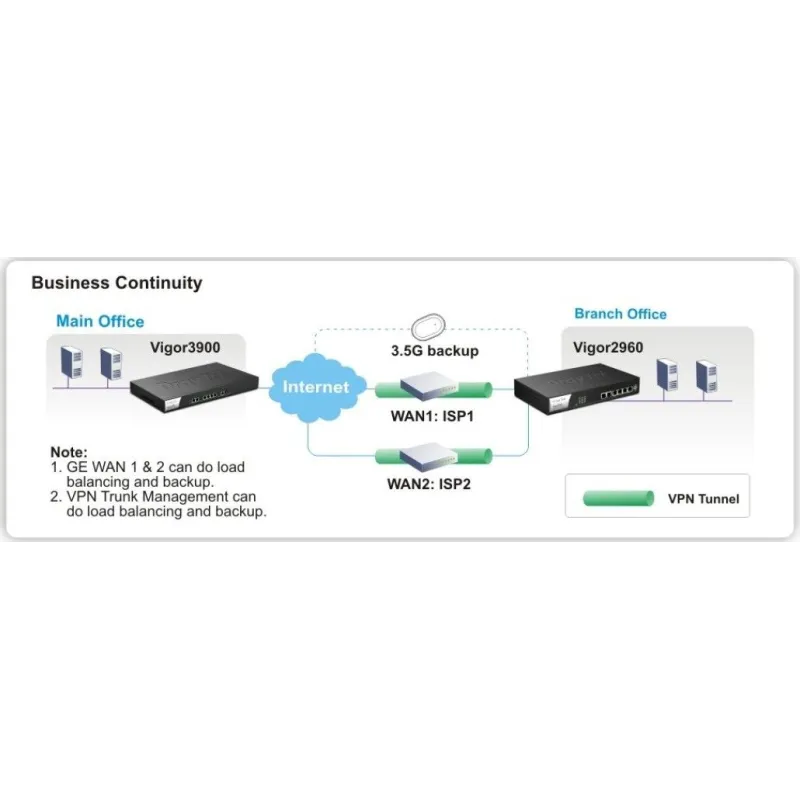

VPN Redundancy
|
Load Balancing, Failover
|
|
NAT-Traversal (NAT-T)
|
|

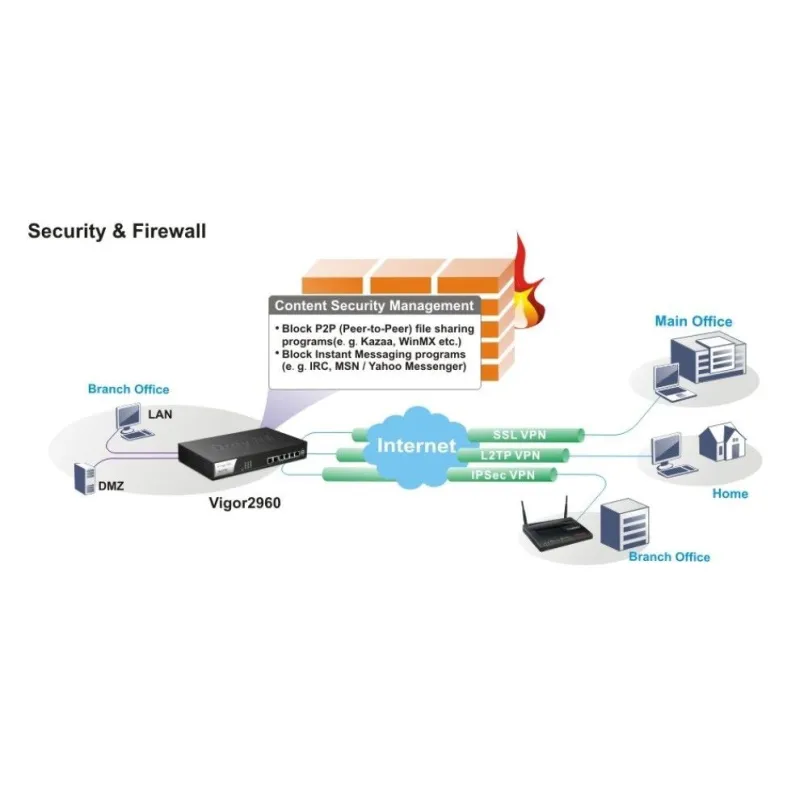

Firewall & Content Filtering
|
|
NAT
|
Port Redirection, DMZ Host, UPnP
|
|
ALG (Application Layer Gateway)
|
SIP, FTP, H.323
|
|
VPN Pass-Through
|
PPTP, L2TP, IPsec
|
|
IP-based Firewall Policy
|
|
|

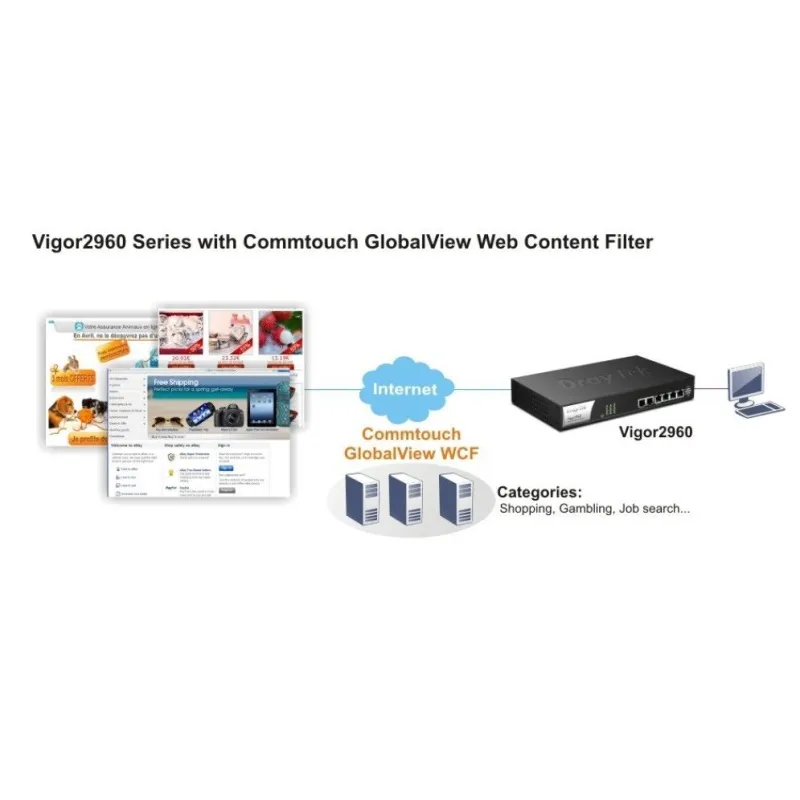

Content Filtering
|
Application, URL Keyword, File Extension, Web Category*, QQ Filter (*: subscription required)
|
|
DoS Attack Defense
|
|
Bandwidth Management
|
|
IP-based Bandwidth Limit
|
|
|
IP-based Session Limit
|
|
|
QoS (Quality of Service)
|
TOS, DSCP, 802.1p, IP Address, Service Type
|
|
Hardware QoS
|
|
|
VoIP Prioritization
|
|
Management
|
|
Local Service
|
HTTP, HTTPS, Telnet, SSH, FTP, SAMBA, TR-069
|
|
Config File Export & Import
|
|
|
Firmware Upgrade
|
TFTP, HTTP, TR-069
|
|
2-Level Administration Privilege
|
|
|
Access Control
|
Access List, Brute Force Protection (Fail to Ban), Access Barrier
|
|
Syslog
|
|
|
Notification Alert
|
SMS, E-mail
|
|
SNMP
|
v2, v2c, v3
|
|
Managed by VigorACS
|
|
|
Central AP Management
|
50 VigorAP
|
|
Central Switch Management
|
10 VigorSwitch
|
|
Central VPN Management
|
12 VPN
|
Physical
|
|
Rack Mountable
|
Mouting Kit Included
|
|
Max. Power Consumption
|
19 watts
|
|
Dimension
|
273 mm x 171 mm x 45 mm
|
|
Weight
|
1.35 kg
|
|
Operating Temperature
|
0 to 45°C
|
|
Storage Temperature
|
-10 to 55°C
|
|
Operating Humidity (non-condensing)
|
10 to 90%
|
|
รับประกัน
|
2 ปี
|
