DrayTek Vigor2962 Datasheet
DrayTek Vigor2962 User-Guide
DrayTek Vigor2962 Quick Guide
DrayTek Vigor3910 Product Specification | |
Overview | DrayTek Vigor2962 Dual-WAN Load Balance VPN Router รองรับความเร็ว Internet สูงถึง 2.2Gbps Loadbalance 2 Wan 300,000 NAT Session รองรับได้มากกว่า 100 Client VPN IPSec 200 Tunnels |

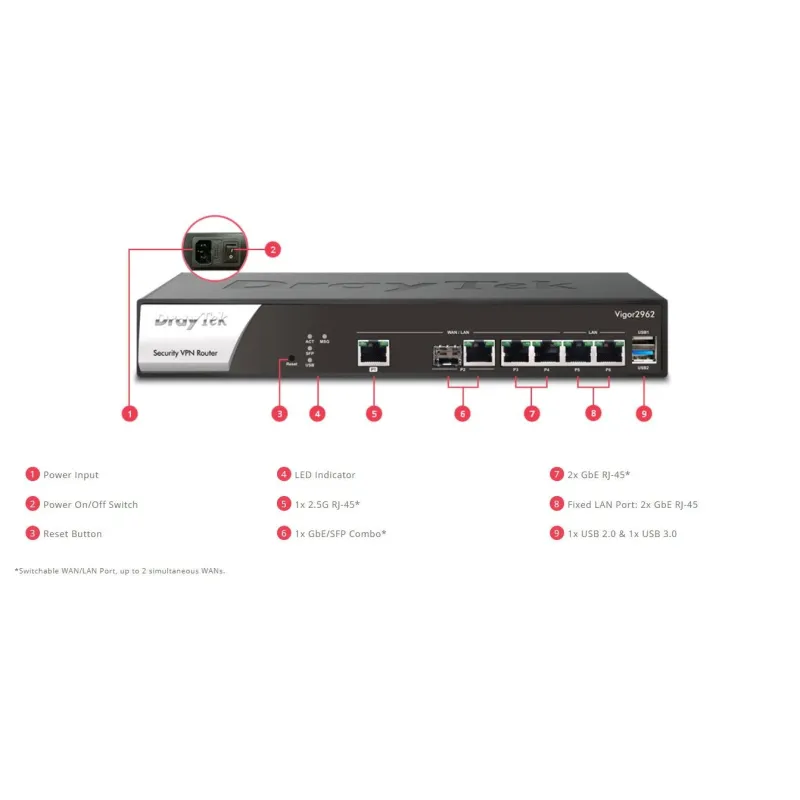

Interface | |
WAN/LAN Switchable Port | 1x 2.5G Ethernet, RJ-45 *up to 2 simultaneous WANs |
Fixed LAN Port | 2x GbE, RJ-45 |
USB Port | 1x USB 2.0 + 1x USB 3.0 for storage* (since f/w v3.9.6) |
Performance | |
NAT Throughput w/ Hardware Acceleration | 2.2 Gbps |
IPsec VPN Performance | 800 Mbps (AES 256 bits) |
SSL VPN Performance | 500 Mbps |
NAT Sessions | 300,000*(since f/w v3.9.6, 150,000 with f/w v3.9.3.1 or before) |
Max. Concurrent VPN Tunnels | 200 |
Max. Concurrent OpenVPN + SSL VPN | 50 |
Internet Connection | |
IPv4 | PPPoE, DHCP, Static IP |
IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
802.1p/q Multi-VLAN Tagging | Support |
Multi-VLAN/PVC | Support |
Load Balancing | IP-based, Session-based |
WAN Active on Demand | Link Failure, Traffic Threshold |
Connection Detection | ARP, Ping, Strict ARP |
Dynamic DNS | Support |
DrayDDNS | Support |
LAN Management | |
VLAN | 802.1q Tag-based, Port-based |
Max. Number of VLAN | 20 |
Number of LAN Subnet | 20 |
DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
LAN IP Alias | Support |
Wired 802.1x Authentication | Support |
Port Mirroring | Support |
Local DNS Server | Support |
Conditional DNS Forwarding | Support |
Hotspot Web Portal | Support |
Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
Networking | |
Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, OSPF, BGP |
Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
High Availability | Support |
DNS Security (DNSSEC) | Support |
Multicast | IGMP Proxy*, Bonjour(since f/w v3.9.6) |
Local RADIUS server | Support |
VPN | |
LAN-to-LAN | Support |
Teleworker-to-LAN | Support |
Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
IKE Authentication | Pre-Shared Key, X.509 |
IPsec Authentication | SHA-1, SHA-256, MD5 |
Encryption | MPPE, DES, 3DES, AES |
VPN Trunk (Redundancy) | Load Balancing, Failover |
Single-Armed VPN | Support |
NAT-Traversal (NAT-T) | Support |
DrayTek VPN Matcher | Support |
Firewall & Content Filtering | |
NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
VPN Pass-Through | PPTP, L2TP, IPsec |
IP-based Firewall Policy | Support |
Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
DoS Attack Defense | Support |
Spoofing Defense | Support |
Bandwidth Management | |
IP-based Bandwidth Limit | Support |
IP-based Session Limit | Support |
QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
VoIP Prioritization | Support |
Management | |
Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
Config File Export & Import | Support |
Firmware Upgrade | TFTP, HTTP, TR-069 |
2-Level Administration Privilege | Support |
Access Control | Access List, Brute Force Protection |
Notification Alert | SMS, E-mail |
SNMP | v1, v2c, v3 |
Syslog | Support |
Central AP Management | 50 VigorAP |
Central Switch Management | 30 VigorSwitch |
Physical | |
Rack Mountable | Mouting Kit Included |
Power Supply | AC 100-240V @ 1A |
Max. Power Consumption | 15 watts |
Dimension | 273 mm x 171 mm x 45 mm |
Weight | 1.3 kg |
Operating Temperature | 0 to 45°C |
Storage Temperature | -25 to 70°C |
Operating Humidity (non-condensing) | 10 to 90% |
รับประกัน | 2 ปี |
Vigor2962 is a high performance and dynamic firewall router with configurable WAN/LAN ports. With the selection of 2.5GbE port, 1GbE Fiber port, and 2 of 1GbE ports, users can set 2 of the ports as WAN for load balancing/failover purpose and enjoy overall 2.2Gbps NAT throughput.
รับติดตั้ง , Setup ระบบเชื่อมต่อเครือข่ายระหว่างสาขาด้วย VPN Site To Stite
ระบบจะทำการเชื่อมวง Network แต่ละสาขาเข้าด้วยกัน สามารถ Share File, Printer, Database, VOIP
Share File / Printer ระหว่างสาขา
โทรศัพท์ระหว่างสาขาหากันฟรีด้วย VOIP ผ่าน VPN
ใช้ Smart-Phone เชื่อมเครือข่ายกับสาขาด้วย VPN Client To Site ถ้าใช้ร่วมกับ App Zoiper โทรผ่าน VOIP ทำให้โทรหาสาขาได้ฟรี
เชื่อมต่อฐานข้อมูลที่เป็น RDBMS เช่น MS SQL, Oracle, MySQL ได้ง่าย โดยการสร้าง Connection String ชี้ไปที่ Databse Server ได้เลย
ความเร็วในการเชื่อมต่อ VPN ได้เทียบเท่าค่า Upload ตาม Package ที่สมัคร
