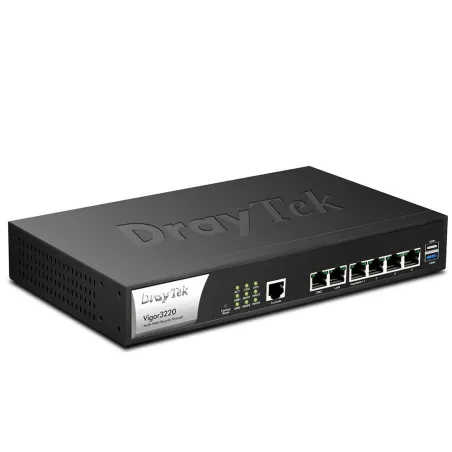

DrayTek Vigor3220 Product Specification |
Overview | DrayTek Vigor3220 Quad-WAN broadband VPN firewall router Gigabit , Internet 4 คู่สาย, VPN 100 Tunnels, 50 SSL VPN tunnels, รองรับ 100,000 NAT Sessions, Internet 900Mbps, QOS, VLAN, รองรับ 4G LTE USB Modem |

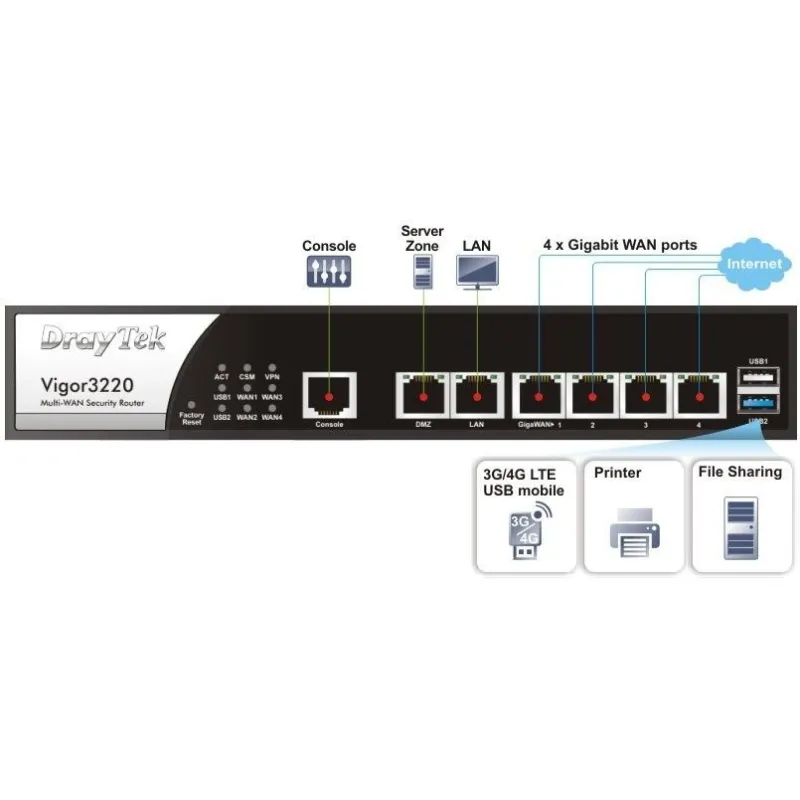

Interface |
WAN Port | 4 x Gigabit Ethernet RJ-45 |
LAN Port | 1 x Gigabit Ethernet RJ-45 |
DMZ Port | 1 x Gigabit Ethernet RJ-45 |
USB Port | 1 x USB 3.0 + 1x USB 2.0 |
Console Port | 1 x RJ-45 |
2.4G WLAN | 802.11n 2x2 MIMO 300Mbps (n model) |
Performance |
NAT Throughput | 500 Mbps |
NAT Throughput w/ Hardware Acceleration | 900 Mbps |
IPsec VPN Performance | 200 Mbps (AES 256 bits) |
SSL VPN Performance | 90 Mbps |
Max. Number of NAT Sessions | 100,000 |
Max. Concurrent VPN Tunnels | 200 (f/w 3.8.8 or later) |
Max. Concurrent OpenVPN + SSL VPN | 50 |
Internet Connection |
IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
Multi-VLAN | |
3G/4G/LTE WAN with USB modem | |

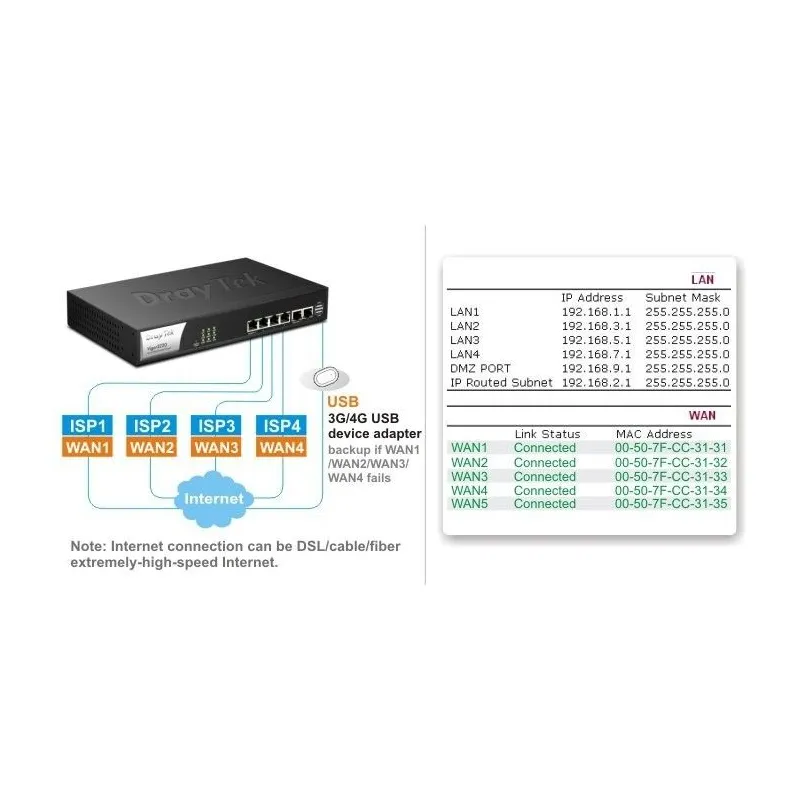

Load Balancing | IP-based, Session-based |
WAN Active on Demand | Link Failure, Traffic Threshold |
Connection Detection | ARP, Ping |
WAN Data Budget | |
Dynamic DNS | |
DrayDDNS | |
LAN Management |

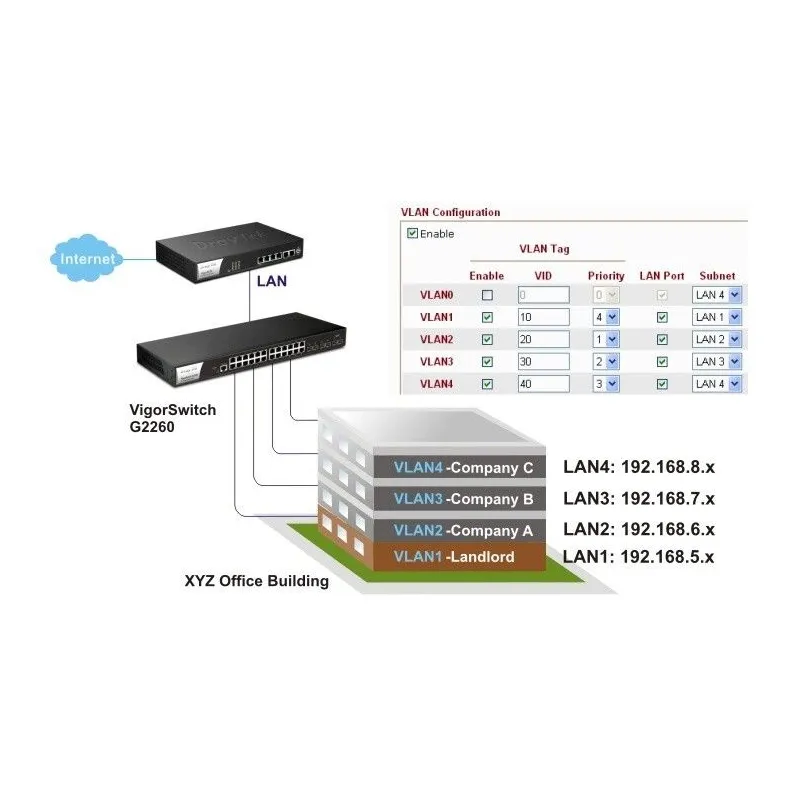

VLAN | 802.1q Tag-based, Port-based |
Max. Number of VLAN | 8 |
DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
LAN IP Alias | |
PPPoE Server | |
Port Mirroring | |
Local DNS Server | |
Conditional DNS Forwarding | |
Hotspot Web Portal | |
Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
Networking |
Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
High Availability | |
DNS Security (DNSSEC) | |
Multicast | IGMP Proxy, IGMP Snooping, Bonjour |
Local RADIUS server | |
SMB File Sharing | (Requires external storage) |
VPN |

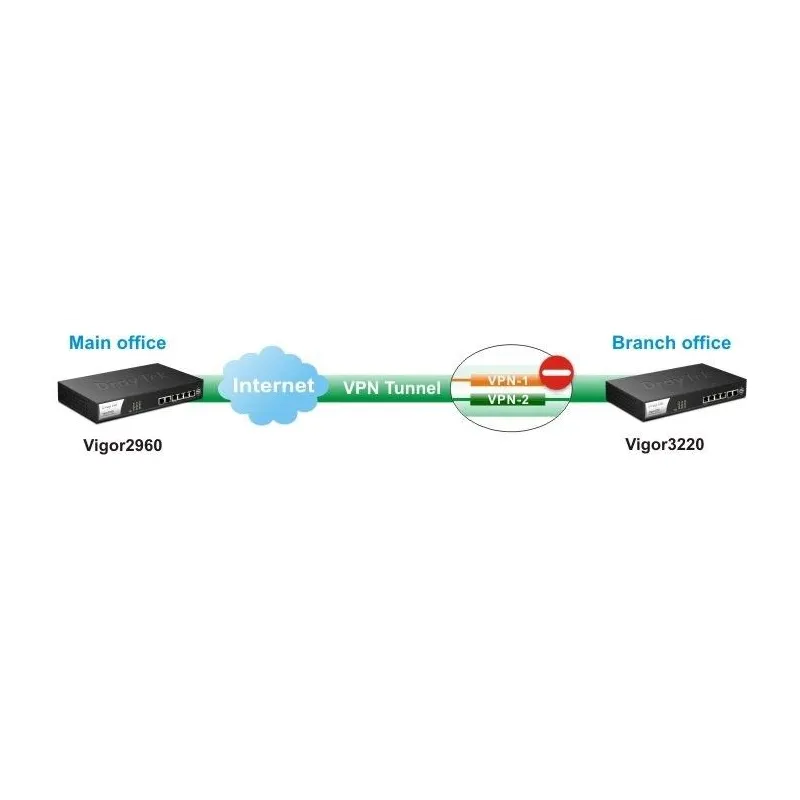

LAN-to-LAN | |

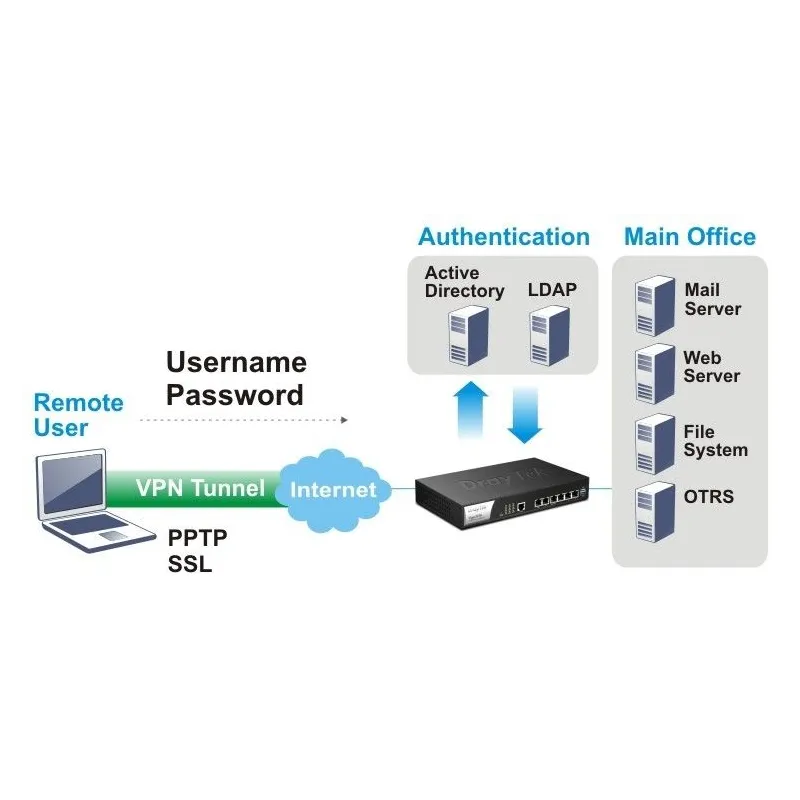

Teleworker-to-LAN | |
Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN |
User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
IKE Authentication | Pre-Shared Key, X.509 |
IPsec Authentication | SHA-1, SHA-256, MD5 |

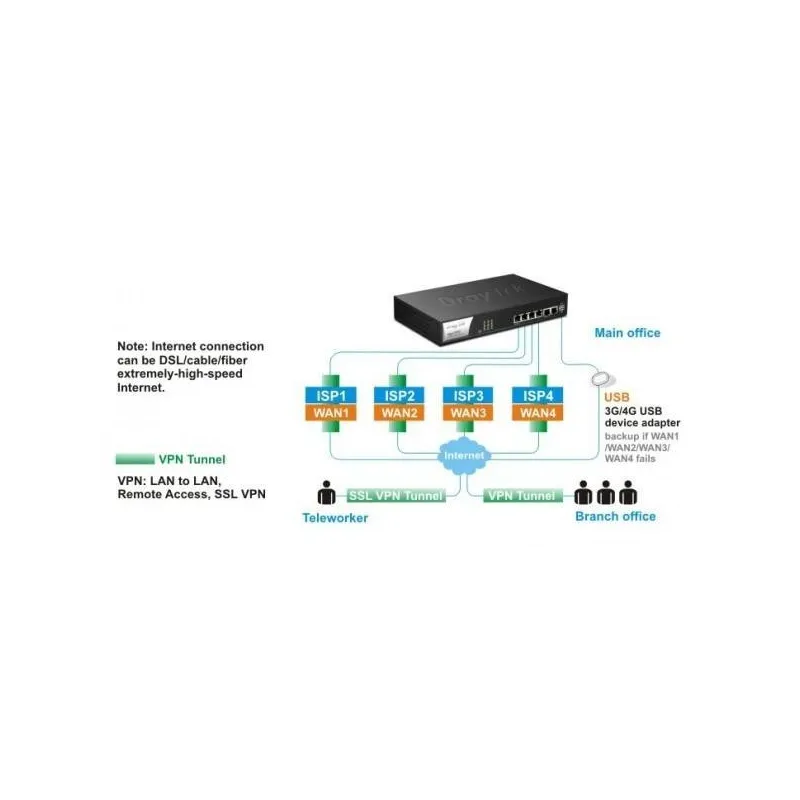

VPN Redundancy | Load Balancing, Failover |
Single-Armed VPN | |
NAT-Traversal (NAT-T) | |
DrayTek VPN Matcher | |
Firewall & Content Filtering |
NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
VPN Pass-Through | PPTP, L2TP, IPsec |
IP-based Firewall Policy | |
Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
DoS Attack Defense | |
Spoofing Defense | |
Bandwidth Management |
IP-based Bandwidth Limit | |
IP-based Session Limit | |
QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
VoIP Prioritization | |
Wireless LAN (n model) |
Number of SSID | 4 per radio band |
Security | WEP, WPA, WPA2, WPS |
Authentication | Pre-Shared Key, 802.1X |
AirTime Fairness | |
WMM | |
WDS | Bridge, Repeater |
Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
Management |
Local Service | HTTP, HTTPS, Telnet, SSH, TR-069, FTP, SNMP |
Config File Export & Import | |
Config File Compatibility | Vigor3200 Series |
Firmware Upgrade | TFTP, HTTP, TR-069 |
2-Level Administration Privilege | |
Access Control | Access List, Brute Force Protection |
Syslog | |
Notification Alert | SMS, E-mail |
SNMP | v1, v2c, v3 |
Managed by VigorACS | |
Central VPN Management | 8 VPN |
Central AP Management | 30 VigorAP |
Central Switch Management | 10 VigorSwitch |
Physical |
Rack Mountable | Mouting Kit Included |
Power Supply | AC100-240V @ 1.0A |
Max. Power Consumption | 17 watts (n model) |
Dimension | 273mm x 171mm x 45mm |
Weight | 1.38 kg (n model) |
Operating Temperature | 0 to 45°C |
Storage Temperature | -20 to 70°C |
Operating Humidity | 10 to 90% (non-condensing) |
รับประกัน | 2 ปี |
