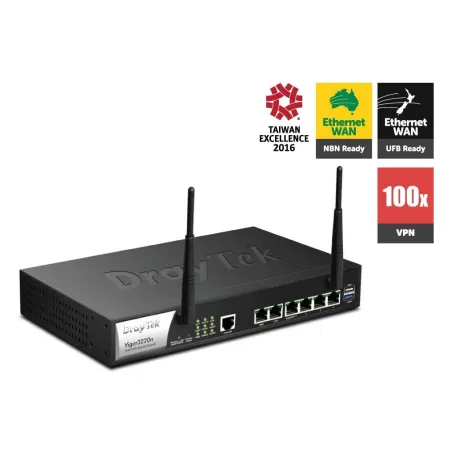

DrayTek Vigor3220n Product Specification |
Overview | DrayTek Vigor3220n Gigabit 4 WAN Load-Balance VPN Router รวม Internet 4 คู่สาย, Wireless N 2.4GHz 300Mbps, VPN 100 Tunnels, 50 SSL VPN tunnels, รองรับ 100,000 NAT Sessions, QOS, VLAN, รองรับ 3G Modem |
Connectivity | Ethernet WAN
IPv4 - DHCP Client, Static IP, PPPoE, PPTP,
L2TP, 802.1q Multi-VLAN Tagging
IPv6 - Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4
Dual Stack: PPP, DHCPv6 Client, Static IPv6

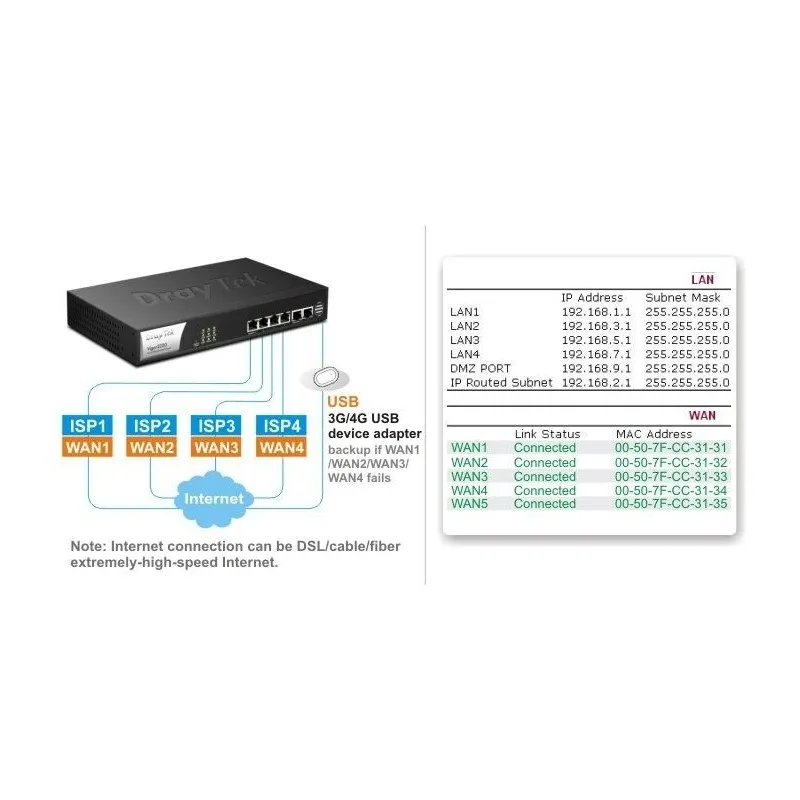

WAN Connection Fail-over
WAN Budgets
Load Balance/Route Policy
Ethernet LAN
IPv4/IPv6 DHCP Server
Static Routing/RIP
Multiple Subnet

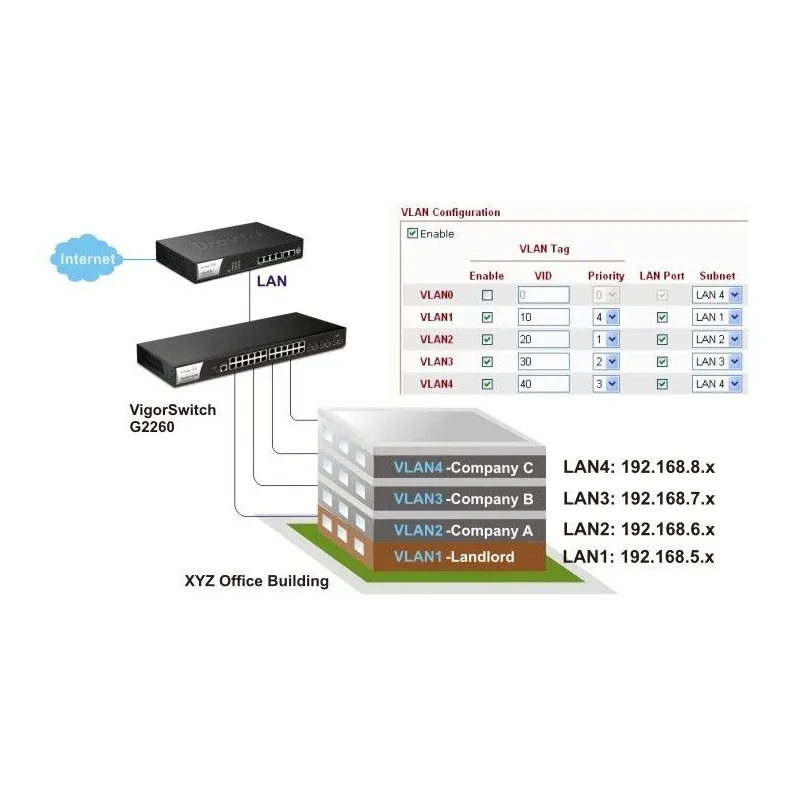

Port/Tag-based VLAN
USB
3.5G/4G LTE(PPP, DHCP) as WAN5/WAN6
Printer Server/File Sharing
|
Management
| System Maintenance
HTTP/HTTPS with 2-level Management (Admin/User)
Logging via Syslog
SNMP Management MIB-II (v2/v3)
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Web-based Diagnostic Functionality
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
CWMP Support (TR-069/TR-104)
LAN Port Monitoring
Network Management
Bandwidth Management by session/bandwidth
User Management by Time/Data Quota
LAND DNS and DNS Proxy/Cache
Dynamic DNS
IGMP Snooping/Proxy v2 and v3
QoS (DSCP/Class-based/4-level priority)
Guarantee Bandwidth for VoIP
Support Smart Monitor (Up to 200 nodes)
Central AP Management
Central VPN Management
Switch Management
|
WLAN (Vigor3220n model)
| 802.11n with 2.4GHz
Multiple SSID
Encryption (64/128-bit WEP,WPA/WPA2,802.1x)
Hidden SSID
Wireless Rate Control by SSID
Wireless VLAN
Wireless LAN Isolation
MAC Address Access Control
Access Point Discovery
Wireless Client List
WDS (Wireless Distribution System)
WMM (Wi-Fi Multimedia)
|
Security
| Multi-NAT, DMZ Host, Port-redirection and Open Port
Object-based Firewall, Object IPv6, Group IPv6
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS/DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
Content Security ( IM/P2P, URL, Keywords, Cookies,...)
|

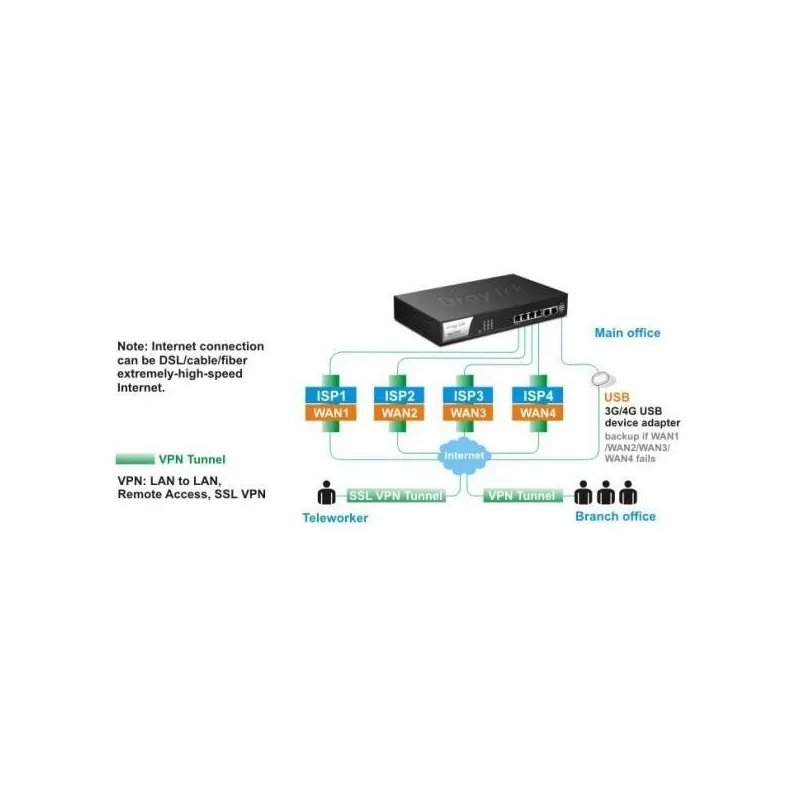

VPN
| Up to 100 VPN Tunnels
Protocol : PPTP, IPsec, L2TP, L2TP over IPsec
Encryption : MPPE and Hardware-based
AES/DES/3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared Key and
Digital Signature (X.509)
LAN-to-LAN, Teleworker-to-LAN
DHCP over IPsec
IPsec NAT-traversal (NAT-T)
Dead Peer Detection (DPD)
VPN Pass-through
VPN Wizard
mOTP
Supports 50 SSL VPN Tunnels

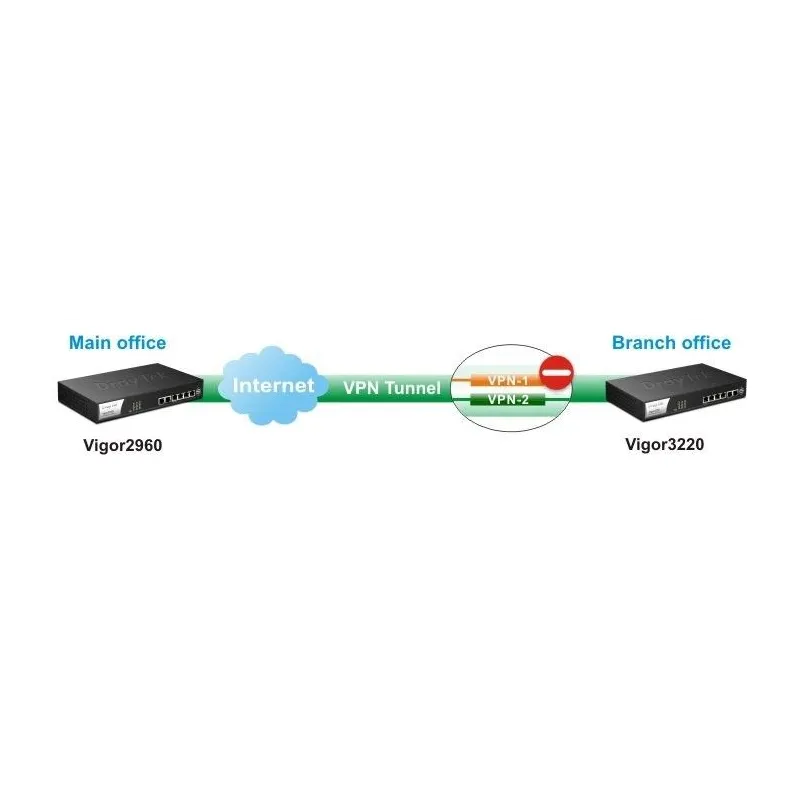

VPN Trunk: VPN Backup and Load Balance
|

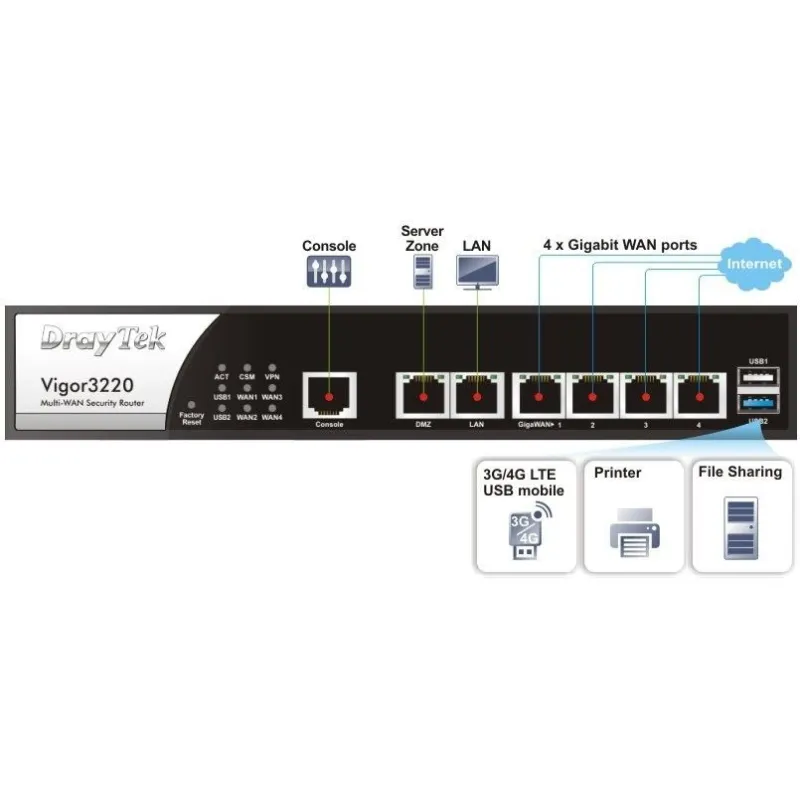

Hardware Interface
| 4 x 10/100/1000Base-Tx WAN Port, RJ-45
1 x 10/100/1000Base-Tx LAN Switch, RJ-45
1 x 10/100/1000Base-Tx DMZ Port, RJ-45
2 x USB Host (USB1 is 2.0 and USB2 is 3.0)
2 x Detachable Antennas (n Model)
1 x Wireless On/ Off/ WPS Button (n Model)
1 x Console Port, RJ-45
1 x Factory Reset Button
x 10/100/1000Base-Tx WAN Port, RJ-45
|
รับประกัน | สินค้ารับประกัน 1 ปี |
|
