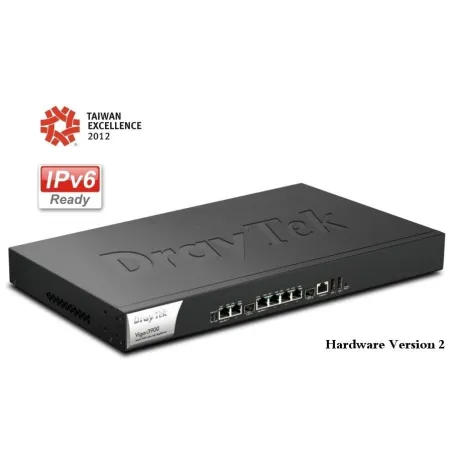

DrayTek Vigor3900 Product Specification |
Overview | DrayTek Vigor3900 Quad-Wan Load-balance VPN Router, Internet 4 เส้น, NAT 120,000 Session, รองรับความเร็ว Internet 950Mbps VPN IPSec 500 Tunnels Throughput 900Mbps, 100 SSL VPN Throughput 400Mbps, Firewall, QOS, VLAN, รองรับ 4G LTE USB Modem |
Interface |

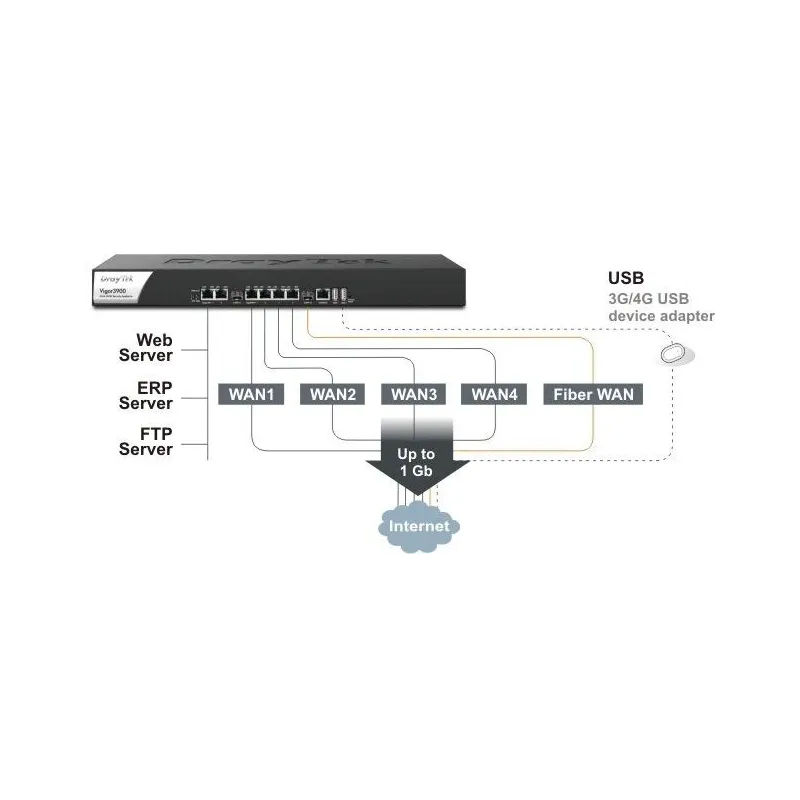

WAN Port | 4x GbE RJ-45 + 1x SFP |
LAN Port | 2x GbE RJ-45 + 1x SFP |
USB Port | 2 |
Console Port | 1x RJ-45 |
Performance |
NAT Throughput | 950 Mbps |
IPsec VPN Performance | 900 Mbps (ASE 256 bits) |
SSL VPN Performance | 400 Mbps (LAN-to-LAN) |
NAT Sessions | 120,000 |
Max. Concurrent VPN Tunnels | 500 |
Max. Concurrent OpenVPN + SSL VPN | 100 |
Internet Connection |
IPv4 | PPPoE, DHCP, Static IP, PPTP |
IPv6 | Link Local, Static, PPP, DHCP IA NA, DHCP IA PD |
Multi-VLAN | |
3G/4G/LTE WAN with USB modem | |
Outbound Load Balancing | IP-based, Session-based |
Inbound Load Balancing | |
Failover | |
Connection Detection | ARP, Ping, HTTP |
Dynamic DNS | |
DrayDDNS | |
LAN Management |
802.1q VLAN | |
Max. Number of VLAN | 50 |
DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
PPPoE Server | |
Port Mirroring | |
Local DNS Server | |
Conditional DNS Forwarding | |
Web Portal | |
Web Portal Authentication | Local User Profile, Guest Profile, RADIUS, LDAP, SMS PIN |
Networking |
Static Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing |
Dynamic Routing | RIPv2, OSPFv2, BGP |
Policy-based Routing | Protocol, IP Address, Port, Domain, Country |

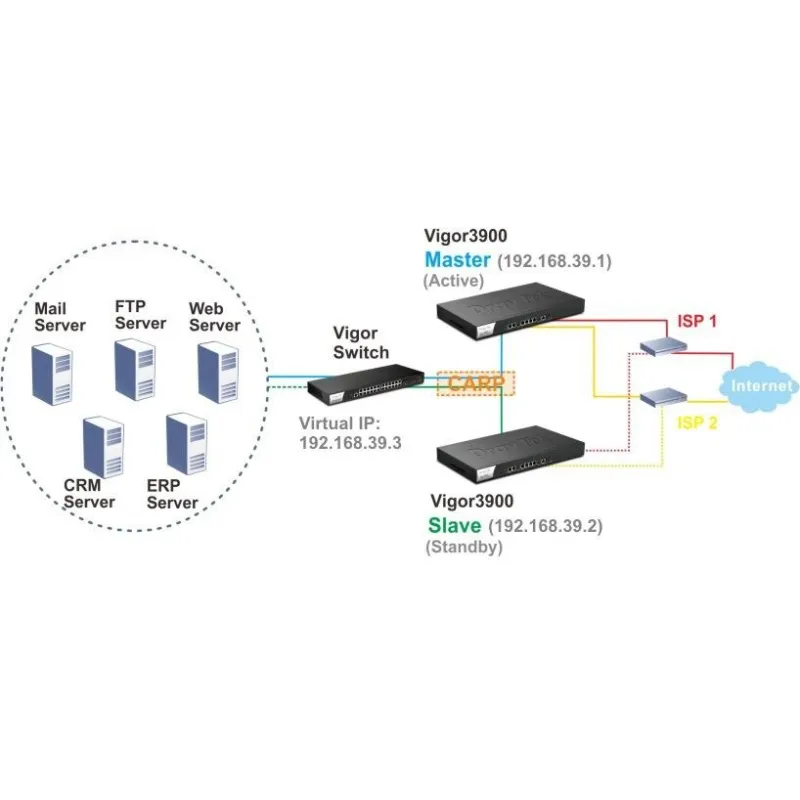

High Availability | Active-Standby, Hot-Standby |
DNS Security (DNSSEC) | |
GVRP | |
Proxy | IGMP, LAN ARP, WAN ARP |
SMB File Sharing | (Requires external storage) |

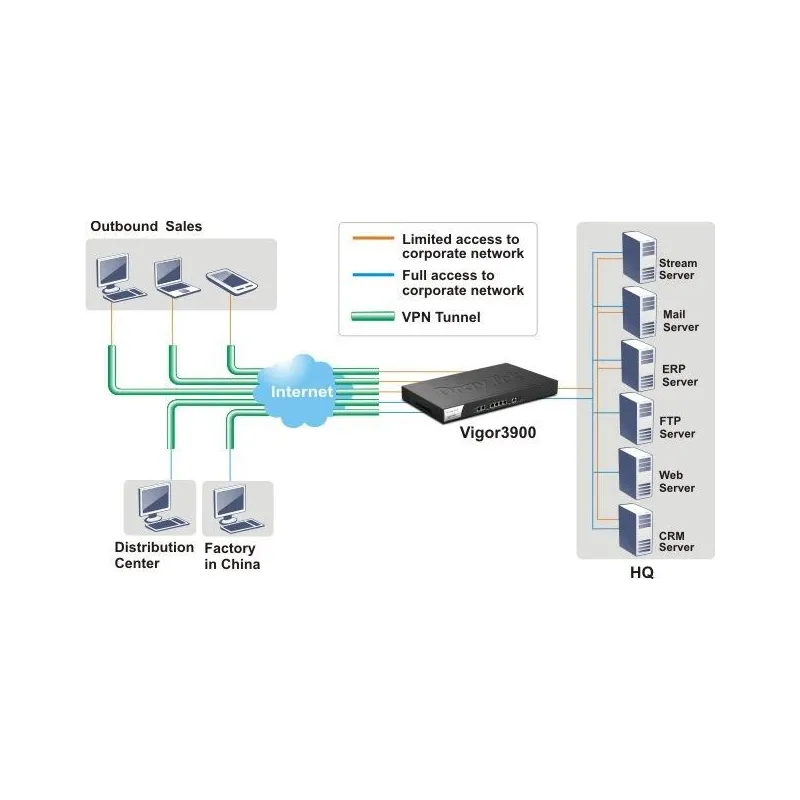

VPN |

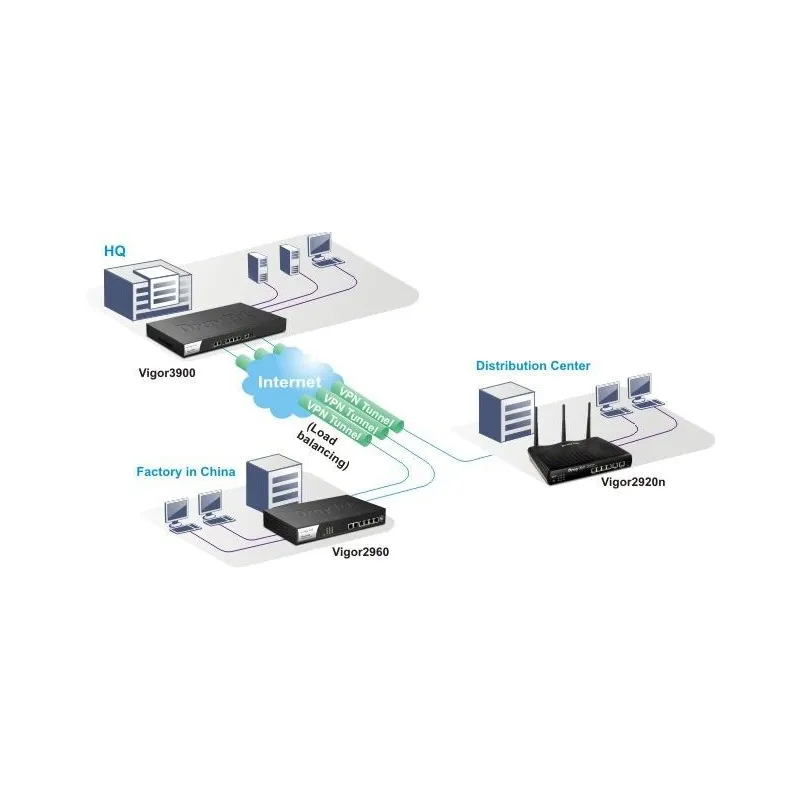

LAN-to-LAN | |
Remote Dial-In (Teleworker-to-LAN) | |
Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN |
User Authentication | Local, RADIUS, LDAP, mOTP |
IKE Authentication | Pre-Shared Key, X.509 |
IPsec Authentication | SHA-1, SHA-2/256, MD5 |
VPN Redundancy | Load Balancing, Failover |
NAT-Traversal (NAT-T) | |
Firewall & Content Filtering |
NAT | Port Redirection, DMZ Host, UPnP |
ALG (Application Layer Gateway) | SIP, FTP, H.323 |
VPN Pass-Through | PPTP, L2TP, IPsec |
IP-based Firewall Policy | |
Content Filtering | Application, URL Keyword, File Extension, Web Category*, QQ Filter (*: subscription required) |
DoS Attack Defense | |
Bandwidth Management |
IP-based Bandwidth Limit | |
IP-based Session Limit | |
QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
Hardware QoS | |
VoIP Prioritization | |
Management |
Local Service | HTTP, HTTPS, Telnet, SSH, FTP, SAMBA, TR-069 |
Config File Export & Import | |
Firmware Upgrade | TFTP, HTTP, TR-069 |
2-Level Administration Privilege | |
Access Control | Access List, Brute Force Protection (Fail to Ban), Access Barrier |
Syslog | |
Notification Alert | SMS, E-mail |
SNMP | v2, v2c, v3 |
Managed by VigorACS | |
Central AP Management | 50 VigorAP |
Central Switch Management | 20 VigorSwitch |
Central VPN Management | 16 VPN |
Physical |
Rack Mountable | Mouting Kit Included |
Dimension | 443 mm x 285 mm x 45 mm |
Weight | 2.86 kg |
Max. Power Consumption | 20 watts |
Operating Temperature | 0 to 45°C |
Storage Temperature | -10 to 70°C |
Operating Humidity (non-condensing) | 10 to 90% |
รับประกัน | 2 ปี |
