DrayTek VigorBX2000 Product Specification
|
|
Overview
|

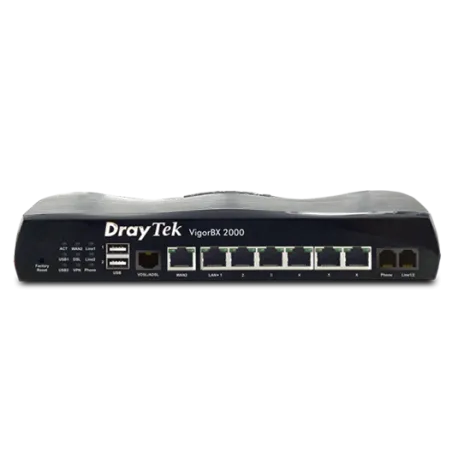

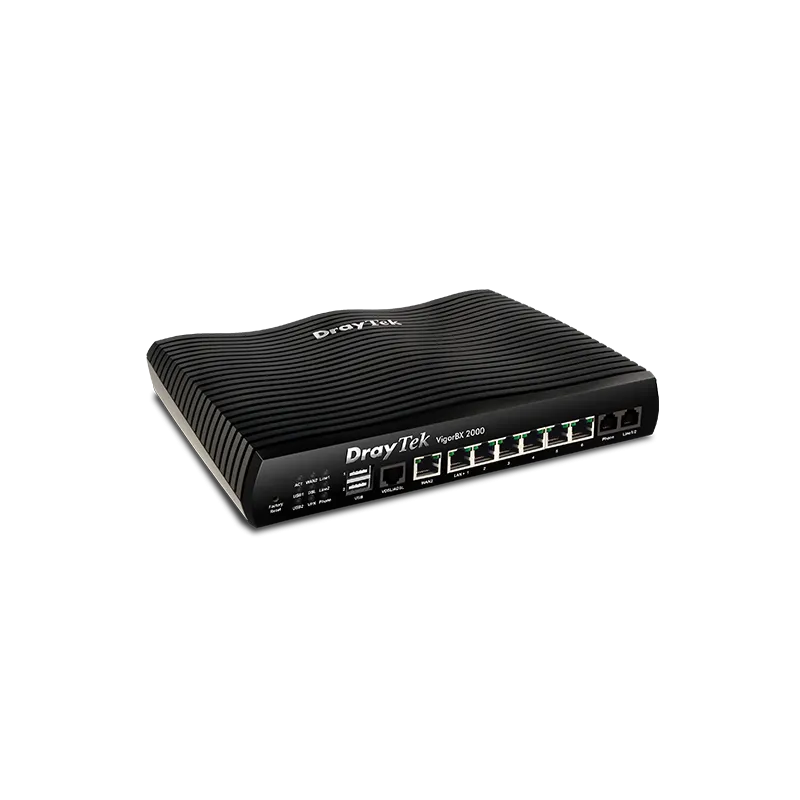

DrayTek VigorBX2000 Dual-WAN Load Balance VPN Router, VPN 32 Tunnel 50K NAT Session 50 Users
รองรับการทำตู้สาขา IP-PBX
Port FXO x 2 (เชื่อมต่อเบอร์ภายนอก)
Port FXS x 1
เบอร์ภายใน 50 Extension
Firewall, QOS, VLAN, รองรับ 4G LTE USB Modem
|
Interface
|
|
WAN Interface
|
1x RJ-11 for ADSL2/VDSL2
1x 1000Base-TX Ethernet, RJ-45
|
|
LAN Interface
|
6x 10/100/1000Base-TX Ethernet, RJ-45
|
|
Voice Interface
|
2x FXO RJ-11 (with Y-cable)
1x FXS RJ-11
|
|
USB Port
|
2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
|
Performance
|
|
NAT Throughput
|
300 Mbps
|
|
IPsec VPN Performance
|
50 Mbps (AES 256 bits)
|
|
SSL VPN Performance
|
25 Mbps
|
|
Max. Number of NAT Sessions
|
50,000
|
|
Max. Concurrent VPN Tunnels
|
32
|
|
Max. Concurrent SSL VPN
|
16
|
IP-PBX
|
|
Extensions
|
50
|
|
Concurrent Calls
|
20
|
|
Trunks
|
12 SIP Trunk + 2 PSTN Trunk + 8 Custom Trunk
|
|
WAN IP White List
|
|
|
Automatic Block Extension for Wrong Password
|
|
|
Dial Plan
|
60 Digit Map, 100 Speed Dial, 20 Call Barring
|
|
Call Features
|
Call Waiting, Call Transfer, Scheduled DND, Hotline
|
|
Hunt Group
|
20
|
|
Voice Mail
|
Send by Email, Save to USB
|
|
Auto Attendant
|
|
|
Customer Survey
|
|
|
Virutal Fax
|
|
|
PBX Status
|
1000 Call Detail Records, 1000 Fax Detail Records, 50 Extension Monitor
|
|
Voice Codec
|
G.711MU, G.711A, G.729A/B, G.726_32
|
|
Caller ID
|
FSK_ETSI, FSK_BELLCORE, DTMF
|
VDSL/ADSL
|
|
VDSL Standards
|
ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
|
|
VDSL2 Profile
|
8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
|
|
VDSL Band Plan
|
997
|
|
G.Vectoring
|
|
|
ADSL Standards
|
ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
|
|
ADSL2 Standards
|
ITU-T G.992.3, G.992.3 Annex J
|
|
ADSL2+ Standards
|
ITU-T G.992.5, G.992.5 Annex M
|
|
DSL Forum
|
WT-114, TR-048/67, TR-100
|
Internet Connection
|
|
IPv4
|
PPPoE, DHCP, Static IP, PPTP/L2TP
|
|
IPv6
|
PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
|
|
Multi-VLAN/PVC
|
|
|
3G/4G/LTE WAN with USB modem
|
|
|
Load Balancing
|
IP-based, Session-based
|
|
WAN Active on Demand
|
Link Failure, Traffic Threshold
|
|
Connection Detection
|
ARP, Ping
|
|
WAN Data Budget
|
|
|
Dynamic DNS
|
|
LAN Management
|
|
VLAN
|
802.1q Tag-based, Port-based
|
|
Max. Number of VLAN
|
8
|
|
Number of LAN Subnet
|
6
|
|
DHCP Server
|
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
|
|
Wired 802.1x Authentication
|
|
|
Local DNS Server
|
|
|
Conditional DNS Forwarding
|
|
|
Web Portal
|
|
Networking
|
|
Routing
|
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP
|
|
Policy-based Routing
|
Protocol, IP Address, Port, Domain
|
|
DNS Security (DNSSEC)
|
|
|
Multicast
|
IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
|
|
SMB File Sharing
|
Requires external storage
|
VPN
|
|
LAN-to-LAN
|
|
|
Teleworker-to-LAN
|
|
|
Protocols
|
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP
|
|
User Authentication
|
Local, RADIUS, LDAP, TACACS+, mOTP
|
|
IKE Authentication
|
Pre-Shared Key, X.509
|
|
IPsec Authentication
|
SHA1, MD5
|
|
VPN Redundancy
|
Load Balancing, Failover
|
|
NAT-Traversal (NAT-T)
|
|
Firewall & Content Filtering
|
|
NAT
|
Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
|
|
ALG (Application Layer Gateway)
|
SIP, RTSP, FTP, H.323
|
|
VPN Pass-Through
|
PPTP, L2TP, IPsec
|
|
IP-based Firewall Policy
|
|
|
Content Filtering
|
Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
|
|
DoS Attack Defense
|
|
Bandwidth Management
|
|
IP-based Bandwidth Limit
|
|
|
IP-based Session Limit
|
|
|
QoS (Quality of Service)
|
TOS, DSCP, 802.1p, IP Address, Port, Application
|
|
VoIP Prioritization
|
|
Management
|
|
Local Service
|
HTTP, HTTPS, Telnet, SSH, TR-069
|
|
Config File Export & Import
|
|
|
Firmware Upgrade
|
TFTP, HTTP, TR-069
|
|
2-Level Administration Privilege
|
|
|
Access Control
|
Access List
|
|
Syslog
|
|
|
Notification Alert
|
SMS, E-mail
|
|
SNMP
|
v2, v2c, v3
|
Physical
|
|
Power Supply
|
DC 12V @ 2A
|
|
Max. Power Consumption
|
18 watts
|
|
Dimension
|
241mm x 166mm x 46mm
|
|
Weight
|
530g
|
|
Operating Temperature
|
0 to 45°C
|
|
Storage Temperature
|
-25 to 70°C
|
|
Operating Humidity (non-condensing)
|
10 to 90%
|
|
รับประกัน
|
2 ปี
|
